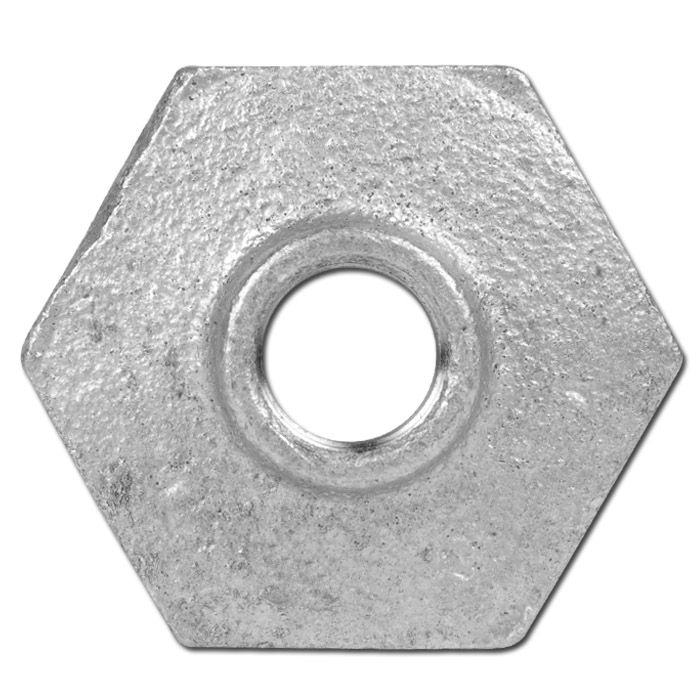

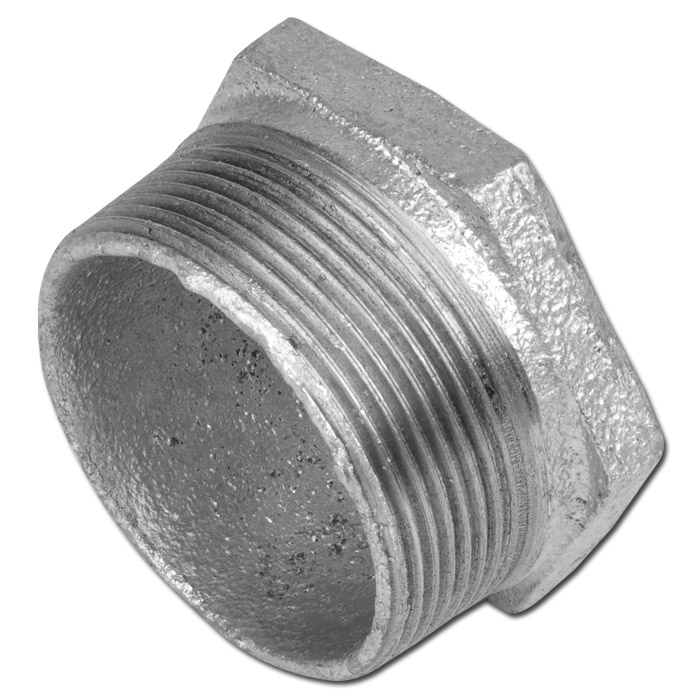

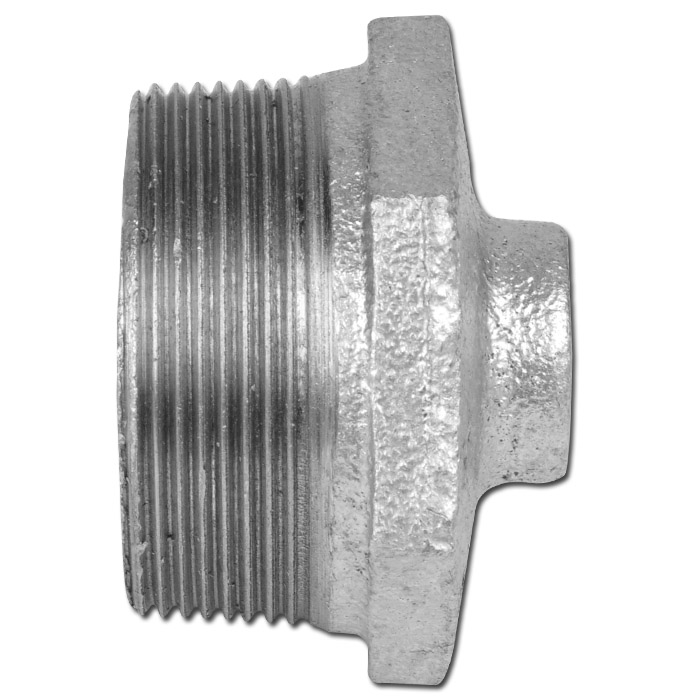

Reduction nipple "241" - IT 1 / 2 to 2 1 / 2 "- OT 2 to 4" - EN 10242 - Standard galvanized - SW 65 to 120mm

Item No.: 961324130000
0 %  (0)
Brief Description
  • Malleable iron reduction nipple from our range of products for building equipment, utility systems, industrial systems and automation
  • According to international malleable iron fittings standard ISO 49 and EN 10242. Both standards are similar.
  • Malleable iron fittings are made of decarburization annealed malleable variety of EN-5-GJMW400


Detailed Description

Product Description
  • Malleable iron reduction nipple from our range of products for building equipment, utility systems, industrial systems and automation
  • According to international malleable iron fittings standard ISO 49 and EN 10242. Both standards are similar.
  • Malleable iron fittings are made of decarburization annealed malleable variety of EN-5-GJMW400
Description
  • Product features
  • 1 thread - external thread
  • 2 thread - internal thread
  • available in S = non-galvanized and V = galvanized

Version

S / V
Thread 1
Thread 2

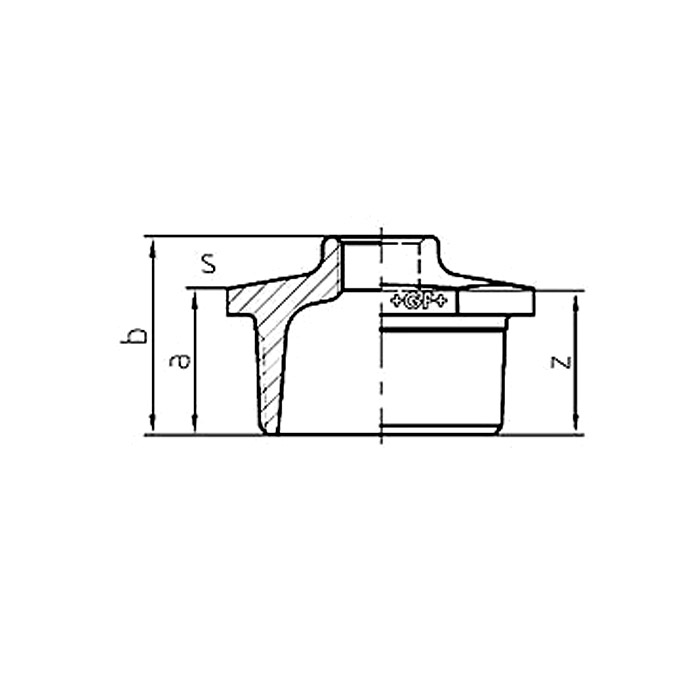

Measure a
b
Opening widths
Measure z

Reset all filters

S / V Thread 1 Thread 2 Measure a b Opening widths Measure z Priceincl. 19% VATItem No.
x  S  2"  1/2"  35 mm  48 mm  65 mm  35 mm € 8,35
£ 7,15		 € 9,94
£ 8,50		 961315350803
x  V  2"  1/2"  35 mm  48 mm  65 mm  35 mm € 11,10
£ 9,50		 € 13,21
£ 11,30		 961335350803
x  S  2"  3/4"  35 mm  48 mm  65 mm  33 mm € 8,15
£ 6,97		 € 9,70
£ 8,30		 961315350804
x  V  2"  3/4"  35 mm  48 mm  65 mm  33 mm € 10,10
£ 8,64		 € 12,02
£ 10,28		 961335350804
x  S  2 1/2"  1"  40 mm  54 mm  80 mm  37 mm € 14,40
£ 12,32		 € 17,14
£ 14,66		 961315400905
x  S  2 1/2"  1 1/4"  40 mm  54 mm  80 mm  37 mm € 15,30
£ 13,09		 € 18,21
£ 15,58		 961315400906
x  V  2 1/2"  1"  40 mm  54 mm  80 mm  37 mm € 16,40
£ 14,03		 € 19,52
£ 16,70		 961335400905
x  S  3"  1"  44 mm  59 mm  95 mm  42 mm € 20,45
£ 17,50		 € 24,34
£ 20,82		 961315441005
x  V  2 1/2"  1 1/4"  40 mm  54 mm  80 mm  37 mm € 18,80
£ 16,09		 € 22,37
£ 19,14		 961335400906
x  S  3"  1 1/4"  44 mm  59 mm  95 mm  40 mm € 20,45
£ 17,50		 € 24,34
£ 20,82		 961315441006
x  V  3"  1"  44 mm  59 mm  95 mm  42 mm € 25,50
£ 21,82		 € 30,34
£ 25,97		 961335441005
x  S  3"  1 1/2"  44 mm  59 mm  95 mm  40 mm € 19,05
£ 16,30		 € 22,67
£ 19,40		 961315441007
x  V  3"  1 1/4"  44 mm  59 mm  95 mm  40 mm € 25,50
£ 21,82		 € 30,34
£ 25,97		 961335441006
x  S  4"  2"  51 mm  69 mm  120 mm  45 mm € 43,80
£ 37,48		 € 52,12
£ 44,60		 961315511208
x  V  3"  1 1/2"  44 mm  59 mm  95 mm  40 mm € 23,55
£ 20,15		 € 28,02
£ 23,98		 961335441007
x  S  4"  2 1/2"  51 mm  69 mm  120 mm  42 mm € 30,25
£ 25,88		 € 36,00
£ 30,80		 961315511209
x  V  4"  2"  51 mm  59 mm  120 mm  45 mm € 52,25
£ 44,71		 € 62,18
£ 53,21		 961335511208
x  V  4"  2 1/2"  51 mm  59 mm  120 mm  42 mm € 37,95
£ 32,47		 € 45,16
£ 38,64		 961335511209
