Product Description

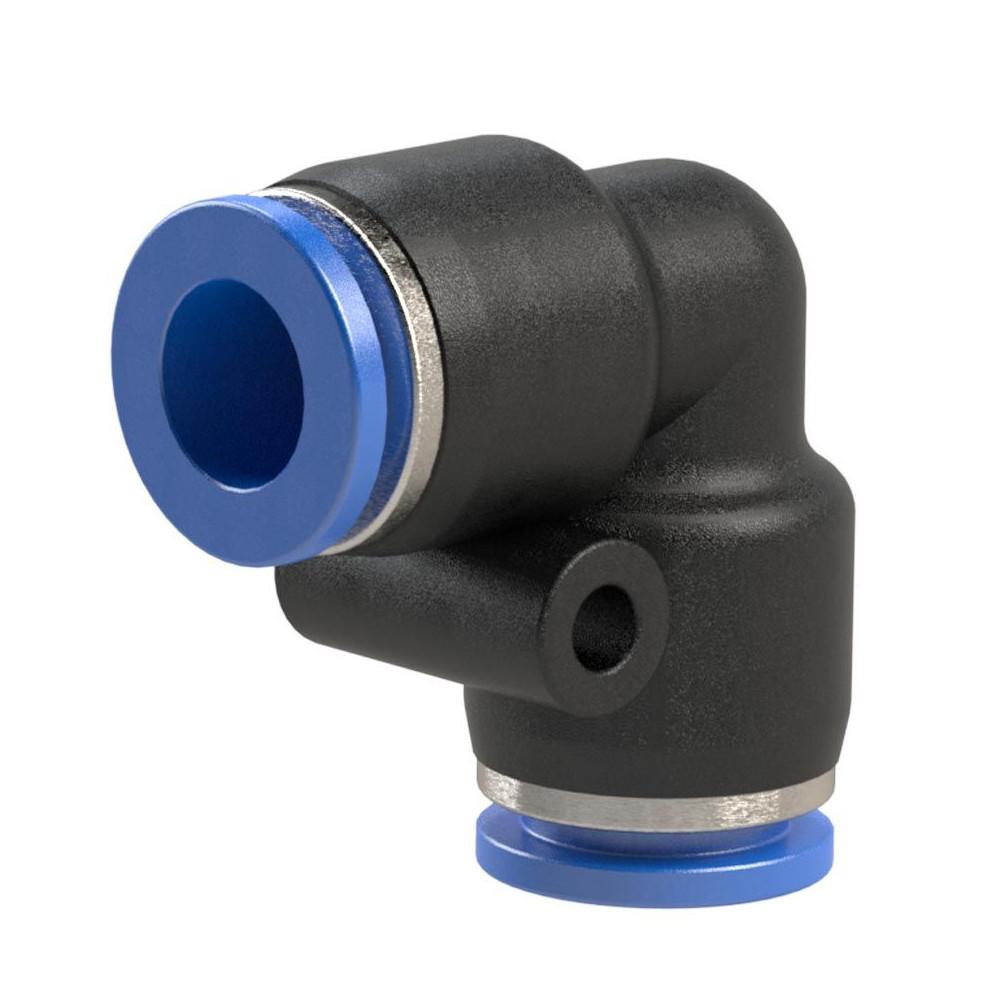

- The L-plug connector is suitable for right-angled connection and guidance of hoses in pneumatic systems with limited installation space.
- The "Blue Series" L-plug connector is used for right-angle connections of hoses in pneumatic systems.
- It enables space-saving hose routing in confined installation conditions and ensures a reliable connection.
- The working pressure range is −0.95 to 10 bar, with a maximum working pressure of 15 bar for short periods.
- Temperature range - -20 to 80 °C
- Medium - Compressed air
- Sealing material - NBR
- Series - Blue series
- Working pressure - -0.95 to 10 bar
- Maximum working pressure for short periods - 15 bar
- Material - plastic, nickel-plated brass
- Area of application - Compressed air systems, automotive, packaging industry, vacuum
- Loosening ring - plastic
- Recommended hose - PU, PA (nylon)
- for hose outer diameter - 4 to 16 mm
