Product Description

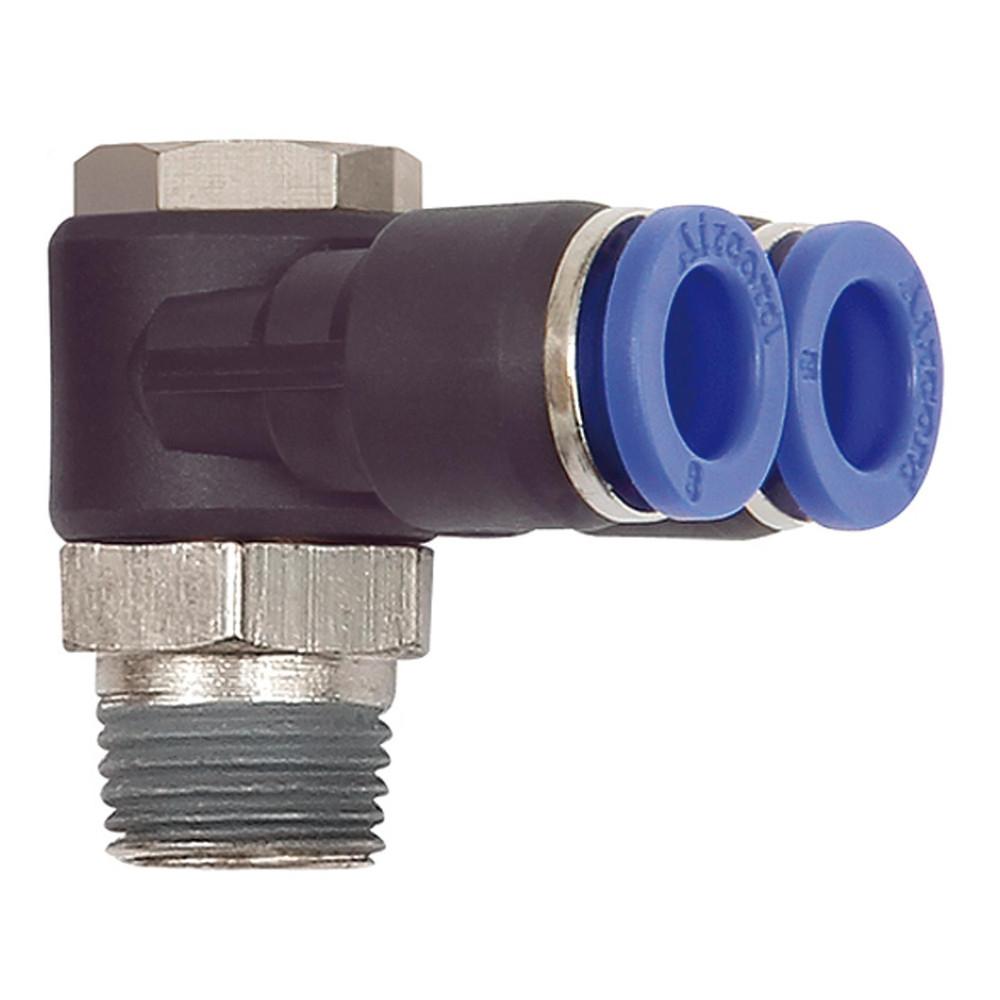

- The Y-angle plug-in screw connection is suitable for space-saving distribution and right-angled routing of compressed air hoses in pneumatic systems.
- The Y-angle plug-in screw connection from the "Blue Series" is used for splitting and right-angled routing of compressed air hoses in pneumatic applications.
- It is rotatable and made of plastic with nickel-plated brass threaded components.
- The permissible working pressure is −0.95 to 10 bar, the maximum working pressure is up to 15 bar for short periods.
- Temperature range - -20 to 80 °C
- Medium - Compressed air
- Sealing material - NBR
- Series - Blue series
- Working pressure - -0.95 to 10 bar
- Maximum working pressure for short periods - 15 bar
- Material - plastic, nickel-plated brass
- Area of application - Compressed air systems, automotive, packaging industry, vacuum
- Loosening ring - plastic
- Recommended hose - PU, PA (nylon)
- Thread - R 1/8 male, R 1/4 male, R 3/8 male, R 1/2 male
- for hose outer diameter - 6 to 12 mm
