Product Description

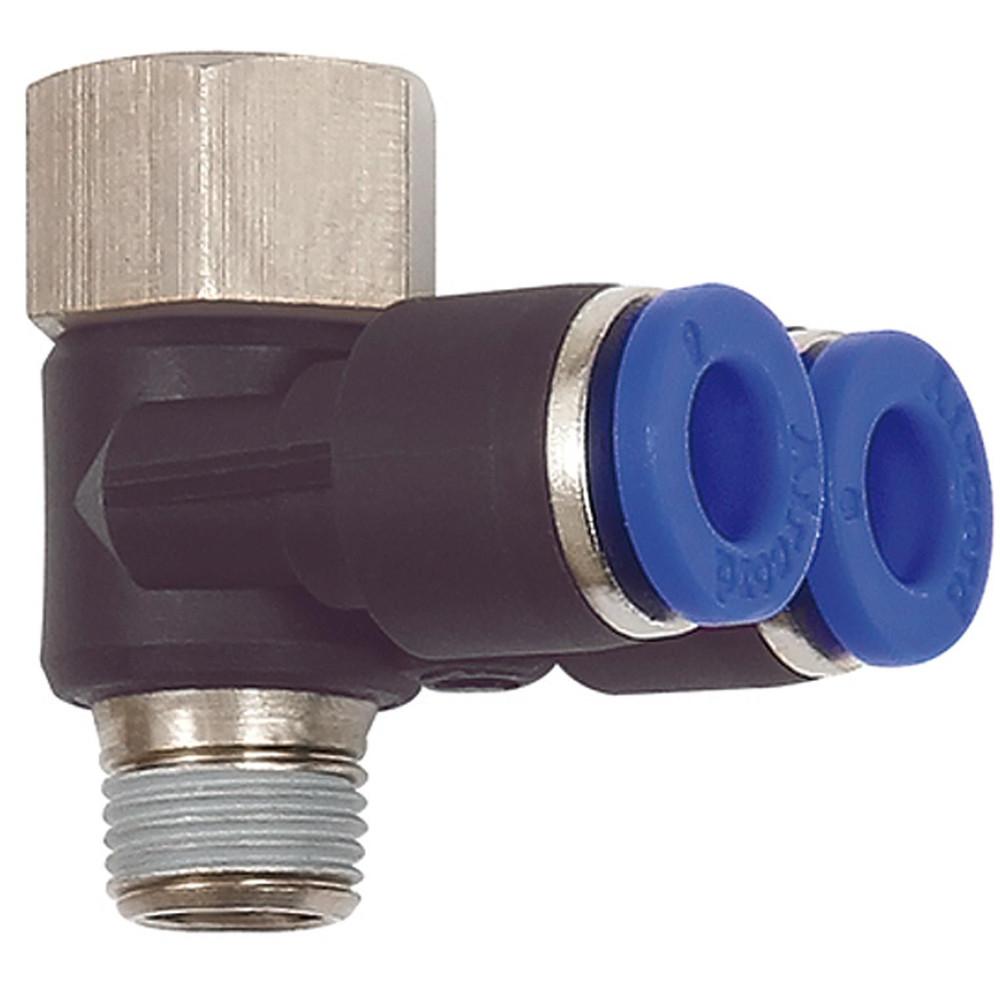

- The Y-angle plug-in screw connection is suitable for space-saving branching and deflection of compressed air hoses in pneumatic systems with combined G internal thread and R external thread.
- The Y-angle plug-in screw connection from the "Blue Series" is used for right-angled branching and routing of compressed air hoses in pneumatic systems.
- It is rotatable and has a G internal thread and an R external thread made of brass threaded components with a plastic body.
- The permissible working pressure is −0.95 to 10 bar, the maximum working pressure is 15 bar for short periods.
- Temperature range - -20 to 80 °C
- Medium - Compressed air
- Sealing material - NBR
- Series - Blue series
- Working pressure - -0.95 to 10 bar
- Maximum working pressure for short periods - 15 bar
- Material - plastic, nickel-plated brass
- Area of application - Compressed air systems, automotive, packaging industry, vacuum
- Loosening ring - plastic
- Recommended hose - PU, PA (nylon)
- Internal thread - G 1/8, G 1/4, G 3/8, G 1/2
- External thread - R 1/8, R 1/4, R 3/8, R 1/2
- for hose outer diameter - 6 to 12 mm
