6 mm

Product Description
  • The L-connector is suitable for connecting compressed air hoses at right angles in compact pneumatic applications.
Description

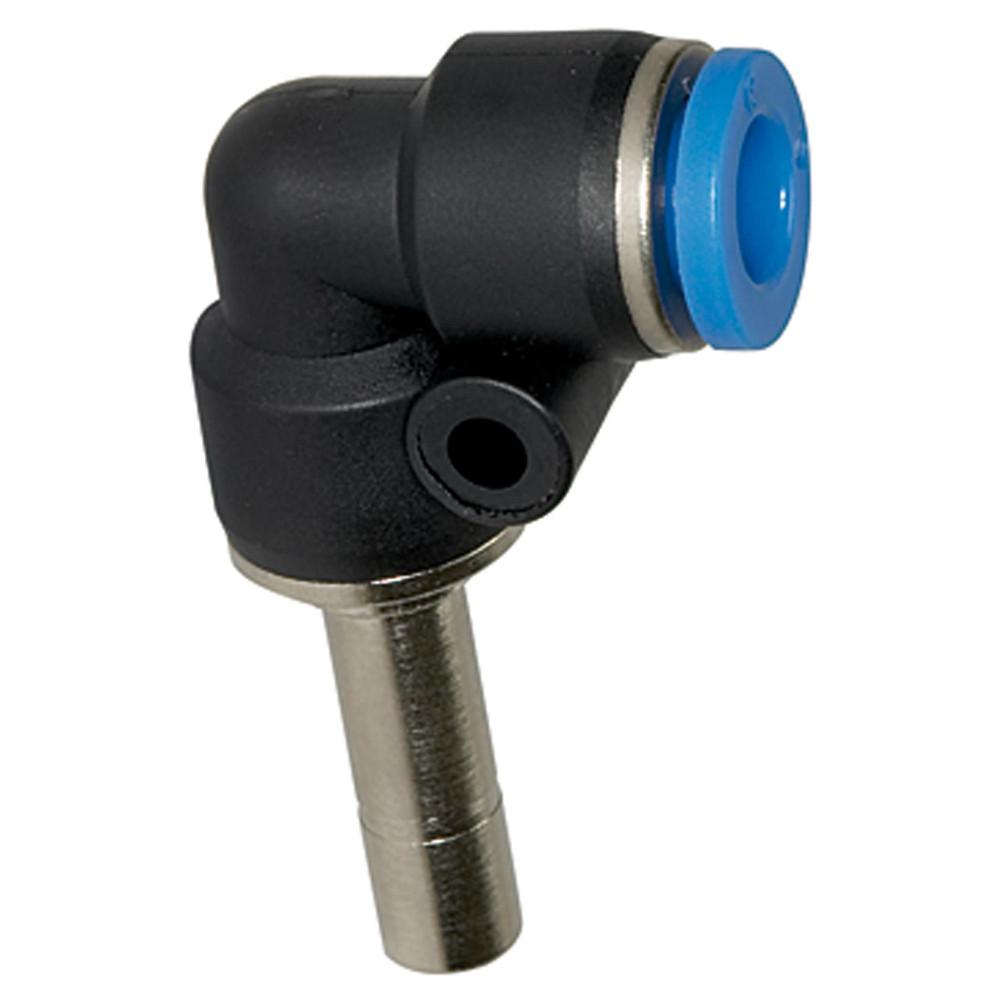

  • The "Blue Series" mini L-connector with plug nipple is a compact pneumatic quick connector for connecting compressed air hoses at right angles.
  • It is designed for an operating pressure of up to 10 bar and enables simple, secure installation without additional tools.
  • The combination of plastic and nickel-plated brass ensures a robust and durable design in space-saving applications.
Technical Data
  • Maximum temperature range: -60 °C
  • Medium - Compressed air
  • Sealing material - NBR
  • Series - Blue Series mini
  • Working pressure - -0.95 to 10 bar
  • Material - plastic, nickel-plated brass
  • Area of application - Compressed air systems, automotive, packaging industry, vacuum
  • Loosening ring - plastic
  • Recommended hose - PU, PA (nylon)
  • for hose outer diameter - 3 to 6 mm
  • Plug nipples - 3 to 6 mm
Versions: (3)
Item No.: 973010910400
Type
TypePLS-33
Hose outer diameter3 mm
Plug nipple3 mm
4,91
Price incl. VAT
plus 29,00 shipping costs
Delivery time 7-10 working days
Item No.: 973010910500
Type
TypePLS-44
Hose outer diameter4 mm
Plug nipple4 mm
4,19
Price incl. VAT
plus 29,00 shipping costs
Delivery time 7-10 working days
Item No.: 973010910600
Type
TypePLS-66
Hose outer diameter6 mm
Plug nipple6 mm
4,60
Price incl. VAT
plus 29,00 shipping costs
Delivery time 7-10 working days
