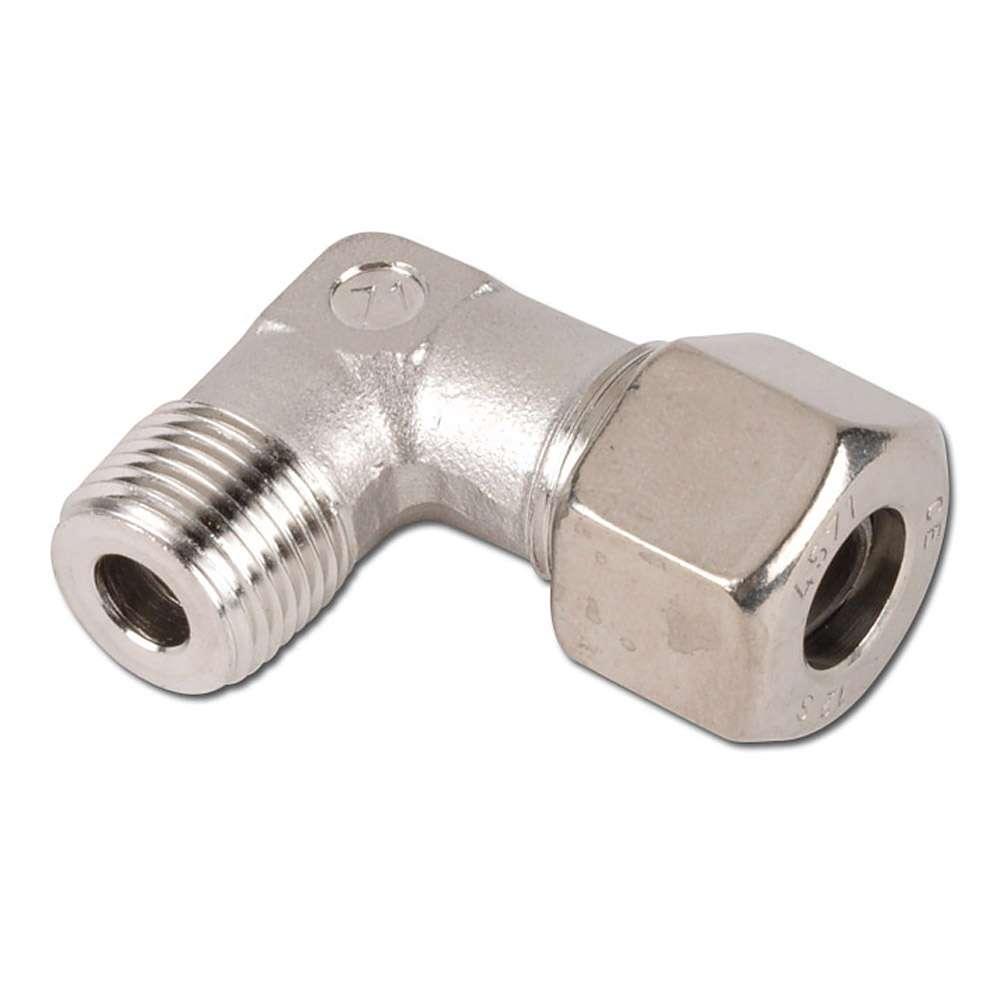

90 ° screw-in - VA - metric - Version S
| € 82,36 |
| Price incl. VAT |
Ex stock within 4 days deliverable
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
858256221600
Type
| Pipe Ø mm | 16 |
| Thread | M22x1,5 K |
| Pressure | 43 |
| L3 mm | 24.5 |
| L4 mm | 32 |
| L5 | 14 |
| i mm | 24 |
| SW mm | 30 |
| S3 mm |
Product Description
- to secure right-angled connection of seamless pipes on existing components with internal threads
- Main field of hydraulics and high pressure water
- Screw in thread: metric, conical
- Cutting fitting
- Material: Stainless Steel
- according to DIN 3903
- Seal type C according to DIN 3852
- Execution: heavy
- for pipe diameters 6 - 16 mm
- Nominal pressure PN 400
- Widths: 17 - 30 mm
Versions: (6)
Narrow down your selection
Pipe Ø mm
Thread
Pressure
L3 mm
L4 mm
L5
i mm
SW mm
S3 mm
| Article No. | Pipe Ø mm | Thread | Pressure | L3 mm | L4 mm | L5 | i mm | SW mm | S3 mm | Price incl. VAT | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
858256120600 | 6 | M12x1,5 K | 31 | 16 | 26 | 12 | 12 | 17 |
|
|||||
|
|||||||||||||||
|
|
858256140800 | 8 | M14x1,5 K | 32 | 17 | 27 | 12 | 14 | 19 |
|
|||||
|
|||||||||||||||
|
|
858256161000 | 10 | M16x1,5 K | 34 | 17.5 | 28 | 12 | 17 | 22 |
|
|||||
|
|||||||||||||||
|
|
858256181200 | 12 | M18x1,5 K | 38 | 21.5 | 28 | 12 | 17 | 24 |
|
|||||
|
|||||||||||||||
|
|
858256201400 | 14 | M20x1,5 K | 40 | 22 | 32 | 14 | 19 | 27 |
|
|||||
|
|||||||||||||||
|
|
858256221600 | 16 | M22x1,5 K | 43 | 24.5 | 32 | 14 | 24 | 30 |
|
|||||
|
|||||||||||||||
