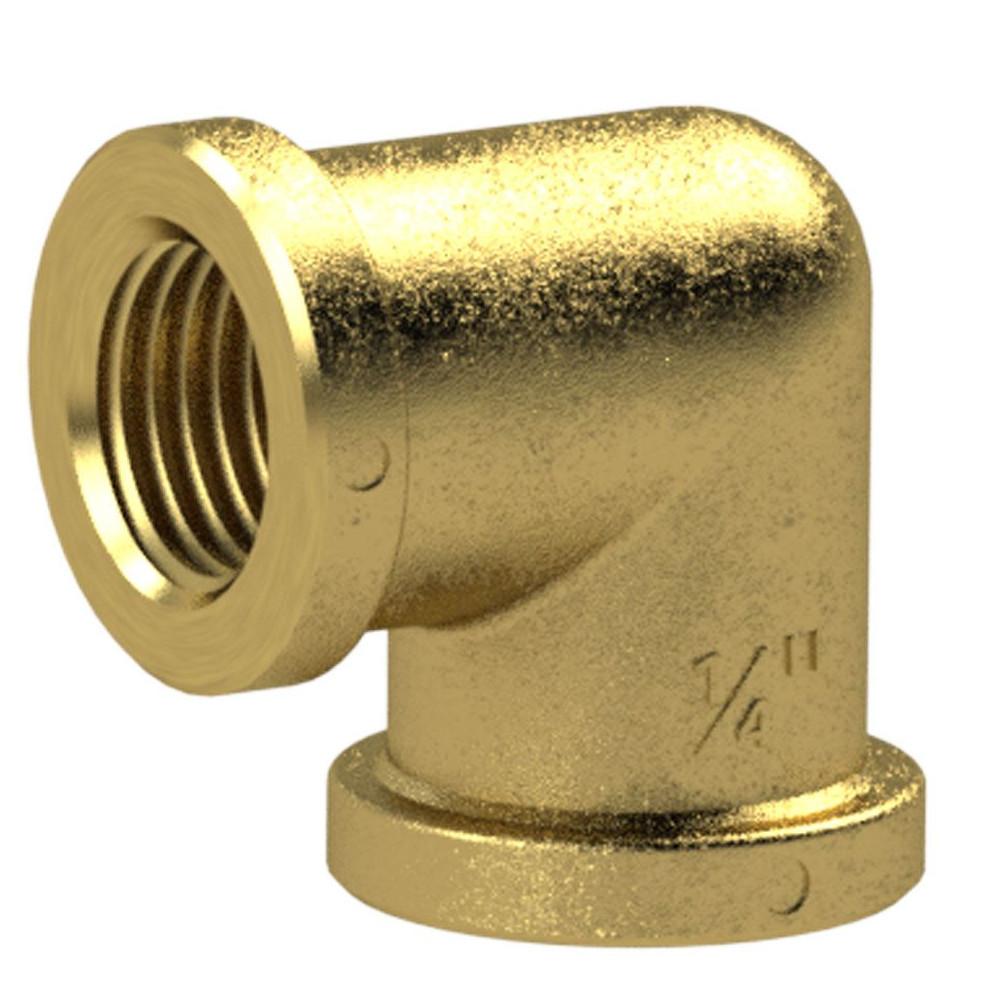

Product Description
- The elbow is suitable for 90° deflection of media flows in pipelines of compressed air, water and industrial systems.
- The elbow is a 90° pipe connector made of bright brass with internal thread on both sides according to G for changing the direction of pipes.
- It is available in thread sizes from G 1/4 to G 2 and enables space-saving deflection of media flows in pipe and line systems.
- The maximum operating pressure is 16 bar and the elbow is designed for operating temperatures up to 120 °C.
- The elbow is intended for use in compressed air, water and general industrial piping systems.
- Material – bright brass
- Thread – 2 x G internal thread
- Operating pressure – max. 16 bar
- Operating temperature – max. 120 °C
- Price per piece
