Product Description

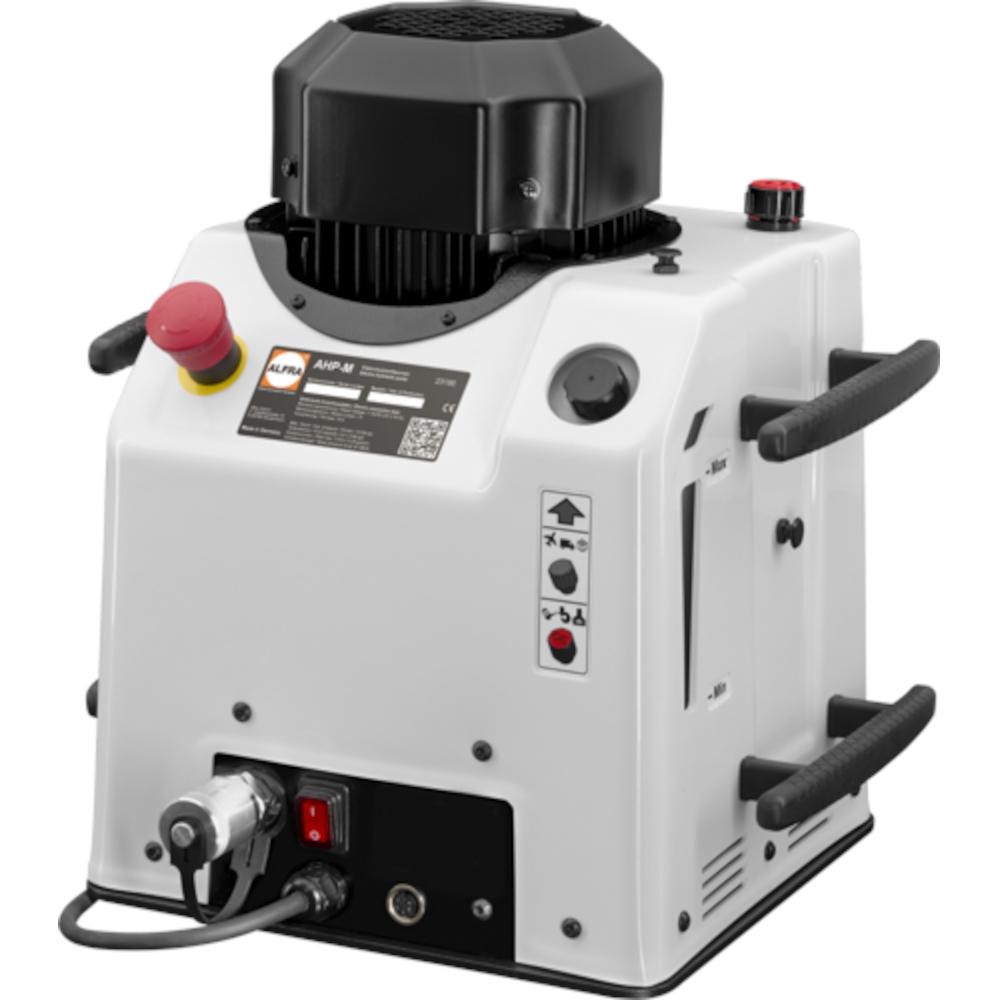

- The ALFRA AHP-M electro-hydraulic pump is a high-performance drive unit for the APS 70 and APS 120 hydraulic punching frames.
- With a working pressure of up to 700 bar and a maximum flow rate of 1.1 litres per minute, the unit is also suitable for demanding applications and continuous operation.
- An additional fan ensures reliable cooling and protects the hydraulic pump from overheating, even at high ambient temperatures. With an operating noise level of just 67 dB(A), the AHP-M operates significantly more quietly than many comparable pumps.
- To ensure convenient and safe transport, the unit is fitted with extra-large, non-slip handles. The handles also serve as a practical way of winding up the power cable. This allows the pump to be neatly stowed away and easily transported to wherever it is needed.
- Max. pressure – 700 bar
- Max. flow rate – 1.0 l/min.
- Tank capacity – 2.5 l
- Rated power – 1.1 kW
- Rated current at 700 bar – 7 A
- Noise emission - 67 dB(A)
- Weight (excluding accessories) – 41 kg
