Item No.:
946047429322
Product Description

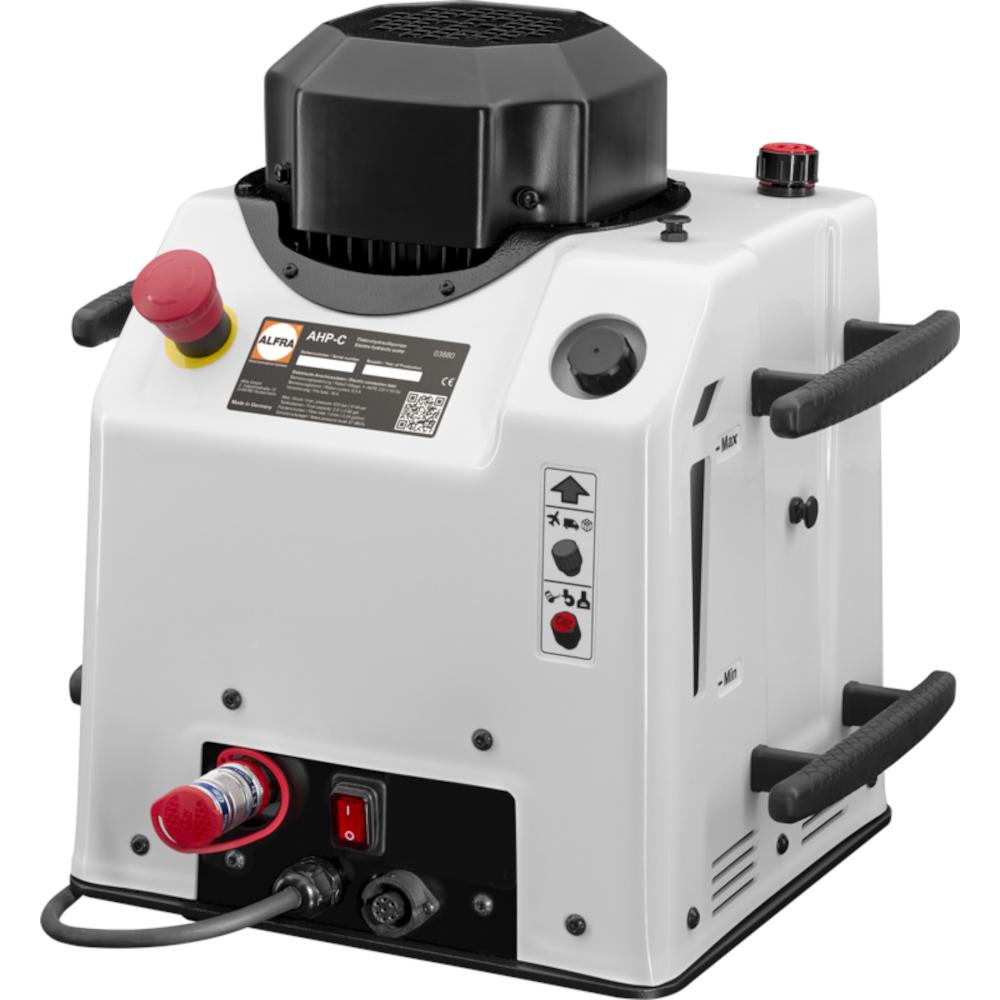

- The AHP-C is designed for demanding applications in workshops, in control cabinet construction and in industrial manufacturing. Among other things, it is used as a drive unit for semi-automatic machines for processing busbars. Thanks to its combination of high flow rate, low noise level and low-maintenance design, the pump is particularly suitable for regular professional use.
- With a flow rate of up to 1.0 litres per minute, the AHP-C is one of the most powerful pumps in the ALFRA and Rittal Automation Systems range.
- Thanks to its high power output, it is particularly suitable for driving semi-automatic machines for professional busbar machining.
- With a noise level of just 67 dB(A), the AHP-C operates significantly more quietly than many pumps with a comparable flow rate.
- The service-friendly design also allows easy access to the relevant components, thereby simplifying maintenance and servicing work.
- Product type – electro-hydraulic pump
- Maximum pressure – 630 bar
- Maximum flow rate – 1.0 l/min
- Tank capacity – 2.5 l
- Rated power – 1.1 kW
- Rated current – 6.5 A at 700 bar
- Noise emission – 67 dB(A)
- Weight – 41 kg, excluding accessories
