Item No.:
946003874000
Product Description

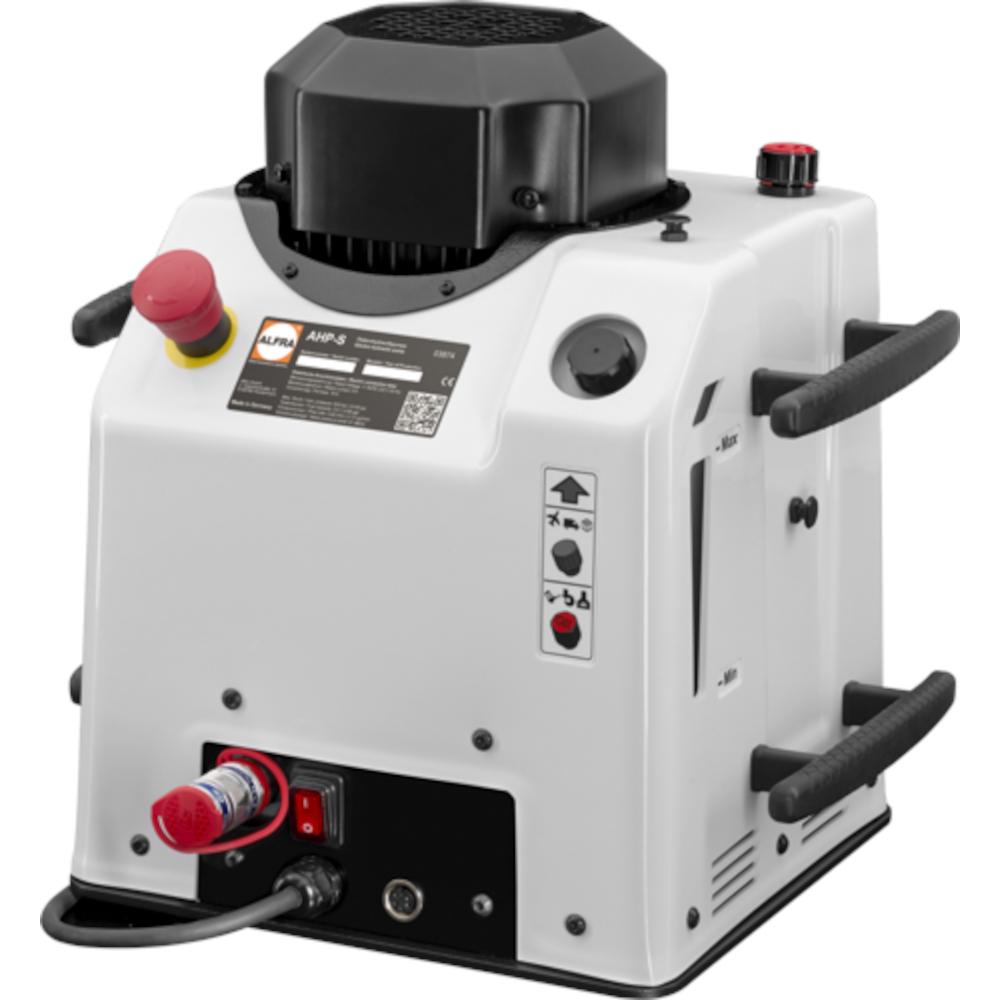

- The ALFRA AHP S electro-hydraulic pump is a high-performance, high-pressure pump designed for professional use in industry, control cabinet construction and metalworking.
- With a maximum operating pressure of 700 bar and a flow rate of 0.58 l/min, it reliably supplies a wide variety of hydraulic tools with power.
- Its compact and robust design makes the AHP S a versatile drive system for hydraulic cylinders used in sheet metal punching, busbar processing equipment, cable cutters, crimping tools and hydraulic punching frames such as the AP 250 and AP 400.
- When used in conjunction with an optional hand or foot switch, the pump is also suitable for operating the SKP-1 and SKP-1 mini hydraulic cylinders.
- The electro-hydraulic pump impresses with its high performance, reliable continuous operation and versatility in professional working environments.
- Max. pressure – 700 bar
- Max. flow rate – 0.58 l/min.
- Capacity – 3.2 l
- Working volume – 2.2 l
- Weight - 27 kg
- Power - 0.75 kW
- Current consumption – 3.26 A
- Motor speed – 2,800 rpm
