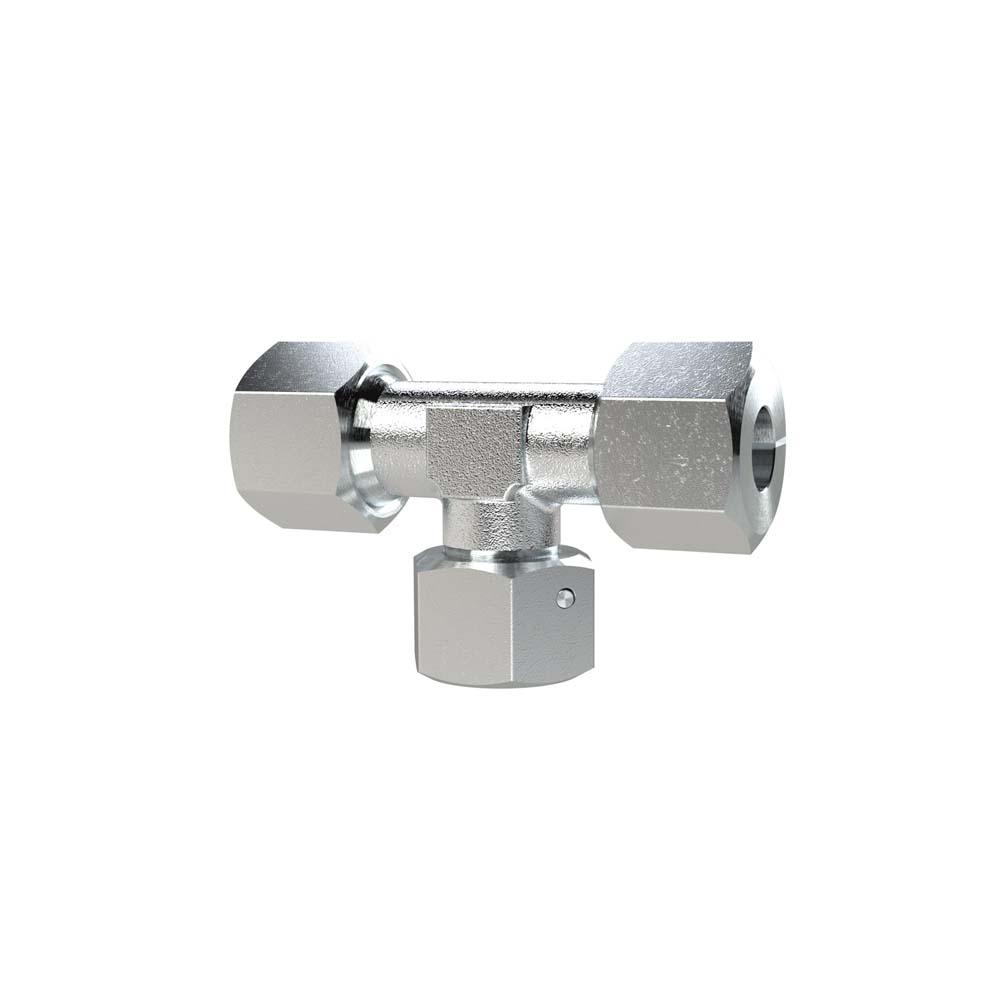

Adjustable T-fitting - Galvanized steel - 360° rotatable - PN max. 630 bar - Outer pipe Ø 8 mm
| € 11,96 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 2 - 4 working days
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
963015900863
Product Description
- The adjustable T-fitting has been specially designed for the flexible and secure connection of three lines, with the rotatable design enabling optimum alignment and easy installation even in confined or complex systems. It is used in high-pressure hydraulic systems and finds application in areas such as mechanical engineering, heavy industry and mobile hydraulic systems where high pressure loads occur and a flexible line design is required at the same time.
- The adjustable T-fitting is made of galvanised steel in accordance with DIN 2353. It can be rotated through 360°, has a sealing cone and can withstand a maximum operating pressure of 630 bar. The fitting also has an external hexagon on each socket for quick and secure installation.
- Material - galvanised steel (DIN 2353)
- Type - ETVM168SST
- Operating pressure - 630 bar
- Tube outer Ø - 8 mm
- Female nut thread - M16x1.5
- Length 1 - 64.0 mm
- Length 2 - 27.5 mm
- Width across flats 1 - 19 mm
- Width across flats 2 - 14 mm
