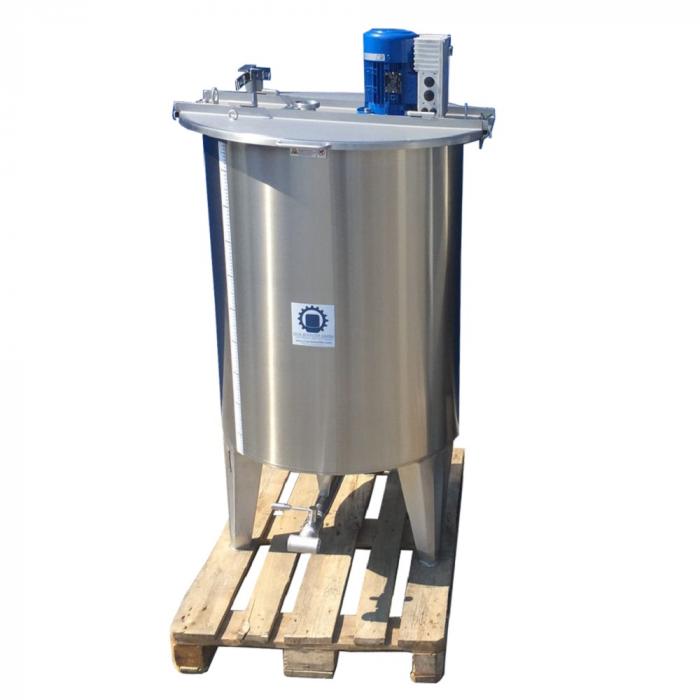

Agitator tank type CILC500RWP - with propeller stirrer SRT8-1500 - stainless steel - 510 l - tank Ø 790 mm - single-walled
| € 5.227,78 |
| Price incl. VAT |
Delivery within 7-10 days
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
309350051000
Product Description
- The agitator tank type CILC150RWP with propeller stirrer is suitable for low-viscosity media up to 500 mPas.
- The 510 l stainless steel agitator tank is brand new and equipped with a propeller stirrer from Schwarzer Rührtechnik GmbH.
- The container is equipped with a hinged lid with stainless steel sheet metal grates as Eingreifschutz. This is screwed and removable.
- The hinged lid has a locking function.
- The massive agitator shaft is attached to the agitator motor and can not be removed.
- The stirrer shaft is balanced for concentricity in the speed range.
- The following documentation is included: Technical drawing, agitator operating instructions, CE declaration of conformity.
- Container type - CILC500RWP
- Volume - 510 l
- Version - single-walled
- Material (wetted) - 1.4301 stainless steel
- Welds inside - stained, passivated and brushed
- Operating pressure - Atmospheric
- Dimension container
- Container diameter - 790 mm
- Total height - 1400 mm (plus agitator motor)
- Height of feet - 400 mm
- 1x outlet valve DN 50 ball valve DIN11851
- agitator
- Make - Schwarzer Rührtechnik GmbH
- Type - SRT8-1500
- Power - 0.75 KW
- Speed - 1410 rpm
- Operating voltage - 3PH 400V
- Material in contact with product - 1.4301 stainless steel
- 1 piece 3-blade mixing propeller - Ø150 mm screwed in at the end of the stirrer shaft
- Material flange - stainless steel with V-ring seal, EPDM
- Control agitator
- CEE plug switch, on / off switch, emergency stop, phase inverter, zero-voltage release
