Angle fitting – nickel-plated brass – G internal thread / R external thread – SW 10 to 30 – PN max. 60 bar – price per piece

Product Description
  • The elbow fitting is suitable for connecting pipes at right angles in compressed air and media systems up to 60 bar.
Description

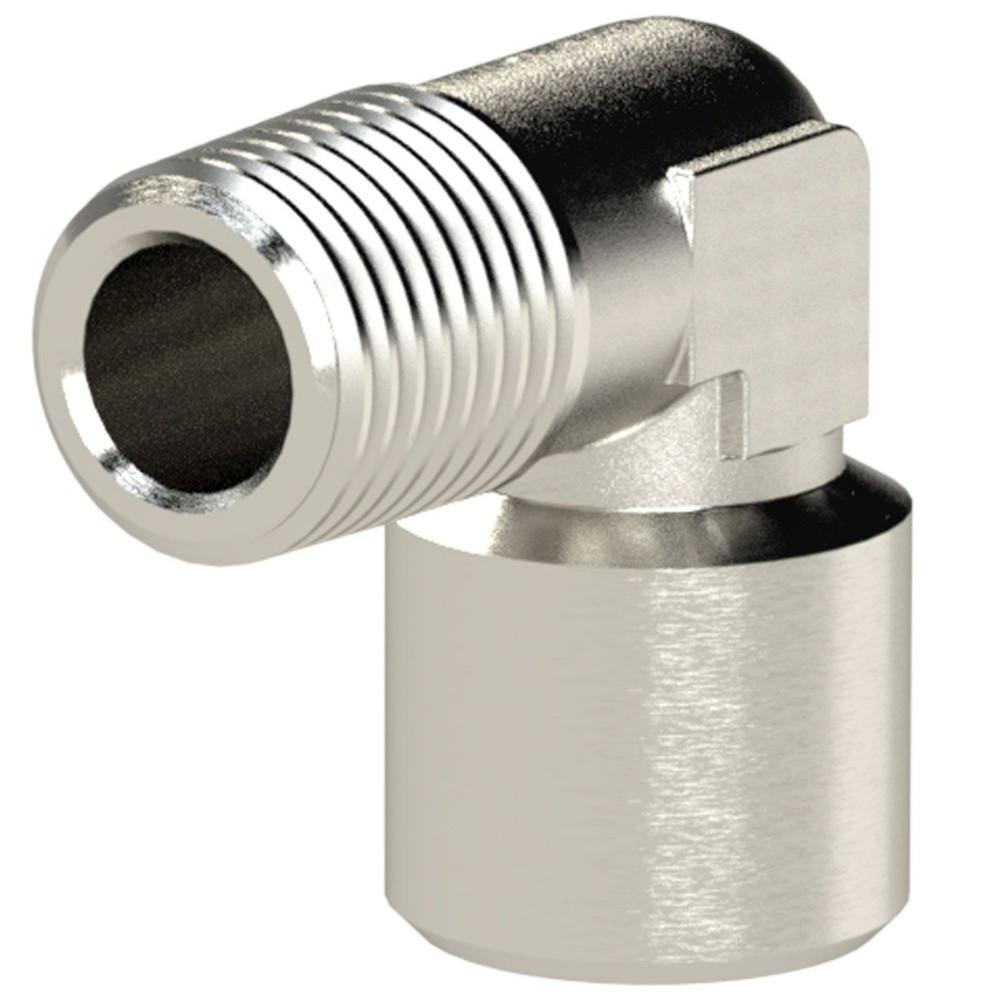

  • The elbow is a 90° pipe connector made of nickel-plated brass with a cylindrical G internal thread and a conical R external thread for connecting pipes at right angles.
  • It is designed for a maximum operating pressure of 60 bar and operating temperatures up to 150 °C.
  • The elbow is intended for use in compressed air and fluid lines.
Technical Data
  • Material – nickel-plated brass
  • Maximum operating pressure - 60 bar
  • Maximum operating temperature: 150 °C
  • Internal thread – G 1/8, G 1/4, G 3/8, G 1/2, G 3/4, G 1
  • External thread - R 1/8, R 1/4, R 3/8, R 1/2, R 3/4, R 1
  • SW - 10 to 30 mm
  • Price per piece
show more...
show less...
From € 1,89
Price incl. VAT
plus € 29,00 shipping costs
In 6 variations available
Please Choose Version...

Do you have any questions?
We would like to assist you!
verkauf@esska.de
Versions: (6)
Narrow down your selection
Type
Thread 1
Thread 2
SW
show all 6 implementations
Anzeigen als list Table
Item No.: 962011275300
Type
TypeN 253.15
Thread 1G 1/8
Thread 2R 1/8
SWSW 10
€ 1,89
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 7-10 working days
Item No.: 962011275400
Type
TypeN 253.16
Thread 1G 1/4
Thread 2R 1/4
SWSW 13
€ 2,86
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 7-10 working days
Item No.: 962011275500
Type
TypeN 253.17
Thread 1G 3/8
Thread 2R 3/8
SWSW 17
€ 3,89
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 7-10 working days
Item No.: 962011275600
Type
TypeN 253.18
Thread 1G 1/2
Thread 2R 1/2
SWSW 21
€ 5,78
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 7-10 working days
Item No.: 962011275700
Type
TypeN 253.19
Thread 1G 3/4
Thread 2R 3/4
SWSW 25
€ 7,09
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 7-10 working days
Item No.: 962011275800
Type
TypeN 253.20
Thread 1G 1
Thread 2R 1
SWSW 30
€ 11,63
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 7-10 working days
Ratings


No evaluation has been given
