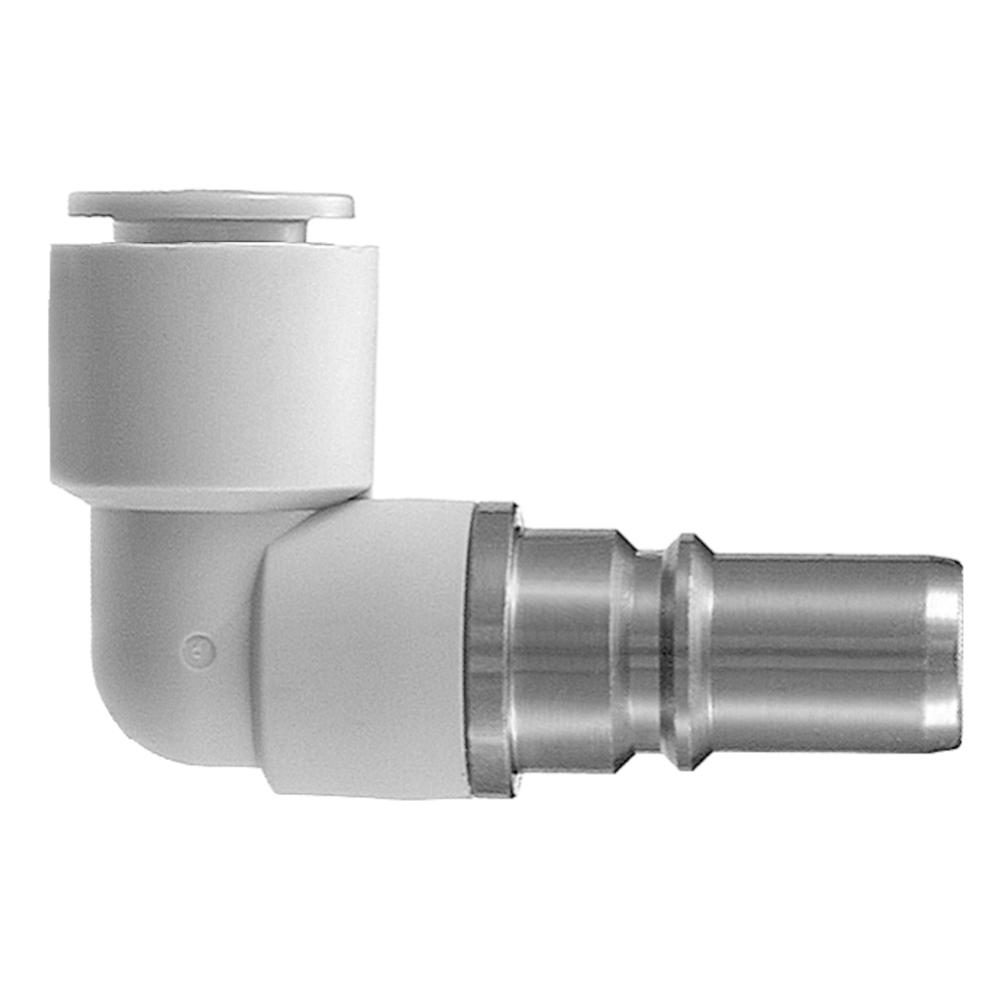

Angle quick coupling with plug - Hose outer diameter 3.2 to 16 mm - Size M5 to 1/2 - Pack of 5 - Price per piece
| € 13,35 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 66,76)
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
973000003857
Product Description
- The KKP-L angle quick-release coupling is used in industrial pneumatic systems where a mechanically secured connection is required, e.g. in production lines, machine modules, test systems or mobile workstations.
- It is ideal for applications with medium to high hose diameters where reliability and safety are paramount.
- The quick coupling is also suitable for water applications up to +40 °C (not frozen).
- It is particularly advantageous for applications involving movement or tensile loads and is compatible with polyurethane and nylon hoses.
- The KKP-L angle quick-release coupling with plug is a robust, straight coupling with a locking mechanism for secure connection in compressed air systems.
- The plug has a hose nozzle and is securely locked in place by insertion; it is unlocked manually for disconnection.
- The housing is made of chemically nickel-plated brass and the seal is made of NBR, which ensures high resistance to compressed air and water as well as reliable tightness.
- The integrated locking mechanism makes the coupling particularly suitable for applications subject to vibration or movement.
- The KKP-L is designed for frequent plugging and unplugging and ensures a secure, leak-free connection.
- Material - nickel-plated brass
- Ambient temperature - -5 to 60 °C
- Media temperature - -5 to 60 °C
- Operating pressure min. - -0.1 MPa
- Max. operating pressure - 1 MPa
- Size - M5 to 1/2
- Suitable hose outer diameter - 3.2 to 16 mm
- Media - compressed air, water
- Length - approx. 29 to 67 mm
- Height - approx. 21.5 to 35.5 mm
- Weight - 5.8 to 48.7 g
- Minimum order quantity - 5 pieces
- Price per piece
Versions: (13)
Item No.: 973000248839
Type
| Size | M5 |
| Hose outer diameter | 3.2 mm |
| € 5,02 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 25,09)
Item No.: 973000220337
Type
| Size | M5 |
| Hose outer diameter | 4 mm |
| € 5,02 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 25,09)
Item No.: 973000003416
Type
| Size | M5 |
| Hose outer diameter | 6 mm |
| € 5,02 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 25,09)
Item No.: 973000003449
Type
| Size | 1/8 |
| Hose outer diameter | 4 mm |
| € 5,31 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 26,57)
Item No.: 973000003462
Type
| Size | 1/8 |
| Hose outer diameter | 6 mm |
| € 5,31 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 26,57)
Item No.: 973000003476
Type
| Size | 1/8 |
| Hose outer diameter | 8 mm |
| € 6,02 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 30,09)
Item No.: 973000003488
Type
| Size | 1/8 |
| Hose outer diameter | 10 mm |
| € 7,72 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 38,61)
Item No.: 973000003624
Type
| Size | 1/4 |
| Hose outer diameter | 6 mm |
| € 6,02 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 30,09)
Item No.: 973000003637
Type
| Size | 1/4 |
| Hose outer diameter | 8 mm |
| € 6,74 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 33,70)
Item No.: 973000003650
Type
| Size | 1/4 |
| Hose outer diameter | 10 mm |
| € 8,37 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 41,85)
Item No.: 973000003663
Type
| Size | 1/4 |
| Hose outer diameter | 12 mm |
| € 8,37 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 41,85)
Item No.: 973000003844
Type
| Size | 1/2 |
| Hose outer diameter | 12 mm |
| € 9,72 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 48,61)
Item No.: 973000003857
Type
| Size | 1/2 |
| Hose outer diameter | 16 mm |
| € 13,35 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 66,76)
