Angle quick coupling with socket - hose outer diameter 3.2 to 16 mm - size M5 to 1/2 - pack of 5 - price per piece
| From € 12,35 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The KKS-L angle quick-release coupling is used in pneumatic systems where a right-angle hose connection with a secure, locked connection is required, such as in machine modules, control boxes, mobile systems or test benches.
- It is ideal for applications with limited installation space and repeated connection cycles.
- The quick coupling is also suitable for water applications up to +40 °C (not frozen).
- It is ideal for polyurethane and nylon hoses in the medium diameter range.

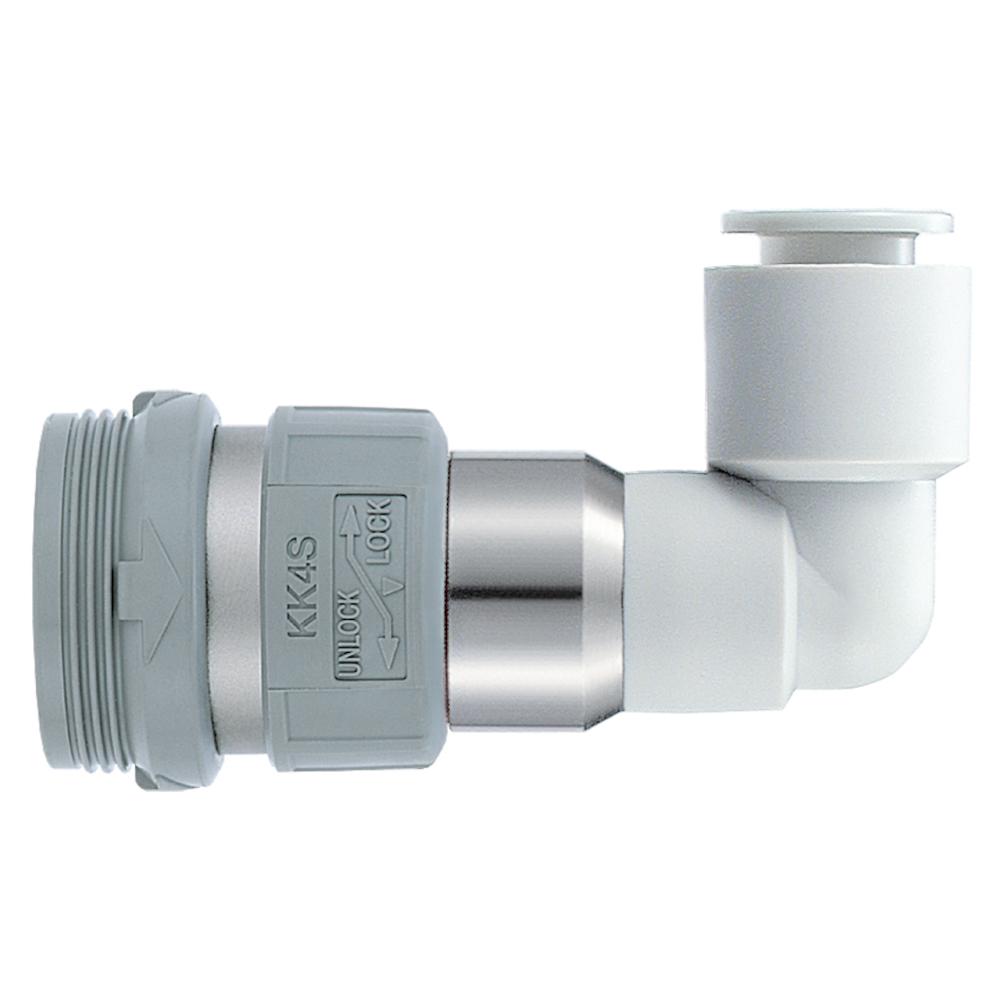

- The KKS-L angle quick coupling with socket is a right-angle coupling connection with a locking mechanism for compact hose connections.
- It has an integrated grommet and enables a secure, leak-free connection with minimal space requirements.
- The coupling is made of chemically nickel-plated brass and is equipped with an NBR seal, which ensures high resistance to compressed air and water.
- The locking mechanism ensures a vibration-proof connection during frequent coupling and uncoupling.
- The angle design makes the KKS-L particularly suitable for installations with limited space.
- Material - nickel-plated brass
- Ambient temperature - -5 to 60 °C
- Media temperature - -5 to 60 °C
- Operating pressure min. - -0.1 MPa
- Max. operating pressure - 1 MPa
- Size - M5 to 1/2
- Suitable hose outer diameter - 3.2 to 16 mm
- Media - compressed air, water
- Length - approx. 32.5 to 85.5 mm
- Height - approx. 21.5 to 49.8 mm
- Weight - 6.7 to 93.5 g
- Minimum order quantity - 5 pieces
- Price per piece
Versions: (13)
| Article No. | Size | Hose outer diameter | Price incl. VAT | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
973000248842 | M5 | 3.2 mm |
|
|||||||||
|
|||||||||||||
|
973000223482 | M5 | 4 mm |
|
|||||||||
|
|||||||||||||
|
973000153554 | M5 | 6 mm |
|
|||||||||
|
|||||||||||||
|
973000003527 | 1/8 | 4 mm |
|
|||||||||
|
|||||||||||||
|
973000003541 | 1/8 | 6 mm |
|
|||||||||
|
|||||||||||||
|
973000003557 | 1/8 | 8 mm |
|
|||||||||
|
|||||||||||||
|
973000003569 | 1/8 | 10 mm |
|
|||||||||
|
|||||||||||||
|
973000003733 | 1/4 | 6 mm |
|
|||||||||
|
|||||||||||||
|
973000003750 | 1/4 | 8 mm |
|
|||||||||
|
|||||||||||||
|
973000003766 | 1/4 | 10 mm |
|
|||||||||
|
|||||||||||||
|
973000003781 | 1/4 | 12 mm |
|
|||||||||
|
|||||||||||||
|
973000003903 | 1/2 | 12 mm |
|
|||||||||
|
|||||||||||||
|
973000003916 | 1/2 | 16 mm |
|
|||||||||
|
|||||||||||||
