Item No.:
1500SKB131af
Product Description

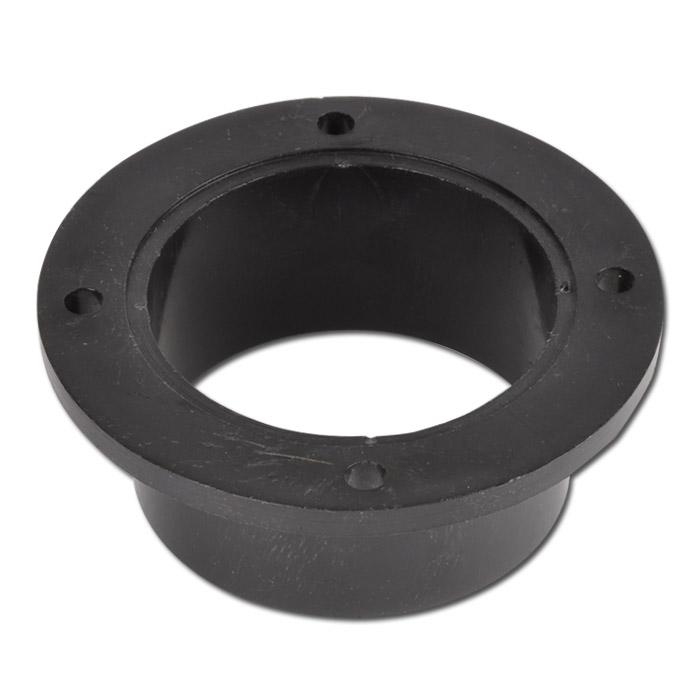

- The extraction flange for blast cabinets is suitable for retrofitting or improving your own cabinets or creating a new cabinet design, as well as for connecting extraction units.
- The suction flange has 3 holes with a diameter of 5 mm in the mounting ring.
- The flange is inserted through a prefabricated hole and screwed to the side or rear wall of the blast cabinet.
- Weight - 0.52 kg
- Colour - black
- Total height - 33 mm
- max. installation depth - 28 mm
- Flange material thickness - 3 mm
- Material thickness of fastening ring - 5 mm
- Inner Ø flange (passage) - 58 mm
- Outer Ø fastening ring - 88 mm
