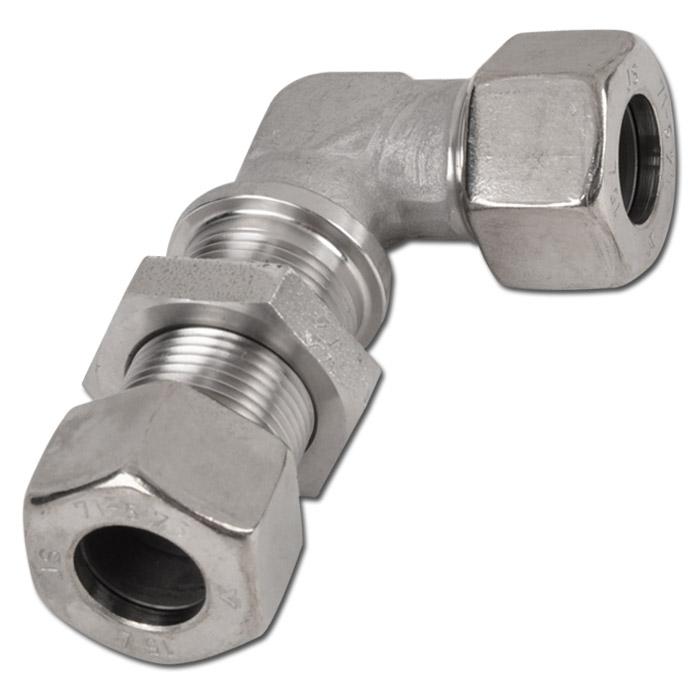

Bulkhead Union Elbows Light Or Heavy BR Stainless Steel
(Exemplary presentation)
| From € 26,51 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The angled bulkhead fitting is ideal for connecting seamless pipes with the same diameter at right angles.
- The screw fitting from the light or heavy series is made of stainless steel and fitted with two union nuts, each with a metric internal thread.
- Material - Stainless steel 1.4571
- Series - L/S
- Angle - 90°
- Outer tube Ø - 6 to 42 mm
- Bulkhead thread - metric
- max. operating pressure - 160 to 630 bar
- Temperature range - -60 to +400 °C
Versions: (20)
Narrow down your selection
Construction Type
Pipe-Outside-Ø
Cap Nut Thread
Item No.: 969412791016
Type
| Construction Type | L series |
| Pipe-Outside-Ø | 6 mm |
| Cap Nut Thread | M12 x 1.5 mm |
| 315 bar |
Item No.: 969412791018
Type
| Construction Type | L series |
| Pipe-Outside-Ø | 8 mm |
| Cap Nut Thread | M14 x 1.5 mm |
| 315 bar |
Item No.: 969412791000
Type
| Construction Type | L series |
| Pipe-Outside-Ø | 10 mm |
| Cap Nut Thread | M16 x 1.5 mm |
| 315 bar |
Item No.: 969412791002
Type
| Construction Type | L series |
| Pipe-Outside-Ø | 12 mm |
| Cap Nut Thread | M18 x 1.5 mm |
| 315 bar |
Item No.: 969412791005
Type
| Construction Type | L series |
| Pipe-Outside-Ø | 15 mm |
| Cap Nut Thread | M22 x 1.5 mm |
| 315 bar |
Item No.: 969412791007
Type
| Construction Type | L series |
| Pipe-Outside-Ø | 18 mm |
| Cap Nut Thread | M26 x 1.5 mm |
| 315 bar |
Item No.: 969412791009
Type
| Construction Type | L series |
| Pipe-Outside-Ø | 22 mm |
| Cap Nut Thread | M30 x 2 mm |
| 160 bar |
Item No.: 969412791011
Type
| Construction Type | L series |
| Pipe-Outside-Ø | 28 mm |
| Cap Nut Thread | M36 x 2 mm |
| 160 bar |
Item No.: 969412791013
Type
| Construction Type | L series |
| Pipe-Outside-Ø | 35 mm |
| Cap Nut Thread | M45 x 2 mm |
| 160 bar |
Item No.: 969412791015
Type
| Construction Type | L series |
| Pipe-Outside-Ø | 42 mm |
| Cap Nut Thread | M52 x 2 mm |
| 160 bar |
Item No.: 969412791017
Type
| Construction Type | S series |
| Pipe-Outside-Ø | 6 mm |
| Cap Nut Thread | M14 x 1.5 mm |
| 630 bar |
Item No.: 969412791019
Type
| Construction Type | S series |
| Pipe-Outside-Ø | 8 mm |
| Cap Nut Thread | M16 x 1.5 mm |
| 630 bar |
Item No.: 969412791001
Type
| Construction Type | S series |
| Pipe-Outside-Ø | 10 mm |
| Cap Nut Thread | M18 x 1.5 mm |
| 630 bar |
Item No.: 969412791003
Type
| Construction Type | S series |
| Pipe-Outside-Ø | 12 mm |
| Cap Nut Thread | M20 x 1.5 mm |
| 630 bar |
Item No.: 969412791004
Type
| Construction Type | S series |
| Pipe-Outside-Ø | 14 mm |
| Cap Nut Thread | M22 x 1.5 mm |
| 630 bar |
Item No.: 969412791006
Type
| Construction Type | S series |
| Pipe-Outside-Ø | 16 mm |
| Cap Nut Thread | M24 x 1.5 mm |
| 400 bar |
Item No.: 969412791008
Type
| Construction Type | S series |
| Pipe-Outside-Ø | 20 mm |
| Cap Nut Thread | M30 x 2 mm |
| 400 bar |
Item No.: 969412791010
Type
| Construction Type | S series |
| Pipe-Outside-Ø | 25 mm |
| Cap Nut Thread | M36 x 2 mm |
| 400 bar |
Item No.: 969412791012
Type
| Construction Type | S series |
| Pipe-Outside-Ø | 30 mm |
| Cap Nut Thread | M42 x 2 mm |
| 400 bar |
Item No.: 969412791014
Type
| Construction Type | S series |
| Pipe-Outside-Ø | 38 mm |
| Cap Nut Thread | M52 x 2 mm |
| 315 bar |
