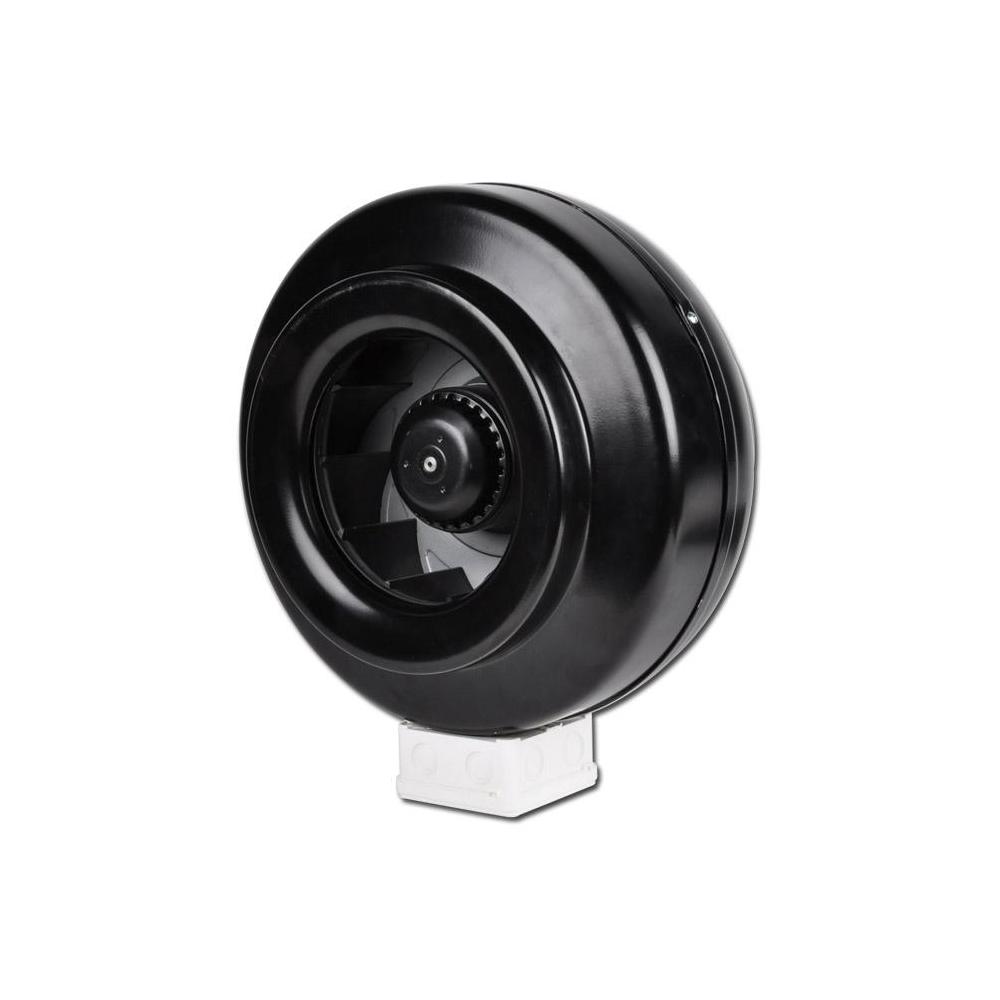

Centrifugal tube fan - Air flow rate of 350 m³/h - Diameter 100 mm - Motor power 58 W

Item No.:
554501000350
Product Description
  • These fans are ideal for use in residential and commercial buildings to supply fresh air and extract stale air.
  • They are used in bathrooms, kitchens, offices and warehouses to improve air quality and reduce humidity.
Description
  • Thanks to its compact size and high efficiency, the product can also be integrated into heating and air conditioning ventilation systems.
  • The 58 W motor ensures reliable and energy-saving performance, while the 100 mm diameter ensures optimum air flow.
Technical Data
  • Centrifugal tube fan
  • powerful
  • pressure-resistant
  • Terminal box, mounted and wired
  • Sheet steel housing, galvanised, painted
  • External rotor motors
  • 230 Volt - 50 Hz,
  • speed controllable
  • 2.360 rpm
  • Type TUB 100 Plus
  • Noise data 54 dB(A)
