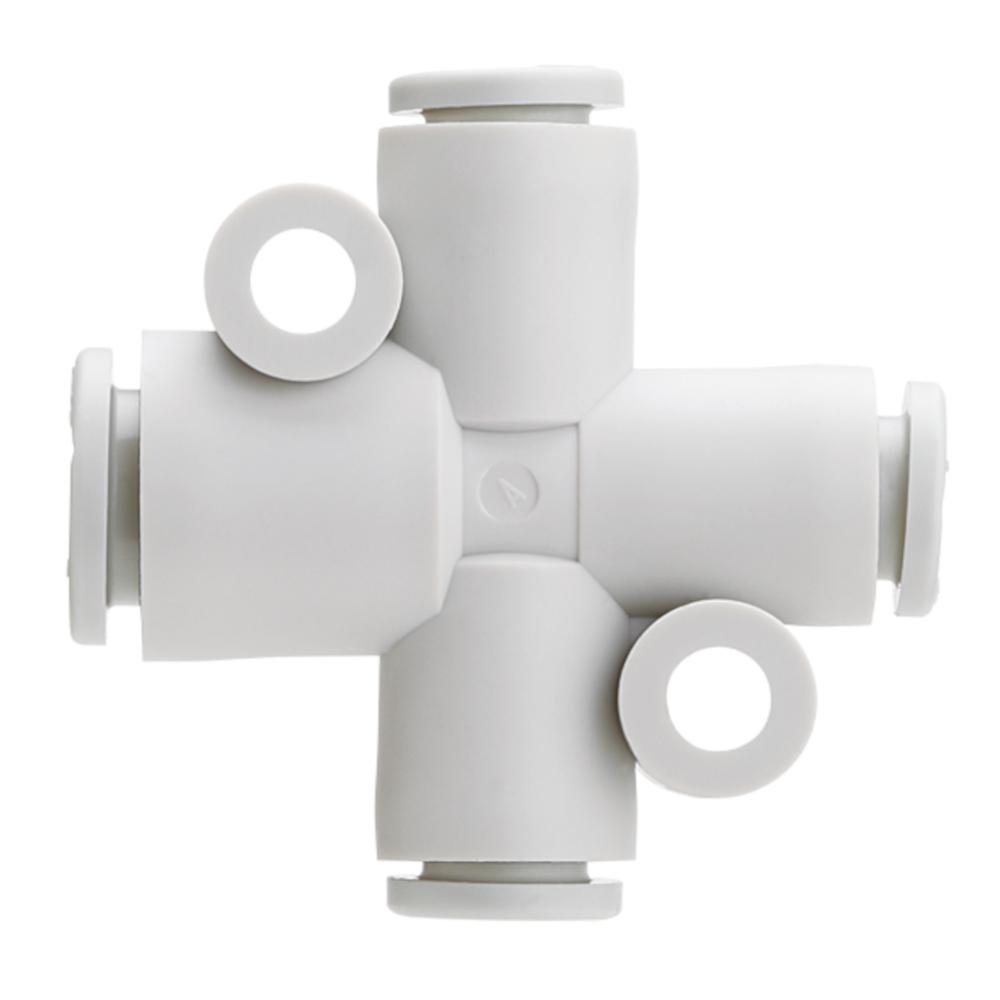

Cross-connect fitting KQ2TY06-08A1 - PBT/PP - oval pressure ring - hose Ø 6 to 8 mm - PU 10 pieces - price per piece
| € 10,74 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 2 - 4 working days
Minimum order quantity: 10 (= € 107,44)
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
973001559033
Product Description
- The KQ2TY cross connector is used to centrally distribute four pneumatic hoses in a Y configuration.
- It is used in automation technology, mechanical engineering and in pneumatic control and supply systems in which several consumers in a confined space need to be supplied with compressed air in a flexible manner.
- They are particularly advantageous for use in modular and compact systems where space-saving air distribution is required.
- The tool-free plug-in assembly allows for quick system expansions, adjustments and maintenance work.
- The KQ2TX cross-plug connector consists of a PBT/PP body and POM pressure rings.
- The Y-branch connector has four hose inlets, three of which have a reduced diameter.
- Their special cross design, combined with the Y-arrangement, enables the even distribution of four pneumatic hose lines in the smallest of spaces.
- The oval pressure ring significantly reduces the force required to insert and remove the hoses and allows quick, tool-free installation.
- The compact design supports integration even in complex pneumatic systems with limited installation space.
- Precise manufacturing guarantees permanently secure and tight connections, even with frequent reconnections.
- Material - Plastic (PBT / PP)
- Ambient temperature - -5 to 60 °C
- Media temperature - -5 to 40 °C
- Operating pressure - -0.1 to 1 MPa
- Suitable hose outer diameter - 6 to 8 mm
- Media – compressed air, water
- Length - approx. 17.2 mm
- Width - approx. 17.3 mm
- Weight - approx. 7.1 g
- Minimum order - 10 pieces
- Price per item
