Dirt trap - brass - stainless steel strainer - thread G 1/2" - mesh size 0.2 mm - up to 20 bar - price per piece
| € 7,76 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
SF1201003758
Product Description
- The dirt separator is used to protect system components in water, heating, air conditioning and compressed air systems by reliably filtering out impurities with its fine stainless steel screen.
- The dirt trap is made of polished brass and is equipped with a high-quality stainless steel sieve insert with a mesh size of 0.2 mm.
- It provides reliable protection against dirt particles in water, heating, air conditioning and compressed air systems and is suitable for operating pressures up to 20 bar and temperatures up to 110 °C.
- The connection is made via a G 1/2" female thread, suitable for pipes with DN 15.
- Type No. - 60-3 M-0.2
- Housing - brass, blank
- Sealing material - NBR (O-ring)
- Sieve insert - stainless steel
- Operating pressure - max. 20 bar
- Operating temperature - -20 to 110 °C
- DN - 15
- SW 1 - 25 mm
- SW 2 - 20 mm
- Mesh size - 0.2 mm
- Height - 40 mm
- Length - 58 mm
- Thread standard - DIN EN ISO 228-1, tolerance class B
- Price per piece

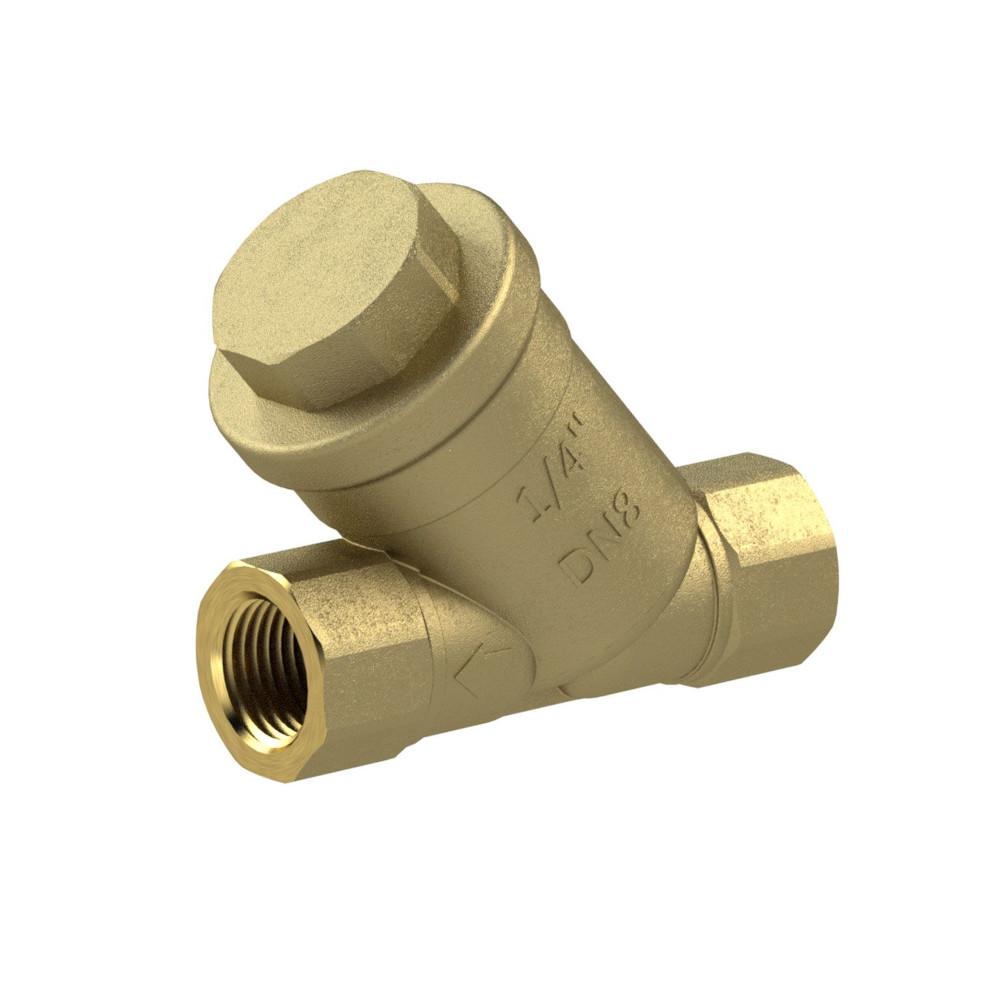

The image is an example and may vary!
