Distributor piece M-5M – miniature – brass – Rc 1/8" x M5 IG – 9 stations – pack of 10 – price per piece
| € 10,89 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 108,89)
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
973000003127
Product Description
- The M-5M manifold is used wherever a branch with M5 threaded connections is required in compact pneumatic systems, such as in sensor lines, control plates or miniature valve islands.
- It is suitable for fixed installations as well as flexible test setups.
- It is particularly useful in confined spaces or when two connections need to be made in a small area.
- The robust design guarantees long-term tightness.
- The M-5M is suitable for compressed air and water applications (non-frozen).

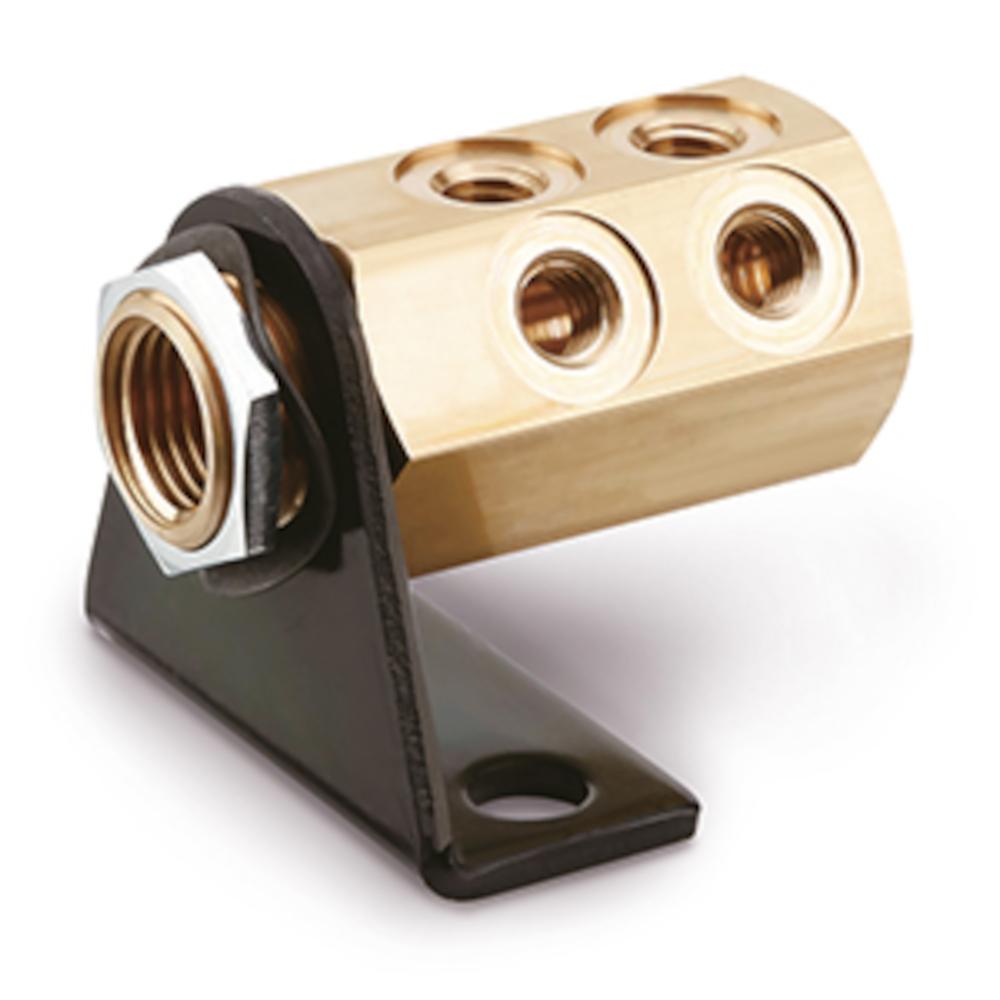

- The M-5M distributor is a compact, metallic connector for pressure-tight branching via two M5 female threads.
- It is made entirely of chemically nickel-plated brass and provides a reliable, corrosion-resistant connection in miniature pneumatic systems.
- The threaded hole on both sides allows two components or screw connections to be connected in parallel.
- Its compact size makes it ideal for tight installation conditions.
- The M-5M distributor is reusable and can be easily integrated into existing systems.
- Housing material – bright brass
- Ambient temperature - -5 to 60 °C
- Media temperature - -5 to 40 °C
- Operating pressure min. - 0 MPa
- Maximum operating pressure - 1 MPa
- Connection thread - Rc 1/8"
- Distribution stations – 9x internal thread M5 x 0.8
- Media – compressed air, water
- Max. mounting plate thickness - 3.5 mm
- Wrench size Connection thread - 14 mm
- Wrench size manifold block - 17 mm
- Total length - 44 mm
- Width - 32 mm
- Height - 28.8 mm
- Weight - 59 g
- Minimum order quantity – 10 pieces
- Price per piece
