Product Description

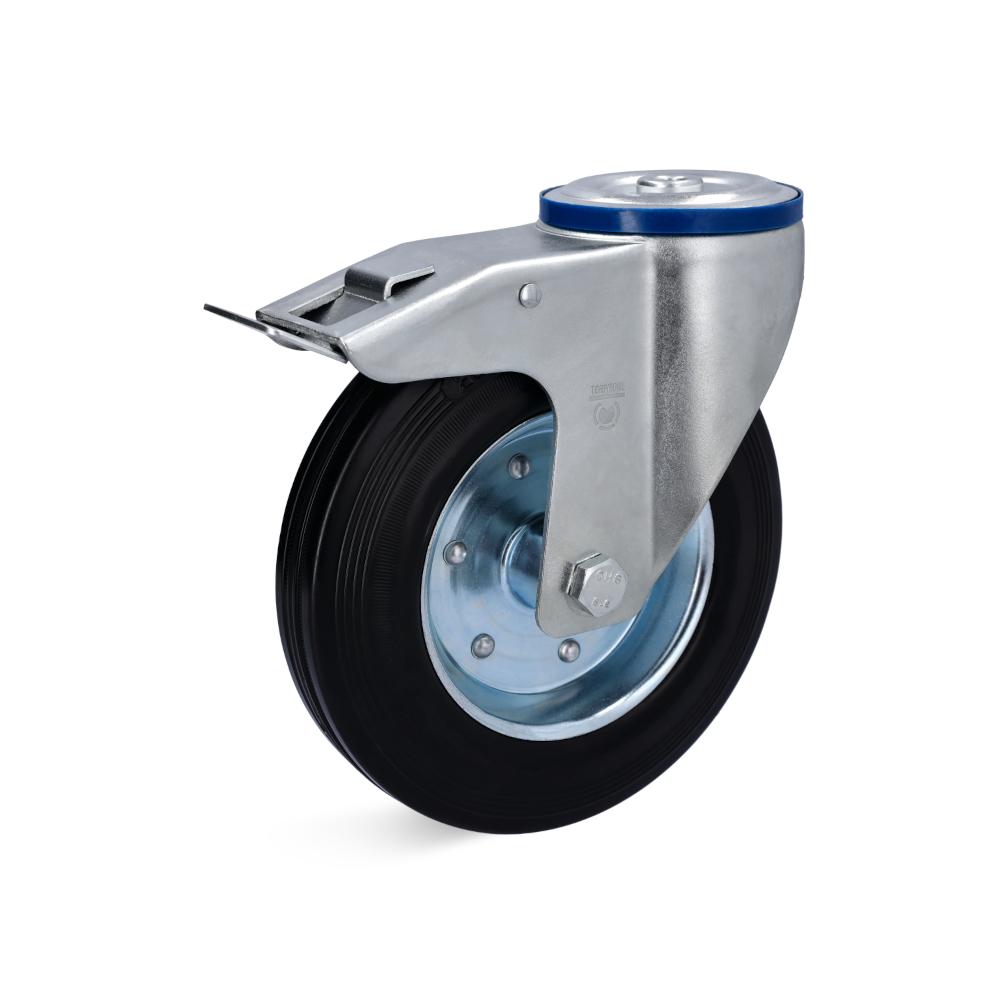

- The electrically conductive swivel castor with double stop is versatile in its application.
- The castors in the solid rubber series are characterised by their quiet running and vibration-damping properties.
- Mounting type - Mounting plate
- Electrically conductive swivel castor with double stop Wheel series SGS-EC
- Tread made of odourless solid rubber tyres in black
- Sealing with integrated ball spacer
- the leakage resistance is 10,000 ohms
- Plasticiser diffusion may cause contact discolouration of the floor – approx. 80 to 85° Shore A.
- Axle hole diameter housing - 8 to 12 mm
- Number of wheels - 1
- Projection - 38 to 55 mm
- Housing design - drawn
- Housing height - 135 mm
- Mounting type - Mounting plate
- Coating Rim - galvanised
- Coating Housing - galvanised
- Colour of tread - black
- Rim material – sheet steel
- Fork head bearing seal - blue sealing ring
- Fork head bearing type Fork head with double ball bearing
- Fork head connection – riveted
- Fork thickness - 2 to 3 mm
- Housing material - steel
- Housing type - Swivel housing with brake
- Total height - 100 to 235 mm
- Weight - 0.808 to 3.524 kg
- Bearing shell type – non-hardened
- Tread type - crowned
- Tread material – solid rubber
- Clear width - 42 to 62 mm
- Plate width - 80 to 110 mm
- Plate length - 105 to 135
- Plate thickness - 2.5 to 3 mm
- Wheel diameter – 80 to 200 mm
- Wheel width - 27 to 50 mm
- Wheel bearings - Roller bearings
- Screw hole diameter – 9 to 11 mm
- Screw hole spacing width – 60 to 80 mm
- Screw hole removal Length - 80 to 105 mm
- Stoppart DS-N (double stop in overrun)
- Adjustable stop screw - yes
- Load capacity - 50 to 205 kg
