Extension set for heating manifold - supply and return manifold - with flow meter and shut-off valve

€ 64,46
Price incl. VAT
available after order placement within 3 weeks

Do you have any questions?
We would like to assist you!
verkauf@esska.de

Item No.:
5097915CK134
Product Description
  • The extension set for heating manifolds is ideal for extending the heating manifold by one additional flow and return manifold each. This allows the heat of the heating system to be distributed by an additional heating circuit.
Application

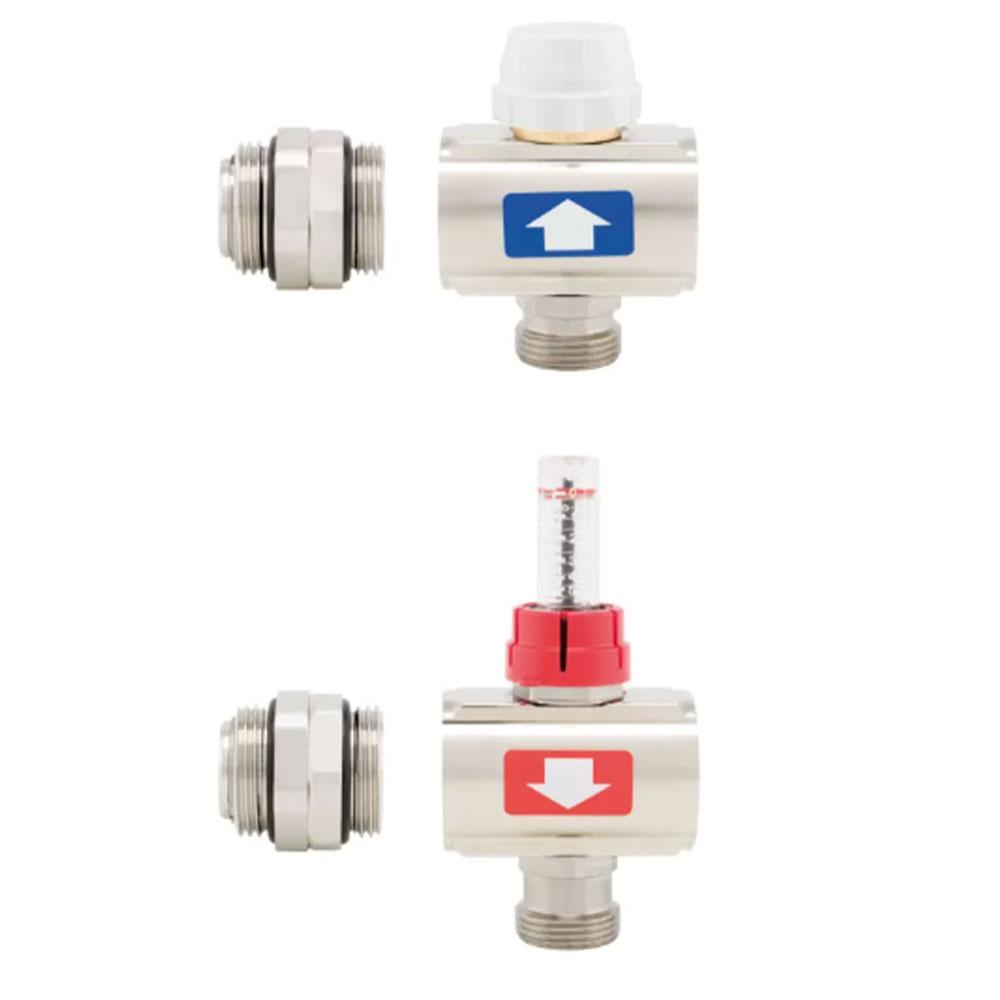

  • The extension set for heating manifolds consists of a brass flow manifold with flow meter, a brass return manifold (predisposed for electrothermal control) with shut-off valve and two rotary nipples, each with two male threads.
Technical Data
  • Material single manifold - nickel-plated brass CW603N M-S
  • Material threaded nipple - nickel-plated brass CW617N
  • Maximum operating temperature - 70 °C
  • Maximum operating pressure - 6 bar / 87 psi
  • Threaded connections - ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228)
  • Thread rotating nipple- 1"
  • Connection thread manifold - Eurocone 3/4"
  • Width - 56 mm
  • Height flow manifold - 81 mm
  • Height return manifold - 113 mm
