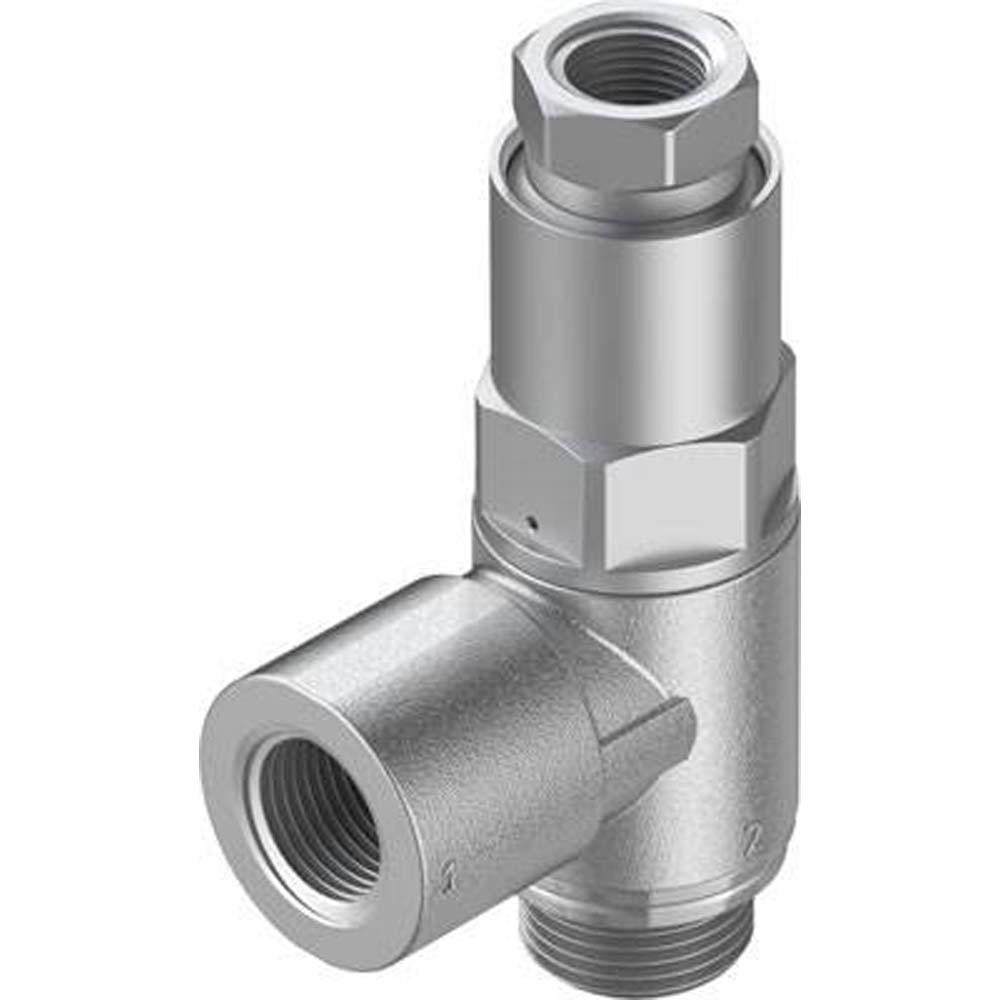

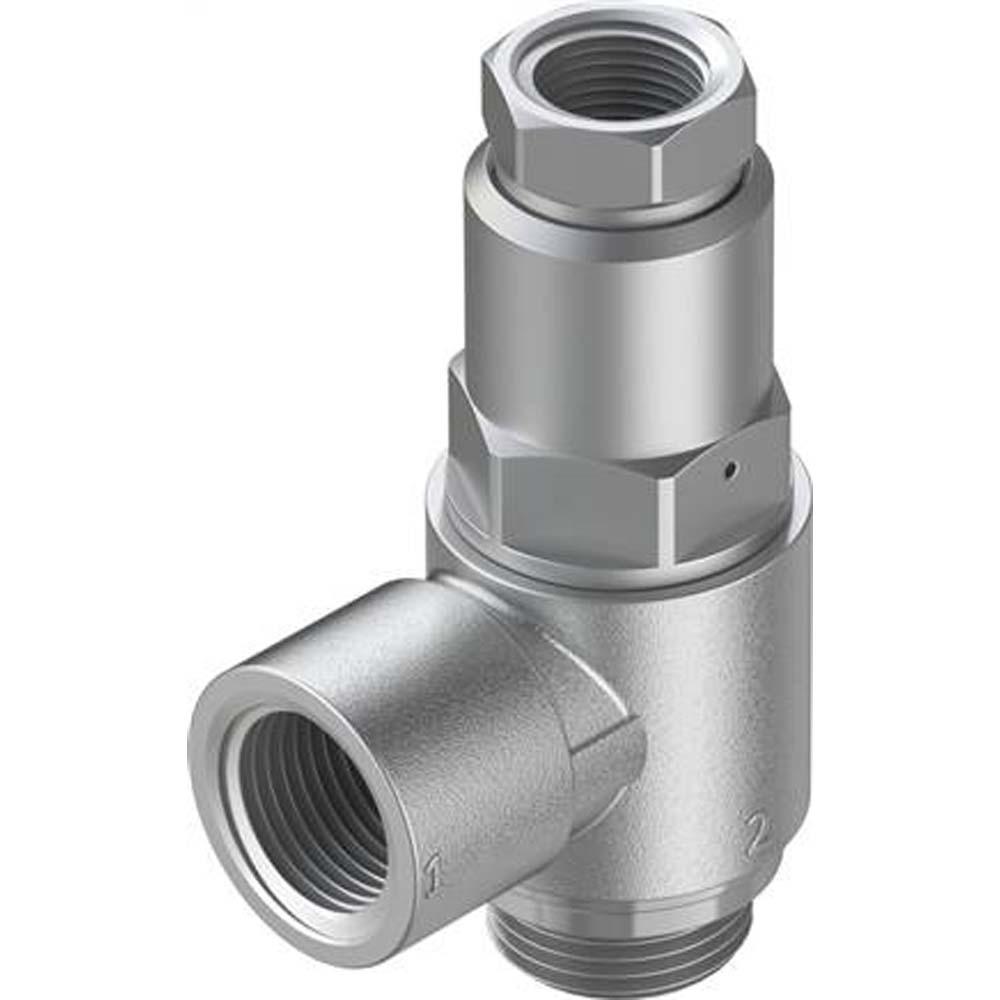

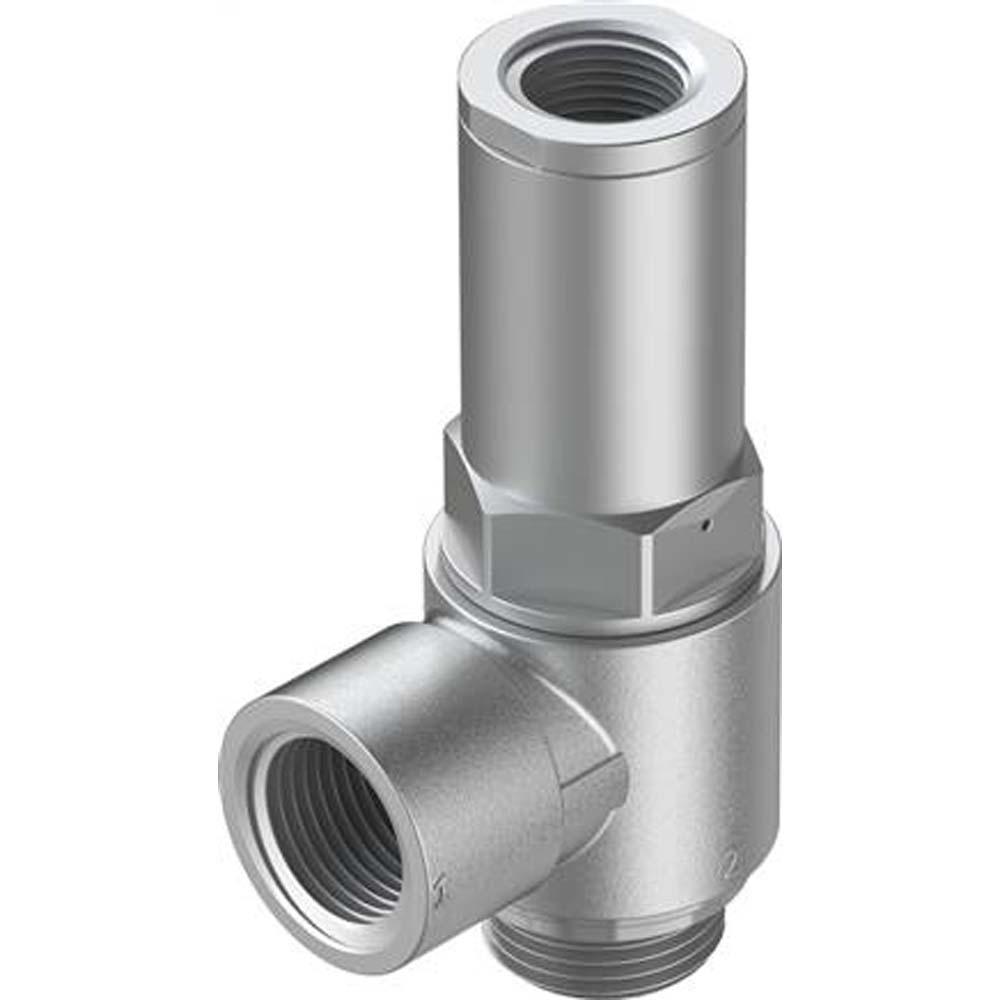

FESTO - Controlled check valve HGL-B - unlockable check function - G 1/8 to G 1/2 - Price per piece
(Exemplary presentation)
| From € 50,20 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- A controlled check valve for short-term positioning and braking of a pneumatic drive by switching off when there is no control signal.
- The HGL-B controlled check valve from Festo is a robust and compact solution for pneumatic unlocking, ideal for the precise positioning and braking of a pneumatic drive.
- It is available in several connection sizes and has a screw-in thread with a swivel connection for flexible mounting options.
- Without a control signal, the valve closes automatically and reliably blocks the drive; if necessary, venting can be provided via accessories.
- The design allows for easy integration into a wide variety of pneumatic systems.
- Thread - G 1/8 to G 1/2
- Valve function - unlockable non-return function
- Actuation type - pneumatic
- Mounting type - Screw-in with external thread, swivel connection
- Installation position - any
- Operating pressure - 0.5 to 10 bar (0.05 to 1 MPa)
- Medium (operating and control medium) - Compressed air according to ISO 8573-1:2010 [7:4:4], oiled operation possible
- Temperature range (ambient/medium/storage) - –10 to +60 °C
- Corrosion resistance - KBK 2 – moderate corrosion exposure
- Cleanroom class - Class 4 according to ISO 14644-1
- RoHS compliant
- Seal material - NBR
- Material Hollow screw - anodised wrought aluminium alloy
- Material: POM
- Material of non-return sleeve - NBR
- Material Swivel connection - die-cast zinc
- Price per piece
Versions: (4)
Narrow down your selection
Pneumatic connection
Control air connection 21
Control pressure
Flow rate
Nominal tightening torque
| Article No. | Pneumatic connection | Control air connection 21 | Control pressure | Flow rate | Nominal tightening torque | Price incl. VAT | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
855300012185 | G 1/8 | M5 | 2 to 10 bar | 430 l/min (6-0)/300 l/min (6-5) | 3.5 Nm |
|
||||
|
|||||||||||
|
855300012181 | G 1/4 | G 1/8 | 2 to 10 bar | 680 l/min (6-0)/550 l/min (6-5) | 11 Nm |
|
||||
|
|||||||||||
|
855300012189 | G 3/8 | G 1/4 | 1 to 10 bar | 1500 l/min (6-0)/1100 l/min (6-5) | 12.5 Nm |
|
||||
|
|||||||||||
|
|
855300012178 | G 1/2 | G 3/8 | 1 to 10 bar | 2100 l/min (6-0)/1600 l/min (6-5) | 14 Nm |
|
||||
|
|||||||||||
