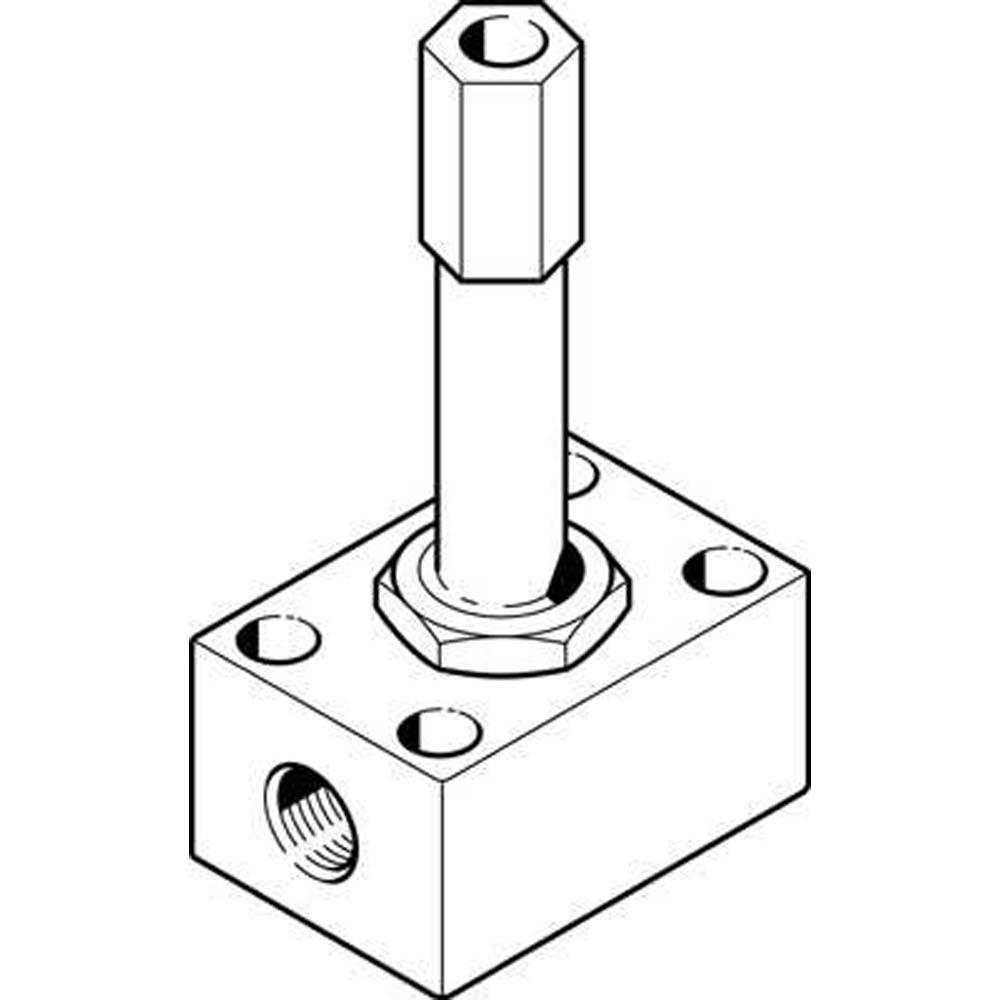

FESTO - Solenoid valve MC-2-1/8 - 2/2 closed monostable - Normal nominal flow rate 300 l/min - Price per piece
(Exemplary presentation)
| € 131,40 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 2 - 4 working days
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
854001234600
Product Description
- The solenoid valve is suitable for pneumatic control systems that require a directly controlled, monostable 2/2-way valve with a compact design and high reliability.
- The MC-2-1/8 solenoid valve is a compact 2/2-way seat valve, monostable closed, with a G1/8 connection thread.
- It operates in direct control mode with a mechanical return spring and features fast switching times and a high duty cycle of 100%.
- The valve is robustly constructed, RoHS-compliant and meets the requirements for reliable pneumatic controls in industrial applications.
- Valve function – 2/2 closed monostable
- Design - Seat valve with return spring
- Operating pressure - -0.95 bar to 7 bar
- Normal nominal flow rate (normalised according to DIN 1343) – 300 l/min
- Pneumatic working connection - G1/8
- Pneumatic connection 1 - G1/8
- Pneumatic connection 2 - G1/8
- Storage temperature: -40 °C to 100 °C
- Ambient temperature - -5 °C to 40 °C
- Medium temperature - -10 °C to 60 °C
- Manual override - none
- Reset type – mechanical spring
- Control type – direct
- LABS compliance – VDMA24364-C1-L
- Mounting type – with through hole
- Sealing principle – soft
- Flow direction – non-reversible
- Actuation type - electric
- Duty cycle - 100%
- Nominal diameter - 4 mm
- Protection class - IP65
- Material information – RoHS compliant
- Operating medium – compressed air according to ISO 8573-1:2010 [7:4:4]
- Switch-off time - 20 ms
- Switching time on - 18 ms
- Coil characteristics - 110 V AC: 50/60 Hz, pull-in power 30.0 VA, holding power 22.0 VA 110 V DC: 12.7 W 120 V AC: 60 Hz, pull-in power 30.0 VA, holding power 22.0 VA 12 V AC: 50 Hz, pull-in power 30.0 VA, holding power 22.0 VA 12 V DC: 11.7 W 220 V AC: 50/60 Hz, pull-in power 30.0 VA, holding power 22.0 VA 220 V DC: 15.0 W 240 V AC: 50 Hz, starting power 30.0 VA, holding power 22.0 VA 240 V DC: 17.9 W 24 V AC: 50 Hz, starting power 30.0 VA, holding power 22.0 VA 24 V DC: 11.0 W 380 V AC: 50/60 Hz, starting power 30.0 VA, holding power 22.0 VA 42 V AC: 50/60 Hz, starting power 30.0 VA, holding power 22.0 VA 42 V DC: 12.0 W 48 V AC: 50 Hz, inrush power 30.0 VA, holding power 22.0 VA 96 V DC: 11.0 W
- Price per unit
