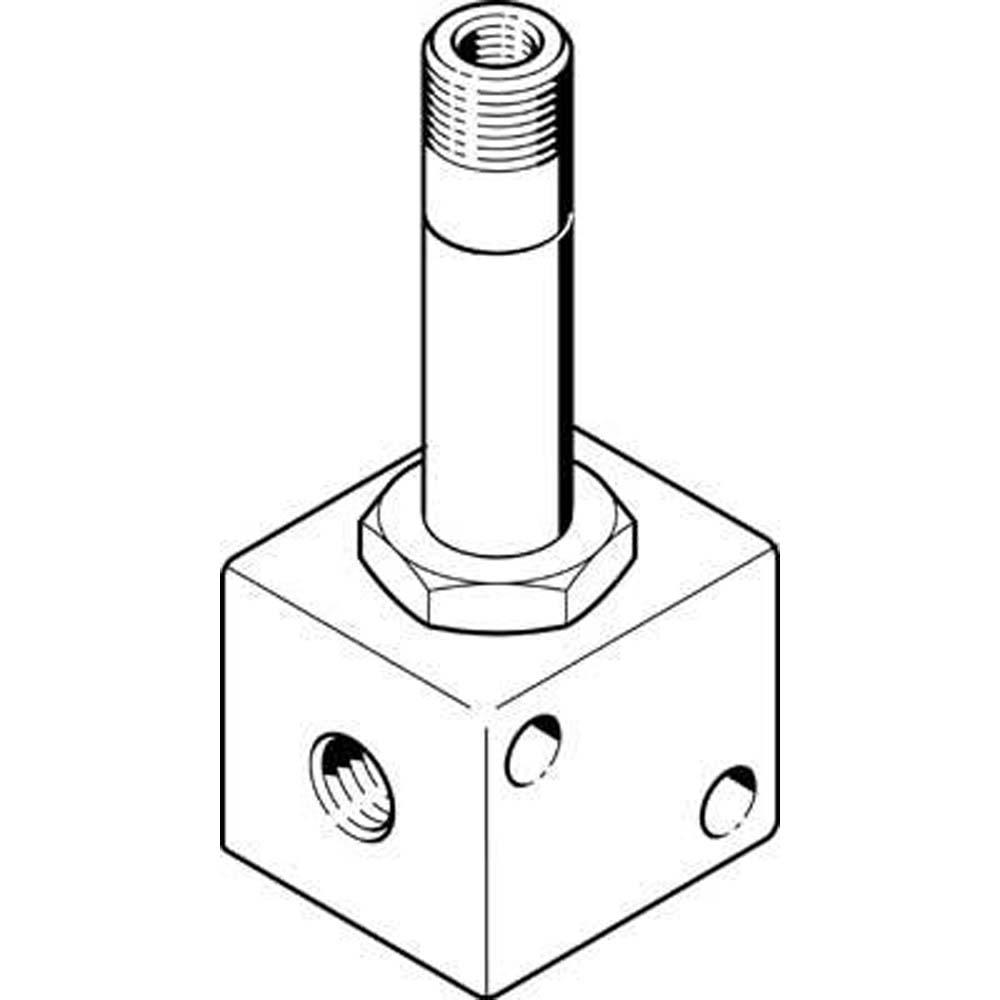

FESTO - Solenoid valve MFH-2-M5 - 2/2 closed monostable - Normal nominal flow rate 75 l/min - Price per piece
(Exemplary presentation)
| € 118,94 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 2 - 4 working days
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
854001241700
Product Description
- The pneumatic valve is suitable for pneumatic controls with a small nominal diameter, compact design and fast switching sequence.
- The MFH-2-M5 solenoid valve is a compact 2/2-way valve with a disc seat design.
- It is directly controlled, electrically operated and equipped with a mechanical return spring.
- With its small nominal diameter and M5 connections, the valve is ideal for precise pneumatic control in confined installation situations.
- Thanks to its short switching times and robust design, it offers reliable performance in industrial applications.
- Valve function – 2/2 closed monostable
- Operating pressure - 0 bar to 8 bar
- Design - Disc seat
- Normal nominal flow rate (normalised according to DIN 1343) – 75 l/min
- Manual override - detent
- Reset type – mechanical spring
- Control type – direct
- Exhaust air function – non-throttleable
- LABS compliance – VDMA24364-B2-L
- Mounting type - with through hole
- Sealing principle – soft
- Flow direction – non-reversible
- Actuation type - electric
- Nominal diameter - 1.5 mm
- Note on operating/control medium - Oiled operation possible (required for further operation)
- Pneumatic working connection - M5
- Pneumatic connection 1 - M5
- Pneumatic connection 2 - M5
- Operating medium – compressed air according to ISO 8573-1:2010 [7:4:4]
- Switch-off time - 5 ms
- Switching time on - 6.2 ms
- Medium temperature - -15 °C to 60 °C
- Ambient temperature - -15 °C to 40 °C
- Installation position – any
- Price per unit
