FESTO Valve terminal base series VABM-L1-18G-G38 – grid size 19 mm – up to 24 valve positions – price per unit

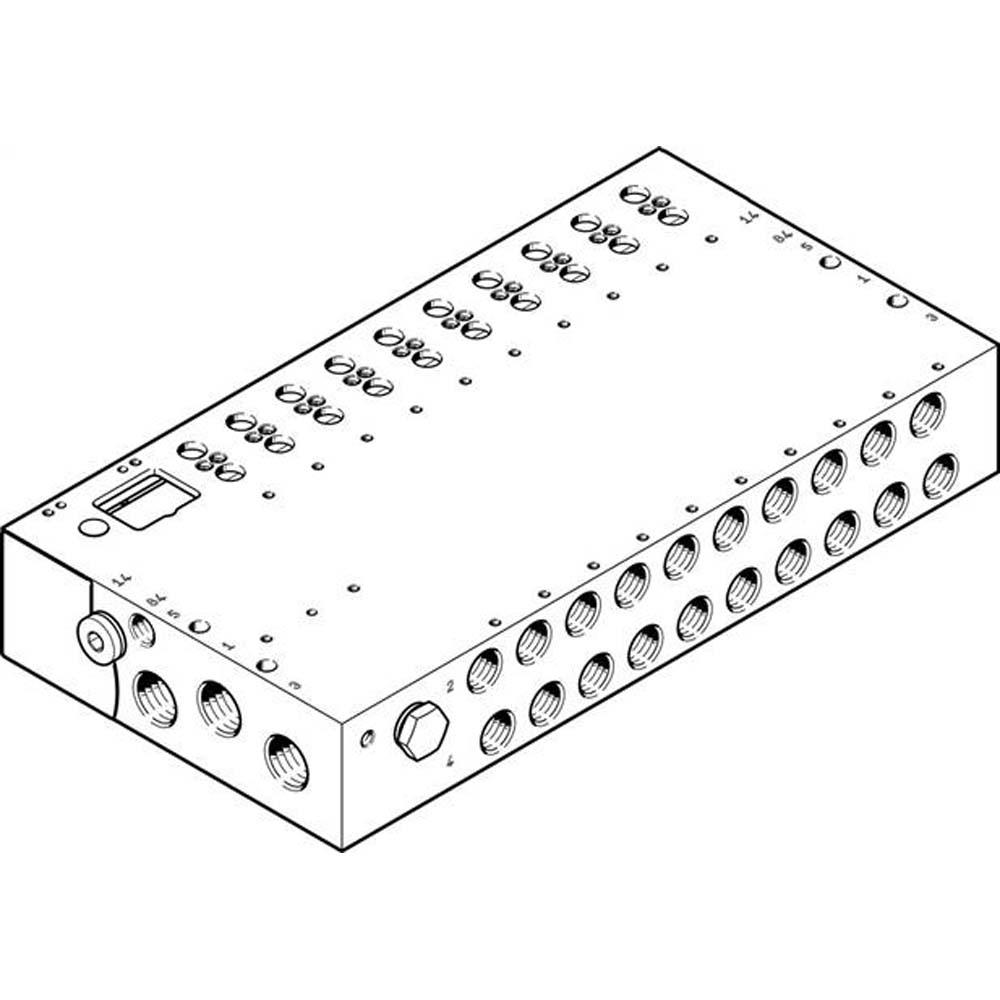

(Exemplary presentation)
| € 561,81 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 14 working days
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
854205948800
Product Description
- The valve terminal base is used in automation technology, pneumatic control, mechanical engineering and manufacturing automation, where modular valve terminals with up to 24 positions are required.
- The Festo valve terminal base with a 19 mm grid is designed for modular valve terminal systems and allows flexible configuration of up to 24 valve positions.
- Thanks to its robust construction made of wrought aluminium alloy, RoHS-compliant materials and approvals according to c CSA us and c UL us, the connection strip is suitable for industrial use with compressed air in accordance with ISO 8573-1.
- The valve island base can be installed anywhere and is optimally prepared for control and main air connections.
- Thanks to its high corrosion resistance class (KBK 2), it is also suitable for environments with moderate stress.
- Material of connection strip – wrought aluminium alloy
- Grid size - 19.0 mm
- Maximum number of valve positions – 4 to 24 (depending on variant)
- Pneumatic connections:
- Connection 1 - G3/8
- Connection 3 - G3/8
- Connection 5 - G3/8
- Control auxiliary air 12/14 - G1/8
- Control exhaust air 82/84 - G1/8
- Material information – RoHS compliant
- Corrosion resistance class - KBK 2 - moderate corrosion exposure
- Installation position – any
- Storage temperature - -20 to +60 °C
- Approval - c UL us - Recognised (OL), c CSA us (OL)
- Price per item
Versions: (14)
Narrow down your selection
Part no.
Valve seats
Weight
Item No.: 854205947800
Type
| Part no. | VABM-L1-18G-G38-4-G (8004899) |
| Valve seats | 4 |
| Weight | 2000 g |
Item No.: 854205947900
Type
| Part no. | VABM-L1-18G-G38-5-G (8004900) |
| Valve seats | 5 |
| Weight | 2200 g |
Item No.: 854205948000
Type
| Part no. | VABM-L1-18G-G38-6-G (8004901) |
| Valve seats | 6 |
| Weight | 2400 g |
Item No.: 854205948100
Type
| Part no. | VABM-L1-18G-G38-7-G (8004902) |
| Valve seats | 7 |
| Weight | 2100 g |
Item No.: 854205948200
Type
| Part no. | VABM-L1-18G-G38-8-G (8004903) |
| Valve seats | 8 |
| Weight | 2600 g |
Item No.: 854205948300
Type
| Part no. | VABM-L1-18G-G38-9-G (8004904) |
| Valve seats | 9 |
| Weight | 2500 g |
Item No.: 854205948400
Type
| Part no. | VABM-L1-18G-G38-10-G (8004905) |
| Valve seats | 10 |
| Weight | 3200 g |
Item No.: 854205948500
Type
| Part no. | VABM-L1-18G-G38-12-G (8004906) |
| Valve seats | 12 |
| Weight | 3100 g |
Item No.: 854205948600
Type
| Part no. | VABM-L1-18G-G38-16-G (8004907) |
| Valve seats | 16 |
| Weight | 4600 g |
Item No.: 854205948700
Type
| Part no. | VABM-L1-18G-G38-20-G (8004908) |
| Valve seats | 20 |
| Weight | 4700 g |
Item No.: 854205948800
Type
| Part no. | VABM-L1-18G-G38-24-G (8004909) |
| Valve seats | 24 |
| Weight | 5000 g |
Item No.: 854205948900
Type
| Part no. | VABM-L1-18G-G38-16-M-G (8004910) |
| Valve seats | 16 |
| Weight | 4600 g |
Item No.: 854205949000
Type
| Part no. | VABM-L1-18G-G38-20-M-G (8004911) |
| Valve seats | 20 |
| Weight | 4700 g |
Item No.: 854205949100
Type
| Part no. | VABM-L1-18G-G38-24-M-G (8004912) |
| Valve seats | 24 |
| Weight | 6000 g |
