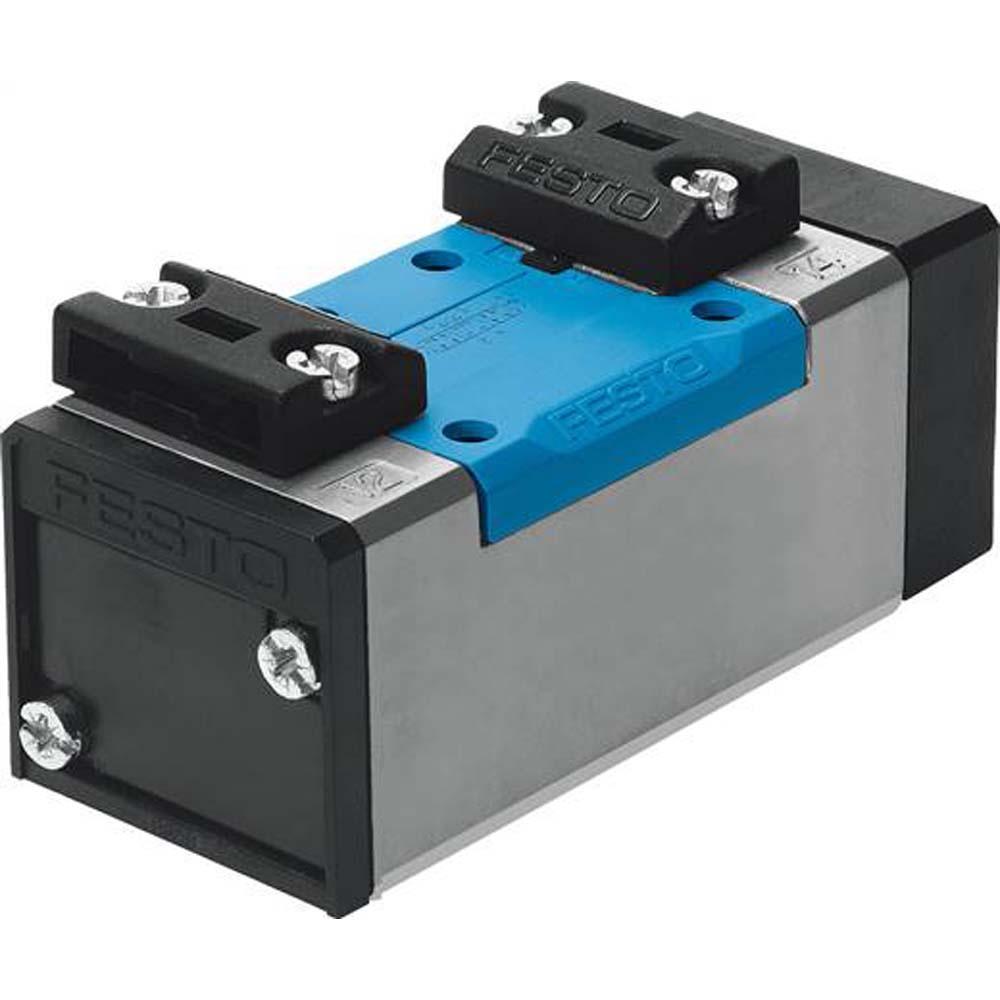

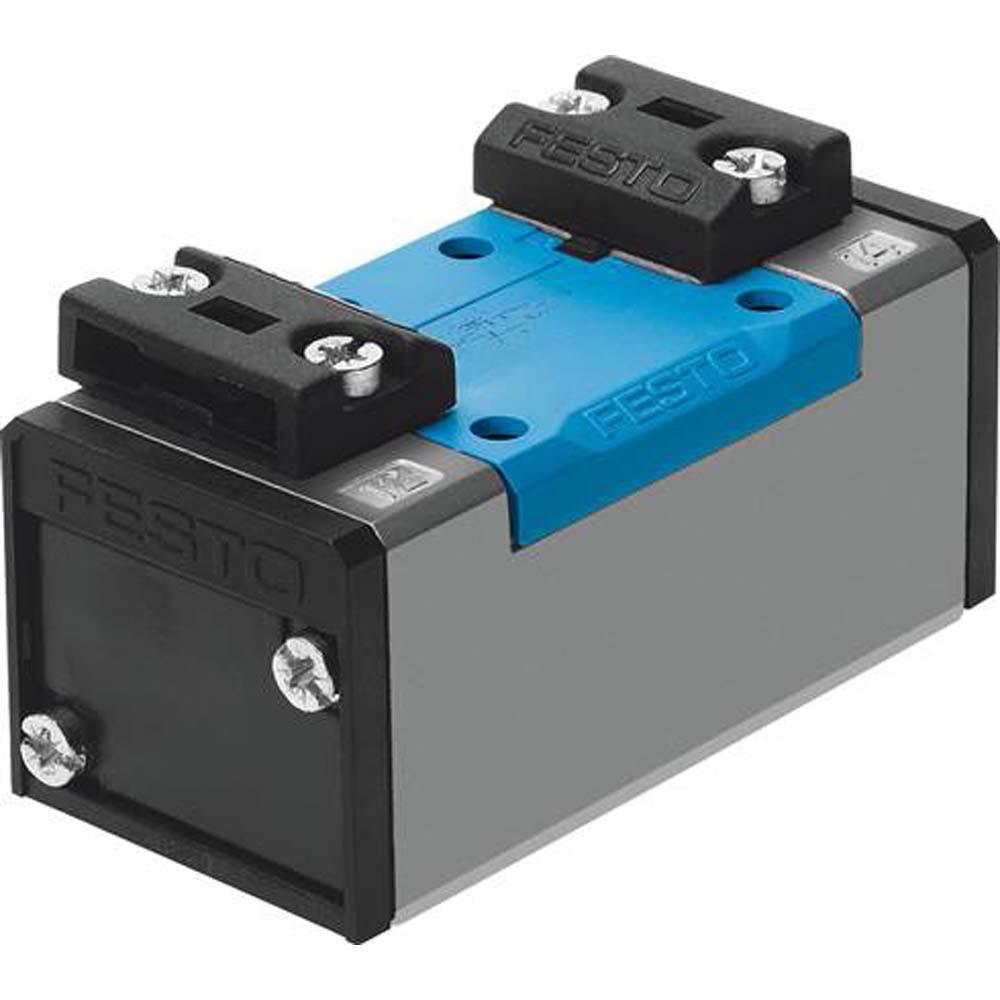

FESTO pneumatic valve VL‑5/2‑D‑2 - 5/2 monostable - aluminium - width 54 mm - PN -0.9 to 16 - price per piece
(Exemplary presentation)
| From € 156,49 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- Ideal for applications in automation, mechanical engineering and process plants where reliable switching and options for explosion-proof environments or flow control are required – e.g. in chemical plants, paint lines, packaging machines or powder coating.
- These Festo valves from the VL‑5/2‑D‑2 series are robust pneumatic 5/2-way valves with monostable spring position.
- The -C-EX variant is certified for use in potentially explosive atmospheres (ATEX II 2GD h IIC/T4), while the -FR‑C models feature additional throttle/flow control.
- All variants are manufactured in accordance with ISO 5599‑1 and comply with the latest industrial standards.
- Function - 5/2-way valve, monostable, pneumatically operated with mechanical spring return
- Valve type - Piston valve; throttleable exhaust air function
- Width - 54 mm, grid dimension ISO 5599‑1 size 2, G3/8 connections
- Normal flow (qn) - approx. 2,300 l/min at Δp = 1 bar, 6 bar inlet pressure
- Operating pressure: −0.9 to 16 bar; control pressure: 3 to 16 bar
- Sealing principle - Soft sealing (HNBR/NBR), RoHS compliant
- Installation position - any; mounting on connection plate with through hole and screw
- Temperature range: −10 to +60 °C (medium & environment); sound pressure level approx. 85 dB(A)
- Corrosion protection - KBK 2 according to Festo specification
- Service life - B10 = 10 million switching cycles, complies with ISO 13849-2 safety requirements
- LABS compliance – VDMA24364‑B1/B2‑L (PWIS-free)
- Nominal width - 11.5 mm
- Grid dimension - 56 mm
- Pneumatic connection - connection plate size 2 according to ISO 5599-1
- Switching time off - 39 ms
- Price per item
Versions: (4)
Narrow down your selection
Model
Operating pressure [bar]
Control pressure [bar]
Flow direction
Switching time on [ms]
Item No.: 854400009872
Type
| Model | VL-5/2-D-2-C |
| Operating pressure [bar] | 2 to 16 |
| Control pressure [bar] | 2 to 16 |
| Flow direction | not reversible |
| Switching time on [ms] | 23 |
Item No.: 854400009873
Type
| Model | VL-5/2-D-2-C-EX |
| Operating pressure [bar] | 2 to 16 |
| Control pressure [bar] | 2 to 16 |
| Flow direction | not reversible |
| Switching time on [ms] | 23 |
Item No.: 854400009874
Type
| Model | VL-5/2-D-2-FR-C |
| Operating pressure [bar] | -0.9 to 16 |
| Control pressure [bar] | 3 to 16 |
| Flow direction | reversible |
| Switching time on [ms] | 11 |
Item No.: 854400009875
Type
| Model | VL-5/2-D-2-FR-C-EX |
| Operating pressure [bar] | -0.9 to 16 |
| Control pressure [bar] | 3 to 16 |
| Flow direction | reversible |
| Switching time on [ms] | 11 |
