Item No.:
9799PVSM38NP
Product Description

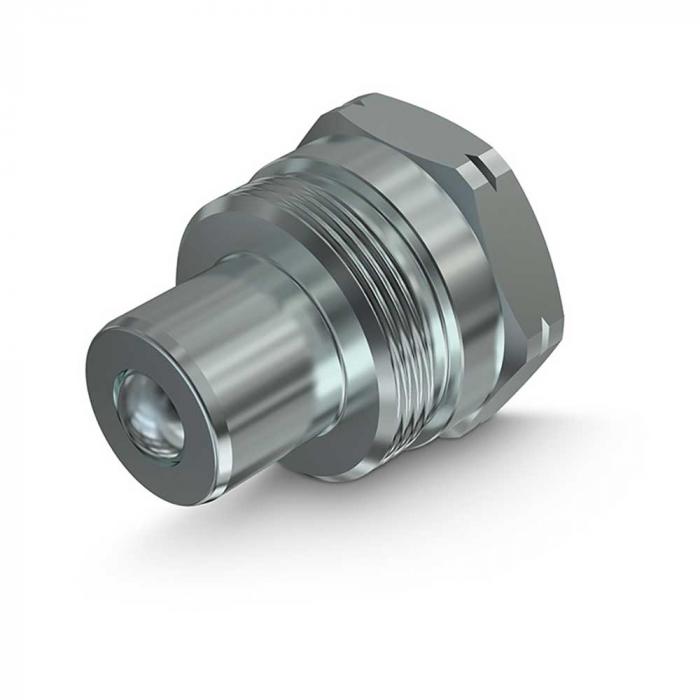

- The Faster PVSM connector is ideal for the screw connection of hoses and pipes in industry.
- The plug is made of chrome-plated steel and the seal is made of nitrile rubber.
- The PVSM series screw coupling is equipped with a robust ball valve and has been specially developed for particularly high operating pressures. Furthermore, the coupling can be coupled under residual pressure.
- The coupling is interchangeable in accordance with ISO 14540.
- Body material - chrome-plated steel
- Seal material - NBR
- Nominal diameter - 10
- Size - 06
- Plug length - 39 mm
- Connection thread - NPT 3/8" IG
- Outer Ø plug - 19 mm
- Width across flats - 32 mm
- max. operating pressure - 720 bar
- Temperature range - -25 to +125 °C
- Resistance to red rust - 500 hours
- Standard - ISO 14540
