Festo valve terminal base – VABM-L1-18W-G38 series – 19 mm grid – up to 24 valve positions – price per unit

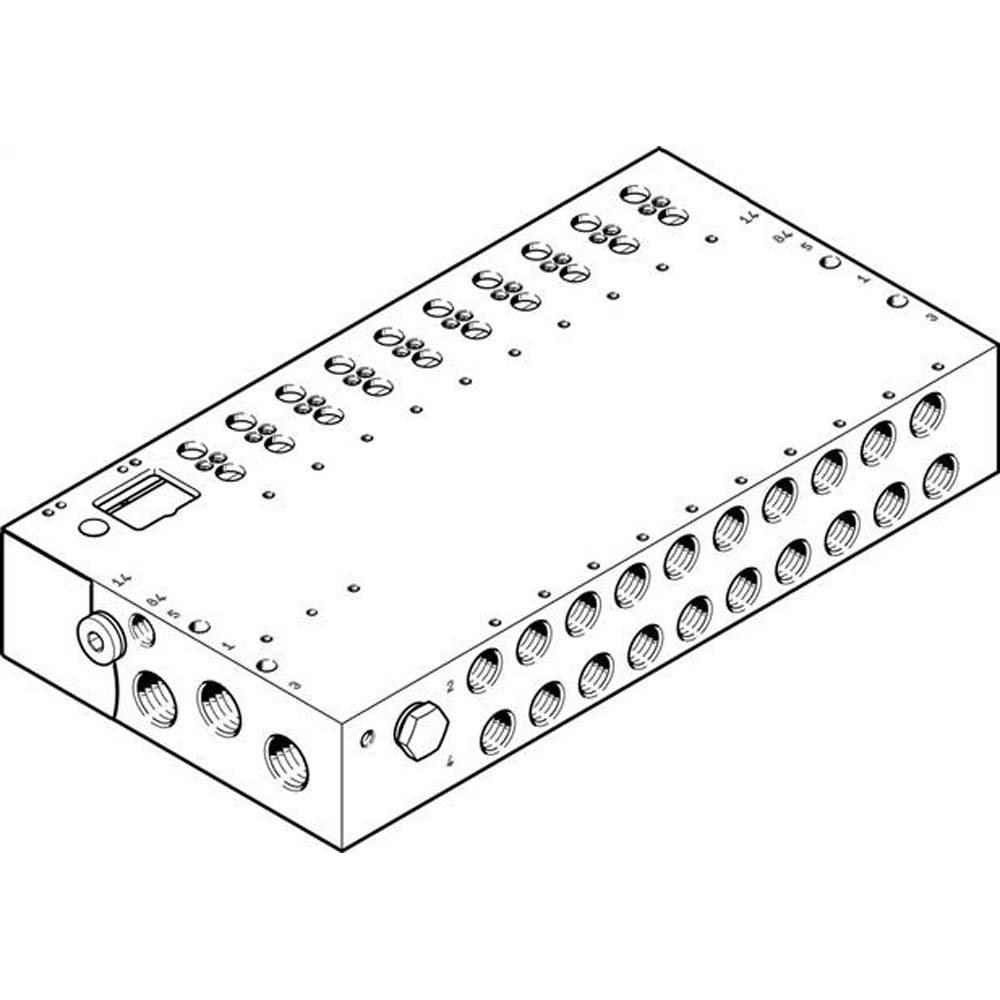

(Exemplary presentation)
| € 585,81 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 14 working days
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
854205950200
Product Description
- The valve terminal base is used in automation technology, pneumatic control, mechanical engineering and manufacturing automation, where modular valve terminals with up to 24 positions are required.
- The Festo valve terminal base with a 19 mm grid is designed for modular valve terminal systems and allows flexible configuration of up to 24 valve positions.
- Thanks to its robust construction made of wrought aluminium alloy, RoHS-compliant materials and approvals according to c CSA us and c UL us, the connection strip is suitable for industrial use with compressed air in accordance with ISO 8573-1.
- The valve island base can be installed anywhere and is optimally prepared for control and main air connections.
- Thanks to its high corrosion resistance class (KBK 2), it is also suitable for environments with moderate stress.
- Material of connection strip – wrought aluminium alloy
- Grid size - 19 mm
- Maximum number of valve positions – 4 to 24 (depending on variant)
- Approval - c CSA us (OL), c UL us - Recognised (OL)
- Corrosion resistance class KBK - 2 – moderate corrosion exposure
- Installation position – any
- Storage temperature - -20 to +60 °C
- Pneumatic connections Main air:
- Connection 1 - G3/8
- Connection 3 - G3/8
- Connection 5 - G3/8
- Pneumatic connections Working air:
- Connection 2 - G1/4
- Connection 4 - G1/4
- Control air connections:
- Auxiliary air 12/14 - G1/8
- Control exhaust air 82/84 - G1/8
- Material information – RoHS compliant
- Price per item
Versions: (14)
Narrow down your selection
Part no.
Valve seats
Weight
Item No.: 854205949200
Type
| Part no. | VABM-L1-18W-G38-4-G (8004913) |
| Valve seats | 4 |
| Weight | 1369 g |
Item No.: 854205949300
Type
| Part no. | VABM-L1-18W-G38-5-G (8004914) |
| Valve seats | 5 |
| Weight | 1546 g |
Item No.: 854205949400
Type
| Part no. | VABM-L1-18W-G38-6-G (8004915) |
| Valve seats | 6 |
| Weight | 1723 g |
Item No.: 854205949500
Type
| Part no. | VABM-L1-18W-G38-7-G (8004916) |
| Valve seats | 7 |
| Weight | 1900 g |
Item No.: 854205949600
Type
| Part no. | VABM-L1-18W-G38-8-G (8004917) |
| Valve seats | 8 |
| Weight | 2077 g |
Item No.: 854205949700
Type
| Part no. | VABM-L1-18W-G38-9-G (8004918) |
| Valve seats | 9 |
| Weight | 2254 g |
Item No.: 854205949800
Type
| Part no. | VABM-L1-18W-G38-10-G (8004919) |
| Valve seats | 10 |
| Weight | 2431 g |
Item No.: 854205949900
Type
| Part no. | VABM-L1-18W-G38-12-G (8004920) |
| Valve seats | 12 |
| Weight | 2785 g |
Item No.: 854205950000
Type
| Part no. | VABM-L1-18W-G38-16-G (8004921) |
| Valve seats | 16 |
| Weight | 3493 g |
Item No.: 854205950100
Type
| Part no. | VABM-L1-18W-G38-20-G (8004922) |
| Valve seats | 20 |
| Weight | 4201 g |
Item No.: 854205950200
Type
| Part no. | VABM-L1-18W-G38-24-G (8004923) |
| Valve seats | 24 |
| Weight | 4909 g |
Item No.: 854205950300
Type
| Part no. | VABM-L1-18W-G38-16-M-G (8004924) |
| Valve seats | 16 |
| Weight | 3493 g |
Item No.: 854205950400
Type
| Part no. | VABM-L1-18W-G38-20-M-G (8004925) |
| Valve seats | 20 |
| Weight | 4201 g |
Item No.: 854205950500
Type
| Part no. | VABM-L1-18W-G38-24-M-G (8004926) |
| Valve seats | 24 |
| Weight | 4909 g |
