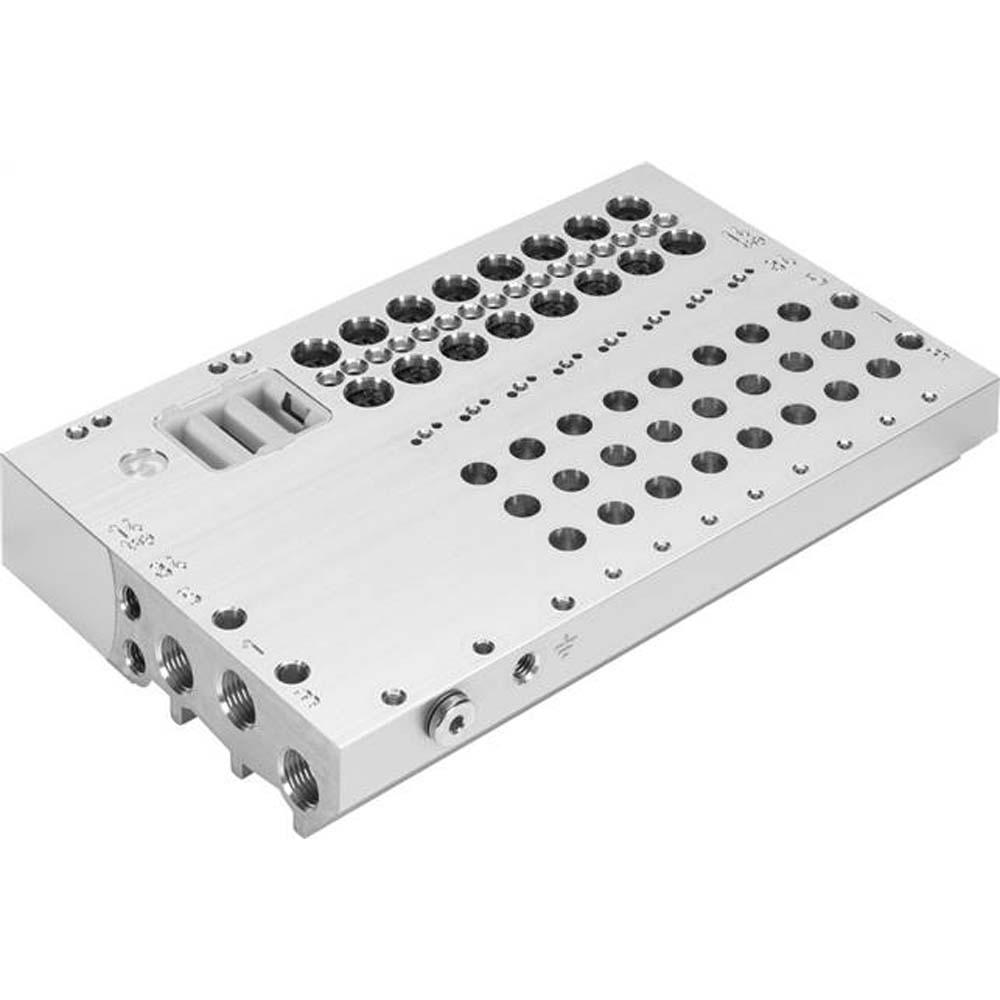

Festo valve terminal connection strip – Series VABM-L1-10G-G18-x-GR – Grid size 10.5 mm – max. 24 valve positions – Price per piece
(Exemplary presentation)
| From € 104,06 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The Festo valve terminal is used in automation technology, pneumatic control, mechanical engineering and manufacturing automation, where modular valve terminals with up to 24 ports are required.
- The connection strips are made of high-quality wrought aluminium alloy and comply with the RoHS directive.
- Standardised connections (G1/8, M5) enable universal use in mechanical and plant engineering.
- The connection strips have the international approvals c CSA us (OL) and c UL us - Recognised (OL).
- Thanks to their compact 10.5 mm grid dimension, they are ideal for applications with limited installation space.
- Grid size - 10.5 mm
- Approval: c CSA us (OL), c UL us - Recognised (OL)
- Corrosion resistance class KBK - 2 (moderate corrosion exposure)
- Pneumatic connection 1/3/5 - G1/8
- Control air connection 12/14 - M5
- Control exhaust connection 82/84 - M5
- Material of connection strip – wrought aluminium alloy
- Material information – RoHS compliant
- Installation position – any
- Storage temperature - -20 to +60 °C
- Price per item
Versions: (14)
Narrow down your selection
Part no.
Valve seats
Weight
| Article No. | Part no. | Valve seats | Weight | Price incl. VAT | |||||
|---|---|---|---|---|---|---|---|---|---|
|
854203633600 | VABM-L1-10G-G18-4-GR (573423) | max. 4 | 440 g |
|
||||
|
|||||||||
|
854203633700 | VABM-L1-10G-G18-5-GR (573424) | max. 5 | 470 g |
|
||||
|
|||||||||
|
854203633800 | VABM-L1-10G-G18-6-GR (573425) | max. 6 | 950 g |
|
||||
|
|||||||||
|
854203633900 | VABM-L1-10G-G18-7-GR (573426) | max. 7 | 430 g |
|
||||
|
|||||||||
|
854203634000 | VABM-L1-10G-G18-8-GR (573427) | max. 8 | 1000 g |
|
||||
|
|||||||||
|
854203634100 | VABM-L1-10G-G18-9-GR (573428) | max. 9 | 1100 g |
|
||||
|
|||||||||
|
|
854203632800 | VABM-L1-10G-G18-10-GR (573429) | max. 10 | 650 g |
|
||||
|
|||||||||
|
854203632900 | VABM-L1-10G-G18-12-GR (573430) | max. 12 | 700 g |
|
||||
|
|||||||||
|
854203633000 | VABM-L1-10G-G18-16-GR (573431) | max. 16 | 1300 g |
|
||||
|
|||||||||
|
854203633200 | VABM-L1-10G-G18-20-GR (573432) | max. 20 | 1200 g |
|
||||
|
|||||||||
|
854203633400 | VABM-L1-10G-G18-24-GR (573433) | max. 24 | 1300 g |
|
||||
|
|||||||||
|
854203633100 | VABM-L1-10G-G18-16-M-GR (573927) | max. 16 | 850 g |
|
||||
|
|||||||||
|
854203633300 | VABM-L1-10G-G18-20-M-GR (573928) | max. 20 | 850 g |
|
||||
|
|||||||||
|
854203633500 | VABM-L1-10G-G18-24-M-GR (573929) | max. 24 | 1000 g |
|
||||
|
|||||||||
