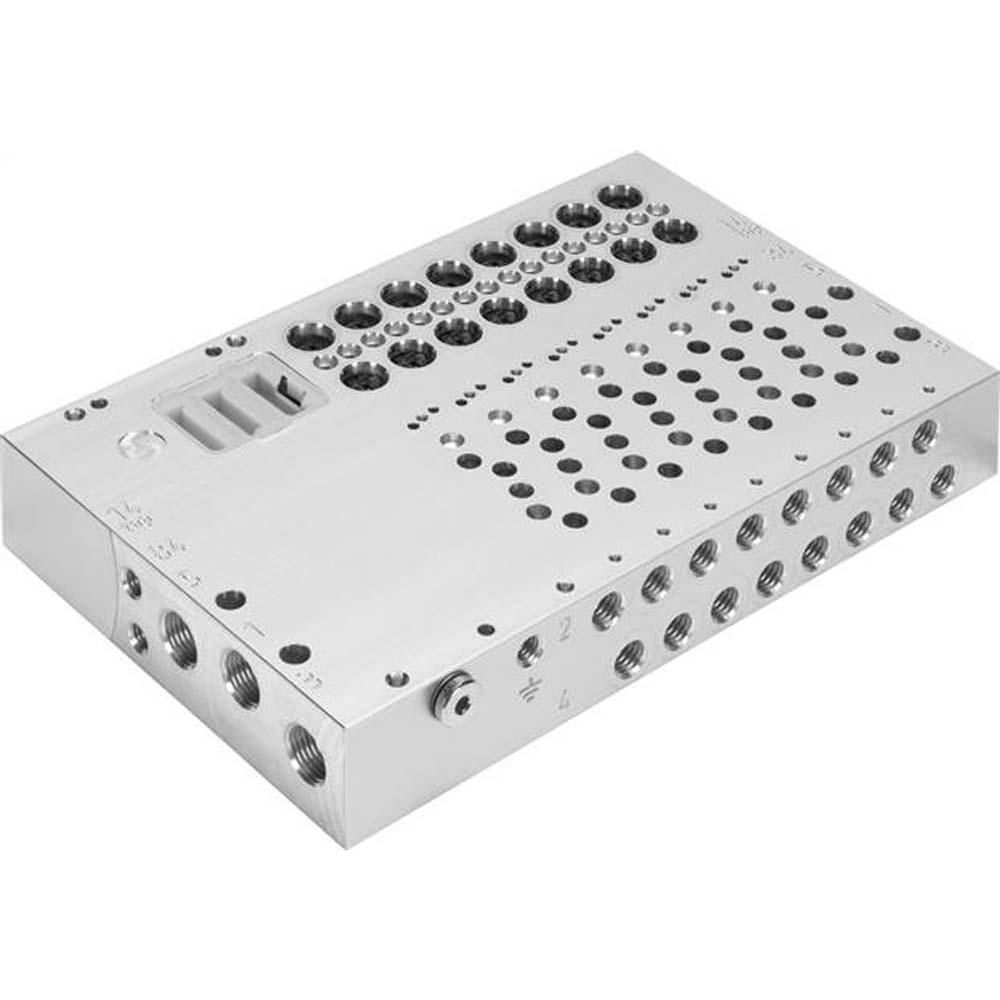

Festo valve terminal connection strip – Series VABM-L1-10HW-G18-x-GR – Grid size 10.5 mm – Max. 24 valve positions – Price per piece
(Exemplary presentation)
| From € 115,24 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The Festo valve terminal is used in automation technology, pneumatic control, mechanical engineering and manufacturing automation, where modular valve terminals with up to 24 ports are required.
- The connection strips are designed to enable the operation of up to 24 valve positions.
- All variants are equipped with standardised pneumatic connections (G1/4 and M5) and can be installed as required.
- Thanks to their c CSA us (OL) and c UL us – Recognised (OL) approvals, they can be used internationally.
- Grid size - 10.5 mm
- Approval - c CSA us (OL), c UL us - Recognised (OL)
- Corrosion resistance class KBK - 2 (moderate corrosion exposure)
- Pneumatic connection 1/3/5 - G1/8
- Pneumatic connection 2/4 - M7
- Control air connection 12/14 - M5
- Control exhaust connection 82/84 - M5
- Material of connection strip – wrought aluminium alloy
- Material information – RoHS compliant
- Installation position – any
- Storage temperature: -20 °C to +60 °C
- Price per item
Versions: (14)
Narrow down your selection
Part no.
Valve seats
Weight
| Article No. | Part no. | Valve seats | Weight | Price incl. VAT | |||||
|---|---|---|---|---|---|---|---|---|---|
|
854203635000 | VABM-L1-10HW-G18-4-GR (573434) | max. 4 | 950 g |
|
||||
|
|||||||||
|
854203635100 | VABM-L1-10HW-G18-5-GR (573435) | max. 5 | 550 g |
|
||||
|
|||||||||
|
854203635200 | VABM-L1-10HW-G18-6-GR (573436) | max. 6 | 1100 g |
|
||||
|
|||||||||
|
854203635300 | VABM-L1-10HW-G18-7-GR (573437) | max. 7 | 1100 g |
|
||||
|
|||||||||
|
854203635400 | VABM-L1-10HW-G18-8-GR (573438) | max. 8 | 1100 g |
|
||||
|
|||||||||
|
854203635500 | VABM-L1-10HW-G18-9-GR (573439) | max. 9 | 1200 g |
|
||||
|
|||||||||
|
|
854203634200 | VABM-L1-10HW-G18-10-GR (573440) | max. 10 | 1200 g |
|
||||
|
|||||||||
|
854203634300 | VABM-L1-10HW-G18-12-GR (573441) | max. 12 | 1300 g |
|
||||
|
|||||||||
|
854203634400 | VABM-L1-10HW-G18-16-GR (573442) | max. 16 | 1400 g |
|
||||
|
|||||||||
|
854203634600 | VABM-L1-10HW-G18-20-GR (573443) | max. 20 | 1600 g |
|
||||
|
|||||||||
|
854203634800 | VABM-L1-10HW-G18-24-GR (573444) | max. 24 | 1500 g |
|
||||
|
|||||||||
|
854203634500 | VABM-L1-10HW-G18-16-M-GR (573930) | max. 16 | 1000 g |
|
||||
|
|||||||||
|
854203634700 | VABM-L1-10HW-G18-20-M-GR (573931) | max. 20 | 1300 g |
|
||||
|
|||||||||
|
854203634900 | VABM-L1-10HW-G18-24-M-GR (573932) | max. 24 | 1500 g |
|
||||
|
|||||||||
