Festo valve terminal connection strip – Series VABM-L1-10HWS1-G18-x-GR – Grid size 10.5 mm – max. 24 valve positions – Price per piece

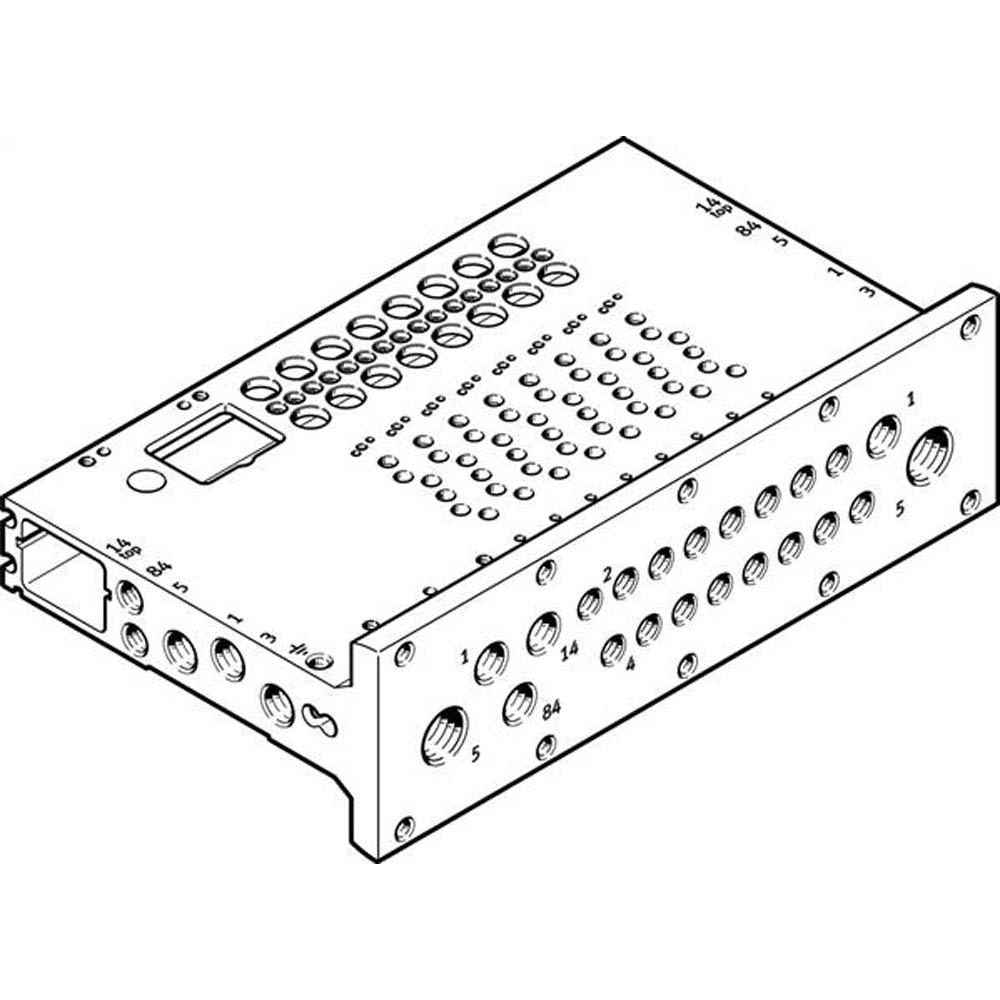

(Exemplary presentation)
| € 611,44 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 14 working days
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
854207096600
Type
| Part no. | VABM-L1-10HWS2-G18-24-GR (8058341) |
| Valve seats | max. 24 |
| Weight | 2600 g |
Product Description
- The Festo valve terminal is used in automation technology, pneumatic control, mechanical engineering and manufacturing automation, where modular valve terminals with up to 24 ports are required.
- Festo connection strips with a grid size of 10.5 mm are compact and robust distribution solutions for valve islands.
- With up to 24 valve ports, they enable the flexible design of pneumatic control systems in mechanical and plant engineering.
- Manufactured from high-quality wrought aluminium alloy and RoHS-compliant, they meet modern standards.
- The strips can be installed anywhere, offer connections for control and working air (G1/4, G1/8, M5) and are also suitable for international use thanks to their approvals (c UL us, c CSA us).
- Thanks to their KBK 2 corrosion resistance class, they can also be used reliably in mildly corrosive environments.
- Grid size - 10.5 mm
- Approvals - c CSA us (OL), c UL us - Recognised (OL)
- Corrosion resistance class KBK - 2 (moderate corrosion exposure)
- Pneumatic connection 1/3/5 - G1/8
- Pneumatic connection 2/4 - M7
- Control air connection 12/14 - M5
- Control exhaust connection 82/84 - M5
- Material of connection strip – wrought aluminium alloy
- Material information – RoHS compliant
- Installation position – any
- Storage temperature - -20 to +60 °C
- Price per item
Versions: (6)
Narrow down your selection
Part no.
Valve seats
Weight
Item No.: 854207096100
Type
| Part no. | VABM-L1-10HWS1-G18-4-GR (8058335) |
| Valve seats | max. 4 |
| Weight | 1200 g |
Item No.: 854207096200
Type
| Part no. | VABM-L1-10HWS1-G18-8-GR (8058336) |
| Valve seats | max. 8 |
| Weight | 1400 g |
Item No.: 854207096300
Type
| Part no. | VABM-L1-10HWS2-G18-8-GR (8058338) |
| Valve seats | max. 8 |
| Weight | 1200 g |
Item No.: 854207096400
Type
| Part no. | VABM-L1-10HWS2-G18-12-GR (8058339) |
| Valve seats | max. 12 |
| Weight | 1300 g |
Item No.: 854207096500
Type
| Part no. | VABM-L1-10HWS2-G18-16-GR (8058340) |
| Valve seats | max. 16 |
| Weight | 1900 g |
Item No.: 854207096600
Type
| Part no. | VABM-L1-10HWS2-G18-24-GR (8058341) |
| Valve seats | max. 24 |
| Weight | 2600 g |
