Festo valve terminal connection strip – Series VABM-L1-14G-G14-x-GR – Grid size 16.0 mm – max. 24 valve positions – Price per piece

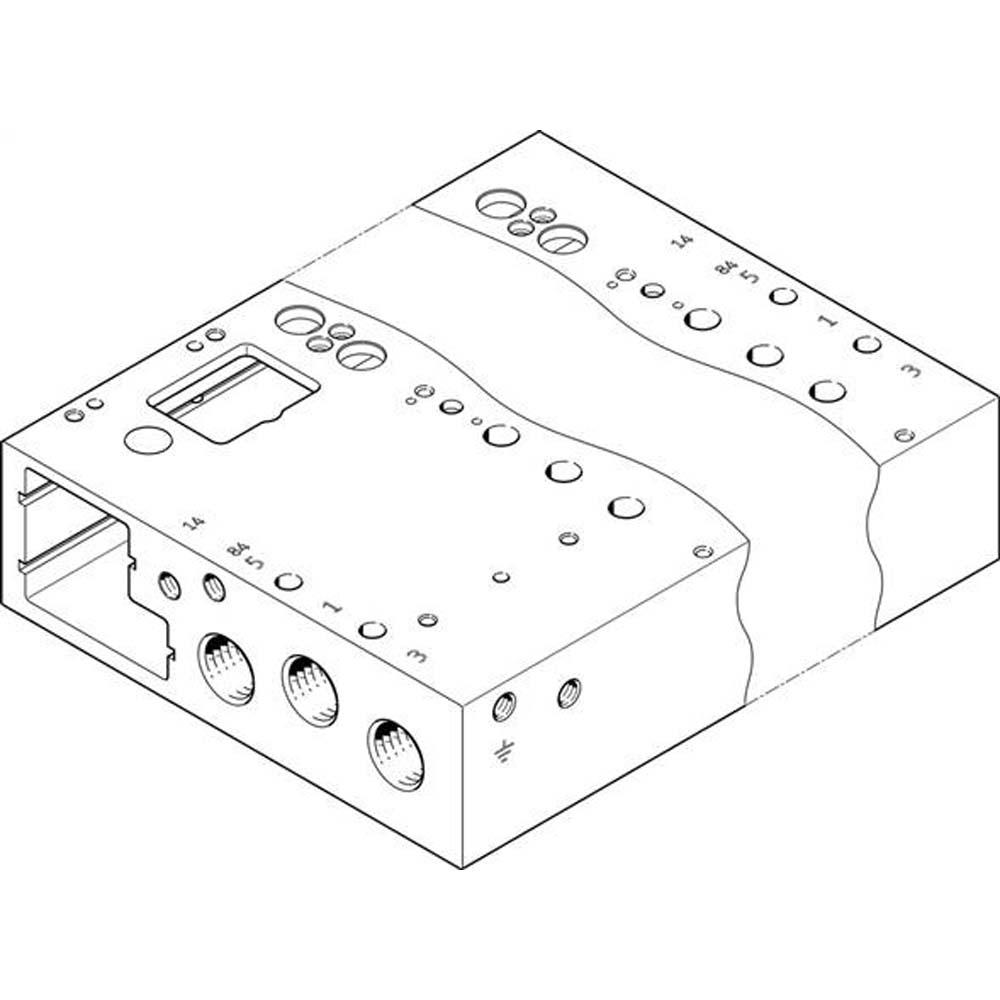

(Exemplary presentation)
| From € 121,64 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The Festo valve terminal is used in automation technology, pneumatic control, mechanical engineering and manufacturing automation, where modular valve terminals with up to 24 ports are required.
- The connection strips are designed to enable the operation of up to 24 valve positions.
- All variants are equipped with standardised pneumatic connections (G1/4 and M5) and can be installed as required.
- Thanks to their c CSA us (OL) and c UL us – Recognised (OL) approvals, they can be used internationally.
- Grid size - 16.0 mm
- Approval - c CSA us (OL), c UL us - Recognised (OL)
- Corrosion resistance class KBK - 2 (moderate corrosion exposure)
- Pneumatic connection 1/3/5 - G1/4
- Pneumatic connection 2/4 - G1/8
- Control air connection 12/14 - M5
- Control exhaust connection 82/84 - M5
- Material of connection strip – wrought aluminium alloy
- Material information – RoHS compliant
- Installation position – any
- Storage temperature - -20 to +60 °C
- Price per item
Versions: (14)
Narrow down your selection
Part no.
Valve seats
Weight
| Article No. | Part no. | Valve seats | Weight | Price incl. VAT | |||||
|---|---|---|---|---|---|---|---|---|---|
|
854203926300 | VABM-L1-14G-G14-4-GR (573489) | max. 4 | 1400 g |
|
||||
|
|||||||||
|
854203915100 | VABM-L1-14G-G14-5-GR (573490) | max. 5 | 1300 g |
|
||||
|
|||||||||
|
854203912600 | VABM-L1-14G-G14-6-GR (573491) | max. 6 | 1700 g |
|
||||
|
|||||||||
|
854203910000 | VABM-L1-14G-G14-7-GR (573492) | max. 7 | 1500 g |
|
||||
|
|||||||||
|
854203907800 | VABM-L1-14G-G14-8-GR (573493) | max. 8 | 2000 g |
|
||||
|
|||||||||
|
854203904900 | VABM-L1-14G-G14-9-GR (573494) | max. 9 | 1400 g |
|
||||
|
|||||||||
|
854203901600 | VABM-L1-14G-G14-10-GR (573495) | max. 10 | 2100 g |
|
||||
|
|||||||||
|
854203895400 | VABM-L1-14G-G14-12-GR (573496) | max. 12 | 2200 g |
|
||||
|
|||||||||
|
854203887900 | VABM-L1-14G-G14-16-GR (573497) | max. 16 | 2800 g |
|
||||
|
|||||||||
|
854203880700 | VABM-L1-14G-G14-20-GR (573498) | max. 20 | 3100 g |
|
||||
|
|||||||||
|
|
854203874500 | VABM-L1-14G-G14-24-GR (573499) | max. 24 | 3500 g |
|
||||
|
|||||||||
|
854203888000 | VABM-L1-14G-G14-16-M-GR (573933) | max. 16 | 2600 g |
|
||||
|
|||||||||
|
854203880800 | VABM-L1-14G-G14-20-M-GR (573934) | max. 20 | 2700 g |
|
||||
|
|||||||||
|
854203874600 | VABM-L1-14G-G14-24-M-GR (573935) | max. 24 | 3500 g |
|
||||
|
|||||||||
