Festo valve terminal connection strip – Series VABM-L1-14HWSx-G14-x-GR – Grid size 16.0 mm – max. 24 valve positions – Price per piece

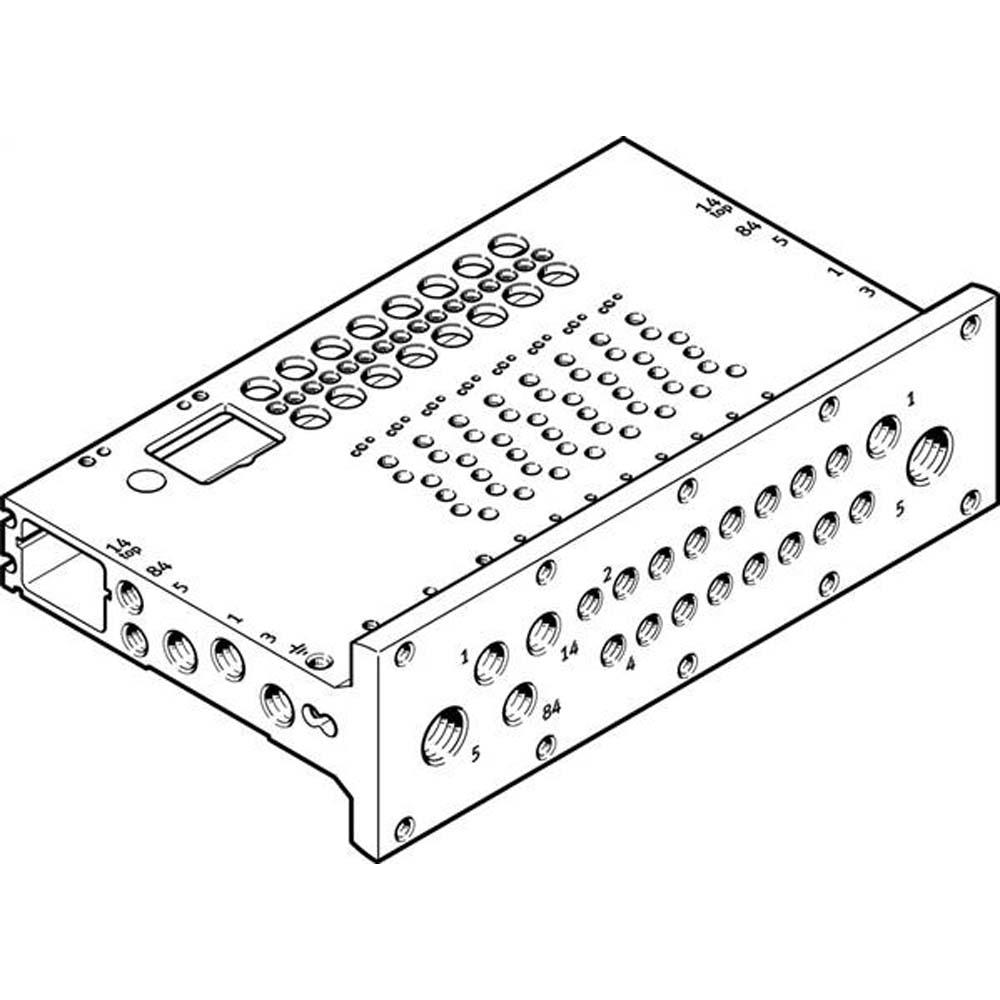

(Exemplary presentation)
| € 685,06 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 14 working days
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
854207097200
Type
| Part no. | VABM-L1-14HWS2-G14-24-GR (8058347) |
| Valve seats | max. 24 |
| Weight | 3800 g |
Product Description
- The Festo valve terminal is used in automation technology, pneumatic control, mechanical engineering and manufacturing automation, where modular valve terminals with up to 24 ports are required.
- The valve island connection strip is suitable for control air and working air systems in accordance with ISO 8573-1.
- Festo connection strips with a grid size of 16 mm are compact and robust distribution solutions for valve islands.
- With up to 24 valve ports, they enable the flexible design of pneumatic control systems in mechanical and plant engineering.
- Manufactured from high-quality wrought aluminium alloy and RoHS-compliant, they meet modern standards.
- The strips can be installed anywhere, offer connections for control and working air (G1/4, G1/8, M5) and are also suitable for international use thanks to their approvals (c UL us, c CSA us).
- Thanks to their KBK 2 corrosion resistance class, they can also be used reliably in mildly corrosive environments.
- Grid size - 16 mm
- Maximum number of valve positions - 4 to 24
- Pneumatic connection 1, 3, 5 - G1/4
- Pneumatic connection 2, 4 - G1/8
- Control air connection 12/14 - M5
- Control exhaust connection 82/84 - M5
- Material of connection strip – wrought aluminium alloy
- Material information – RoHS compliant
- Installation position – any
- Storage temperature - -20 to +60 °C
- Approvals - c CSA US (OL), c UL US - Recognised (OL)
- Corrosion resistance class KBK - 2 – moderate corrosion exposure
- Price per item
Versions: (6)
Narrow down your selection
Part no.
Valve seats
Weight
Item No.: 854207096700
Type
| Part no. | VABM-L1-14HWS1-G14-4-GR (8058342) |
| Valve seats | max. 4 |
| Weight | 1600 g |
Item No.: 854207096800
Type
| Part no. | VABM-L1-14HWS1-G14-8-GR (8058343) |
| Valve seats | max. 8 |
| Weight | 2200 g |
Item No.: 854207096900
Type
| Part no. | VABM-L1-14HWS2-G14-8-GR (8058344) |
| Valve seats | max. 8 |
| Weight | 2600 g |
Item No.: 854207097000
Type
| Part no. | VABM-L1-14HWS2-G14-12-GR (8058345) |
| Valve seats | max. 12 |
| Weight | 3000 g |
Item No.: 854207097100
Type
| Part no. | VABM-L1-14HWS2-G14-16-GR (8058346) |
| Valve seats | max. 16 |
| Weight | 3800 g |
Item No.: 854207097200
Type
| Part no. | VABM-L1-14HWS2-G14-24-GR (8058347) |
| Valve seats | max. 24 |
| Weight | 3800 g |
