Festo valve terminal connection strip – Series VABM-L1-14W-G14-x-GR – Grid size 16.0 mm – max. 24 valve positions – Price per piece

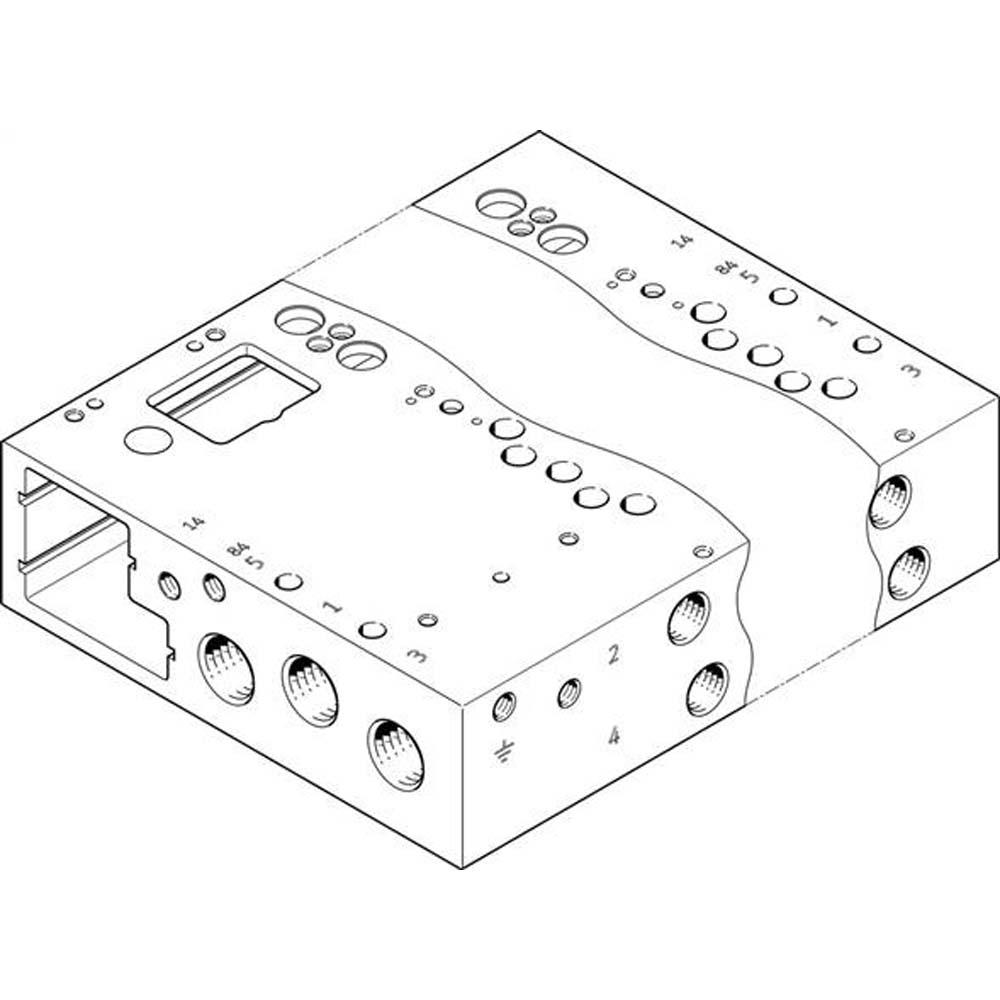

(Exemplary presentation)
| From € 132,86 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The Festo valve terminal is used in automation technology, pneumatic control, mechanical engineering and manufacturing automation, where modular valve terminals with up to 24 ports are required.
- The valve island connection strip is suitable for control air and working air systems in accordance with ISO 8573-1.
- Festo connection strips with a grid dimension of 16.0 mm are robust distribution solutions for valve terminals.
- They enable the connection of up to 24 valves and feature a compact design made of high-quality wrought aluminium alloy.
- Compliance with international approvals (c UL us, c CSA us) and corrosion resistance class KBK 2 make the connection strips suitable for demanding industrial applications.
- The valve islands are RoHS-compliant, designed for any installation position and easy to integrate into existing pneumatic systems.
- Grid size - 16.0 mm
- Maximum number of valve positions - 24
- Pneumatic connection 1, 3, 5 - G1/4
- Pneumatic connection 2, 4 - G1/8
- Control air connection 12/14 - M5
- Control exhaust connection 82/84 - M5
- Material of connection strip – wrought aluminium alloy
- Material information – RoHS compliant
- Installation position – any
- Storage temperature - -20 to +60 °C
- Approvals - c CSA US (OL), c UL US - Recognised (OL)
- Corrosion resistance class KBK - 2 – moderate corrosion exposure
- Price per item
Versions: (14)
Narrow down your selection
Part no.
Valve seats
Weight
| Article No. | Part no. | Valve seats | Weight | Price incl. VAT | |||||
|---|---|---|---|---|---|---|---|---|---|
|
854203916800 | VABM-L1-14W-G14-4-GR (573500) | max. 4 | 1400 g |
|
||||
|
|||||||||
|
854203913300 | VABM-L1-14W-G14-5-GR (573501) | max. 5 | 1500 g |
|
||||
|
|||||||||
|
854203911100 | VABM-L1-14W-G14-6-GR (573502) | max. 6 | 1600 g |
|
||||
|
|||||||||
|
854203908600 | VABM-L1-14W-G14-7-GR (573503) | max. 7 | 1400 g |
|
||||
|
|||||||||
|
854203905200 | VABM-L1-14W-G14-8-GR (573504) | max. 8 | 1900 g |
|
||||
|
|||||||||
|
854203902300 | VABM-L1-14W-G14-9-GR (573505) | max. 9 | 2000 g |
|
||||
|
|||||||||
|
854203898900 | VABM-L1-14W-G14-10-GR (573506) | max. 10 | 2000 g |
|
||||
|
|||||||||
|
854203893600 | VABM-L1-14W-G14-12-GR (573507) | max. 12 | 2200 g |
|
||||
|
|||||||||
|
854203885300 | VABM-L1-14W-G14-16-GR (573508) | max. 16 | 2600 g |
|
||||
|
|||||||||
|
854203878800 | VABM-L1-14W-G14-20-GR (573509) | max. 20 | 2900 g |
|
||||
|
|||||||||
|
|
854203873000 | VABM-L1-14W-G14-24-GR (573510) | max. 24 | 3600 g |
|
||||
|
|||||||||
|
854203885400 | VABM-L1-14W-G14-16-M-GR (573936) | max. 16 | 2500 g |
|
||||
|
|||||||||
|
854203878900 | VABM-L1-14W-G14-20-M-GR (573937) | max. 20 | 2900 g |
|
||||
|
|||||||||
|
854203873100 | VABM-L1-14W-G14-24-M-GR (573938) | max. 24 | 3600 g |
|
||||
|
|||||||||
