GEDORE red socket set - 1/4 inch and 1/2 inch - 100 pieces

€ 298,97
Price incl. VAT
Ex stock within 4 days deliverable

Do you have any questions?
We would like to assist you!
verkauf@esska.de

Item No.:
943014600310
Product Description
  • The 100-piece socket set is suitable for a variety of applications.
Application
  • The reversible ratchet has a clockwise / anti-clockwise rotation and can be switched by a lever, push-button release, fine-toothed, oval head.
  • The 2-component handle ensures a hand-friendly power transmission, for socket wrench inserts.
  • Socket insert 1/4 inch and 1/2 inch, hexagonal, metric, design according to DIN 3124, ISO 2725.
  • T-handle with slider 1/4 inch, design according to DIN 3122, ISO 3315.
  • Universal joint 1/4 inch and 1/2 inch screwed, design according to DIN 3123 - C 12,5.
  • The 1/4 inch bit adapter, with inside hexagon and inside hexagon, is suitable for all bits and tools with 1/4 inch hexagon socket.
  • Bit 1/4 inch, hexagon, slot, PH, PZ, TX is suitable for holders according to DIN ISO 1173 - D 6.3.
  • Combination wrench, metric, design according to DIN 3113, form A, ISO 3318, ISO 7738, ring side is angled 15 °, jaw position 15 °.
  • The set of angle wrenches is 9-piece, stowed in plastic insert holder, with ball head, for hexagon socket screws.
  • Adjustable wrench, jaw position 15 °, the head is polished with a graduated scale.
  • 1K screwdriver slot, PH.
  • The side cutter has a 2-component handle for a hand-friendly power transmission.
  • The flat nose pliers have straight gripping surfaces, serrated and have a 2-component handle for a hand-friendly power transmission.
  • The water pump pliers are 7-fold adjustable, head and trade are polished, the 2-component handle ensures a hand-friendly power transmission.
  • The mallet hammer made of tempered steel has a black painted forged hammer head.

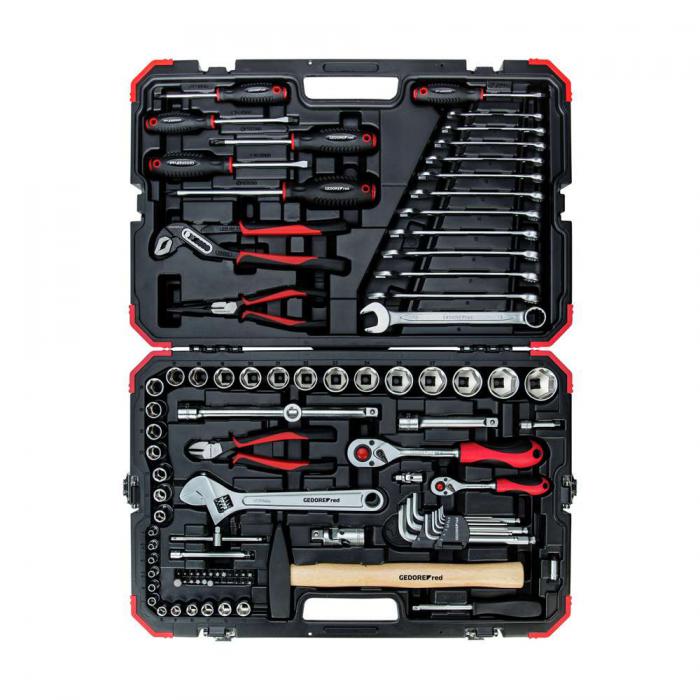

  • The kit comes in a plastic case in GEDORE red design with metal hinges and locks with anti-pinch tools.
Technical Data
  • Material - chrome vanadium steel, matt satined chrome
  • Weight case - 10 kg
  • Dimensions case (L x W x H) - 553 x 360 x 105 mm
  • Connecting square according to DIN 3120, ISO 1174, with ball lock
  • Internal square drive according to DIN 3120, ISO 1174, with ball-catching groove
  • 1/4 "2K lever reversible ratchet fine toothed, 72 teeth, 150 mm
  • 1/4 "4-cornered handle, 165 mm
  • 1/4 "socket wrench hexagon socket SW 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13 mm
  • 1/4 "socket wrench extension 50, 100 mm
  • 1/4 "T-handle with slider, 115 mm
  • 1/4 "universal joint, 32 mm
  • Bit adapter 1/4 "4x 1/4" hex, 25 mm
  • 1/4 "bits hexagon socket 3, 4, 5, 6, 8, 10, 25 mm
  • 1/4 "bits slotted 4, 5, 5, 7, 25 mm
  • 1/4 "bits Phillips PH 1, 2, 3, 4, 25 mm
  • 1/4 "bits Phillips PZ 1, 2, 3, 25 mm
  • 1/4 "bits TX T8, T10, T15, T20, T25, T27, T30, T40, 25 mm
  • 1/2 "2K lever reversible ratchet fine toothed, 72 teeth, 250 mm
  • 1/2 "socket wrench hexagon SW 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 28, 30, 32 mm
  • 1/2 "socket wrench extension 125, 250 mm
  • 1/2 "universal joint, 65 mm
  • Magnifying piece / slider 3/8 "x 1/2", 44 mm
  • Ring spanners SW 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19 mm
  • Hexagon socket set hexagon 1,5, 2, 2,5, 3, 4, 5, 6, 8, 10 mm
  • Adjustable wrench, adjustable 10 ", 250 mm
  • Screwdriver slot 4, 5,5, 6,5
  • Screwdriver Phillips PH 1, 2, 3
  • Side cutter 180 mm
  • Round nose pliers 200 mm
  • Water pump pliers 10 ", 250 mm
  • Hammer 500 g
