Gedore compression/support sleeves set - with guide bolt - Ø 30 to 68 mm - long version - price per set
| € 1.072,83 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
944000391701
Product Description
- The Gedore compression/support sleeve set is used for the precise pressing in and pressing out of silentblocs, shafts and bushes on chassis components as part of axle repairs.

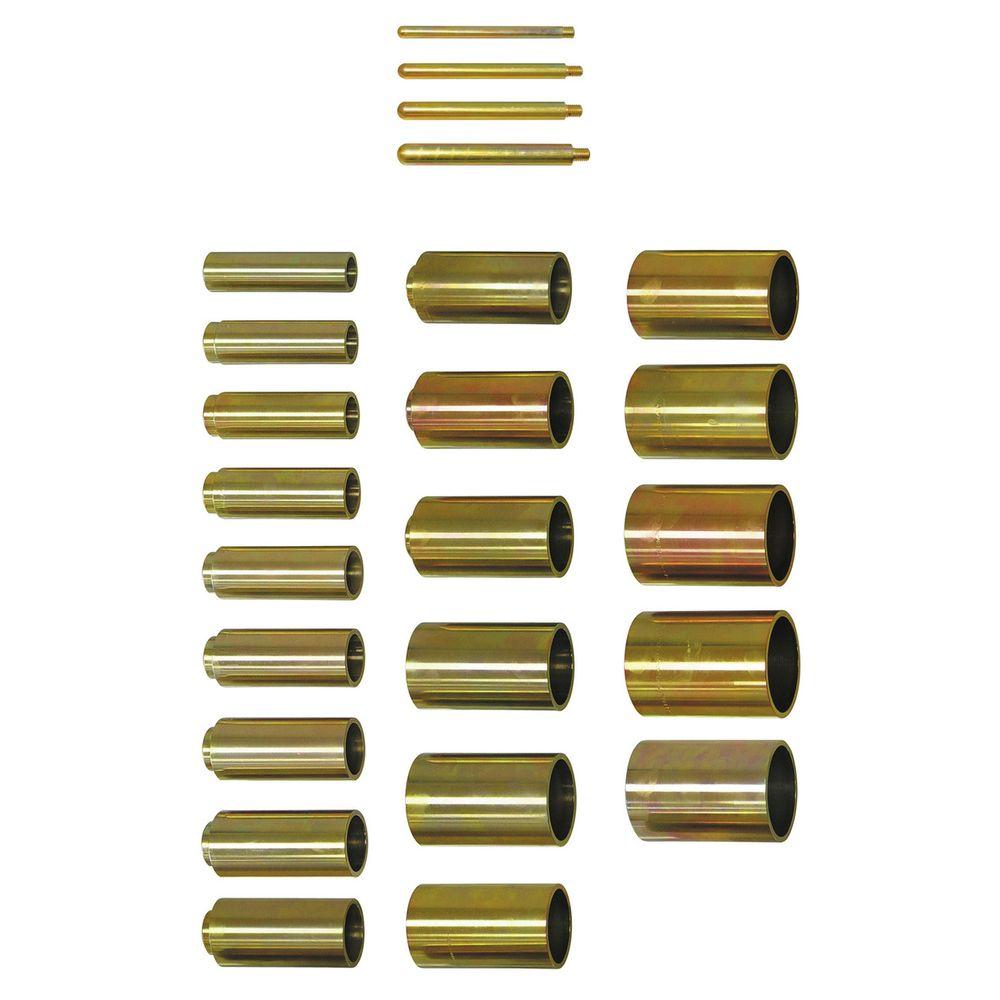

- The compression/support sleeve set from Gedore is a 24-piece compression/support sleeve set for the professional pressing out and pressing in of silentblocs, bushes and shafts on chassis components.
- With long sleeves (90 mm long) and various diameters, the set is ideal for deep-seated bearings and offers precise application options in combination with mechanical or hydraulic drives.
- The set is compatible with tools from the Gedore KL-0039 series and is designed for long-term use in automotive workshops.
- Scope of delivery:
- - 1x guide bolt long Ø 10 mm
- - 1x guide bolt long Ø 12 mm
- - 1x guide bolt long Ø 14 mm
- - 1x guide bolt long Ø 16 mm
- - 1x pressure/support sleeve long Ø 30 / 22 mm
- - 1x pressure/support sleeve long Ø 32 / 24 mm
- - 1x pressure/support sleeve long Ø 34 / 26 mm
- - 1x pressure/support sleeve long Ø 36 / 28 mm
- - 1x pressure/support sleeve long Ø 38 / 30 mm
- - 1x pressure/support sleeve long Ø 40 / 32 mm
- - 1x pressure/support sleeve long Ø 42 / 34 mm
- - 1x pressure/support sleeve long Ø 44 / 36 mm
- - 1x pressure/support sleeve long Ø 46 / 38 mm
- - 1x pressure/support sleeve long Ø 48 / 40 mm
- - 1x pressure/support sleeve long Ø 50 / 42 mm
- - 1x pressure/support sleeve long Ø 52 / 44 mm
- - 1x pressure/support sleeve long Ø 54 / 46 mm
- - 1x pressure/support sleeve long Ø 56 / 48 mm
- - 1x pressure/support sleeve long Ø 58 / 50 mm
- - 1x pressure/support sleeve long Ø 60 / 52 mm
- - 1x pressure/support sleeve long Ø 62 / 54 mm
- - 1x pressure/support sleeve long Ø 64 / 56 mm
- - 1x pressure/support sleeve long Ø 66 / 58 mm
- - 1x pressure/support sleeve long Ø 68 / 60 mm
- Weight - 12.1 kg
- Version - long with guide bolt
- Drive type - hydraulic, mechanical
- Outer Ø, sleeve (max.) - 68 mm
- Outer Ø, sleeve (min.) - 30 mm
- Inner Ø, sleeve (max.) - 60 mm
- Inner Ø, sleeve (min.) - 22 mm
- Length (sleeve) - 115 mm
- Suitability - universal
- required accessories - Hydraulic drive (17 tonnes)
- Price per set
