Gedore internal spring clamp short - size 1+2 - incl. pressure plates, clamping cylinder, foam insert
| € 1.143,18 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
944000252020
Product Description
- The Gedore inner spring compressor enables safe and quick removal of the rear axle springs without lowering the rear axle carrier.
- The Gedore inner spring compressor is a compact 3-point clamp for removing rear axle springs even in confined spaces.
- It has an automatic freewheel function, a profiled clamping cylinder housing and spindle overload protection and achieves a maximum holding force of 30,000 N (breaking point 120,000 N) with a working stroke of 177 mm.
- It can be used universally, especially on rear axles of Chrysler, Mercedes (including C, E, S, SL classes) and, in conjunction with optional pressure plates, also on BMW 1 Series/3 Series models.

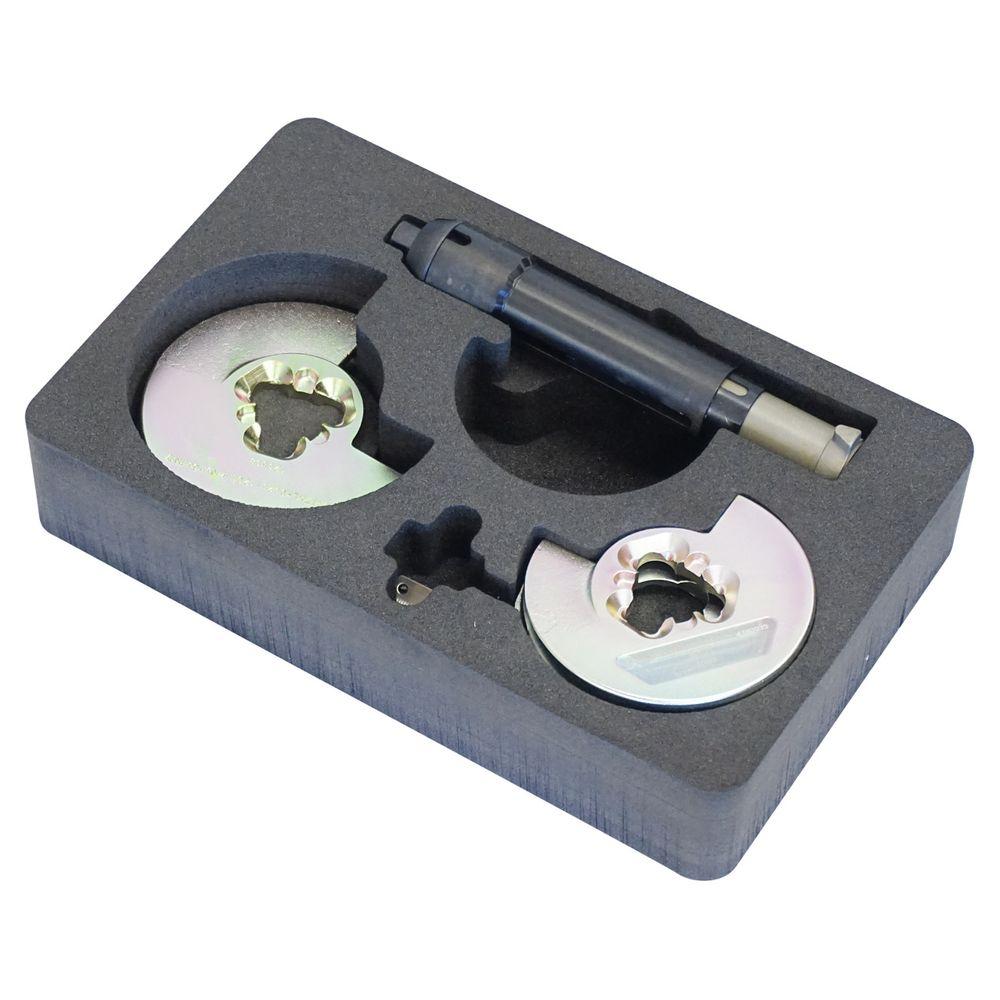

- Scope of delivery:
- - 1x clamping cylinder
- - 1x pair of pressure plates size 1
- - 1x pair of pressure plates size 2
- - 2x foam insert
- Width: 370 mm
- Height: 90 mm
- Depth: 231 mm
- Weight: 4.5 kg
- Drive mount, hexagonal: 19 mm
- Working stroke: 177 mm
- Outer Ø, clamping cylinder: 44 mm
- Load (max.): 30,000 N
- Breaking point: 120,000 N
- Spring Ø, outer (max.): 140 mm
- Spring Ø, inside (min.): 75 mm
- Length, extended: 410 mm
- Span: 110-287 mm
- Universal fit. Particularly suitable for Chrysler, Mercedes C-Class (W202), CLK (W208), E-Class (W210, W211), S-Class (W140), SL (R107, R129, R170), W114, W115, W116, W123, W124, W126 and W201 for rear axle springs. Also suitable for BMW 1 Series (E87) and 3 Series (E90) in conjunction with pressure plates KL-0025-16.
- Price per set
