Gedore press frame - NFZ - max. load 12 tonnes
| € 2.110,48 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
944010391110
Product Description
- The Gedore press frame NFZ is suitable for use in vehicle workshops.

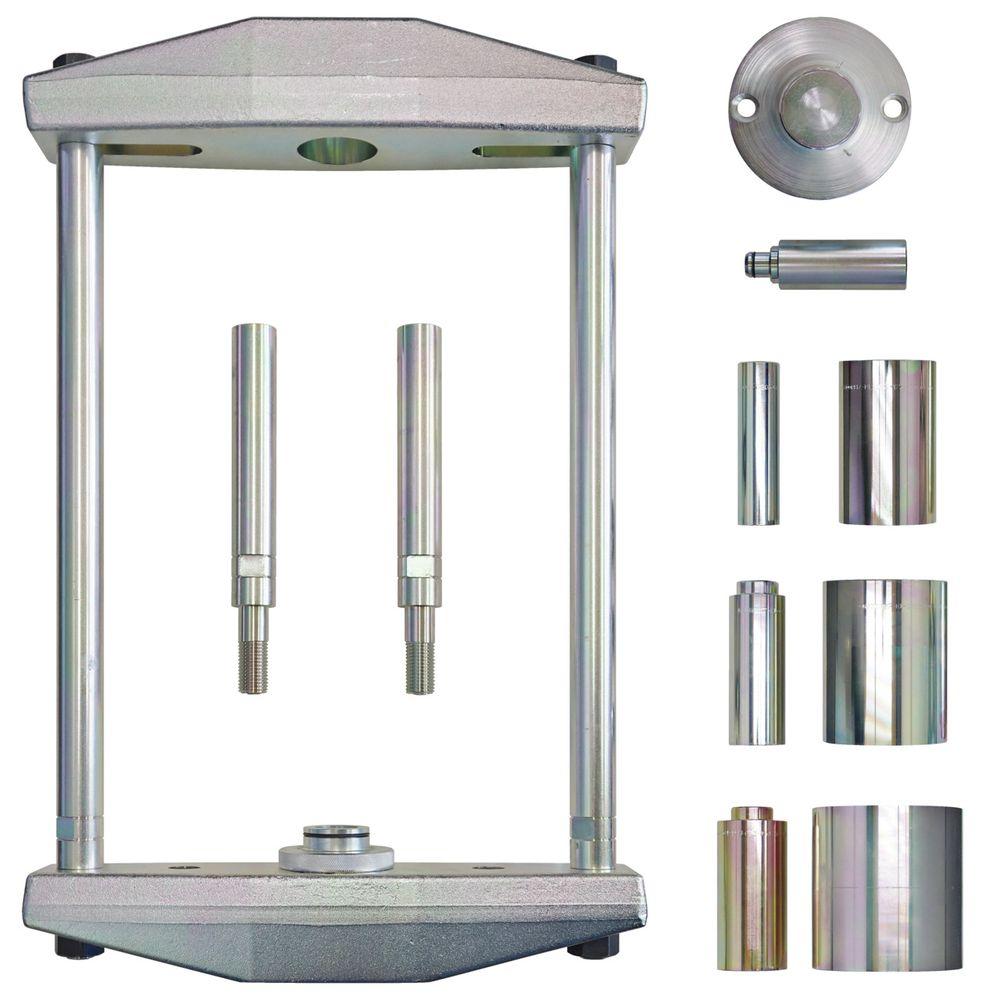

- The Gedore NFZ press frame is a robust and versatile tool for pressing out and pressing in bushes, bearings and bolts directly on the vehicle.
- Its high pressing force of up to 28 tonnes makes it ideal for use on commercial vehicles, construction machinery, agricultural machinery, trailers and semi-trailers
- Scope of delivery:
- - 1x KL-1039-1101 Base plate 2¾"-16 UN
- - 1x KL-1005-1011 Base plate 2¾"-16 UN
- - 2x KL-1039-1102 Tie rod M22
- - 4x KL-1005-1014 SK collar nut M22
- - 1x KL-1039-1105 Adapter 2¾"-16 UNS to Ø 30 mm
- - 2x KL-1039-1103 Tie rod M22 extension
- - 1x KL-1039-1106 Extension pressure nut M24
- - 1x KL-1039-1107 Mounting foot
- - 1x KL-1039-7110 Pressure/support sleeve long Ø 110/102 mm
- - 1x KL-0039-1790 Pressure/support sleeve long Ø 90/82 mm
- - 1x KL-0039-1770 Pressure/support sleeve long Ø 70/62 mm
- - 1x KL-0039-1750 Pressure/support sleeve long Ø 50/42 mm
- - 1x KL-0039-1740 Pressure/support sleeve long Ø 40/32 mm
- - 1x KL-0039-1730 Pressure/support sleeve long Ø 30/22 mm
- Please note that you will need additional tools, not included in the scope of delivery, to carry out the repair.
- Weight: 49 kg
- Load: max. 28 tonnes
- Width, inside 1: 180 mm
- Width, inside 2: 250 mm
- Width, inside 3: 320 mm
- Length, inside 1: 500 mm
- Length, inside 2: 700 mm
- Drive type: hydraulic/mechanical
- Price per set
