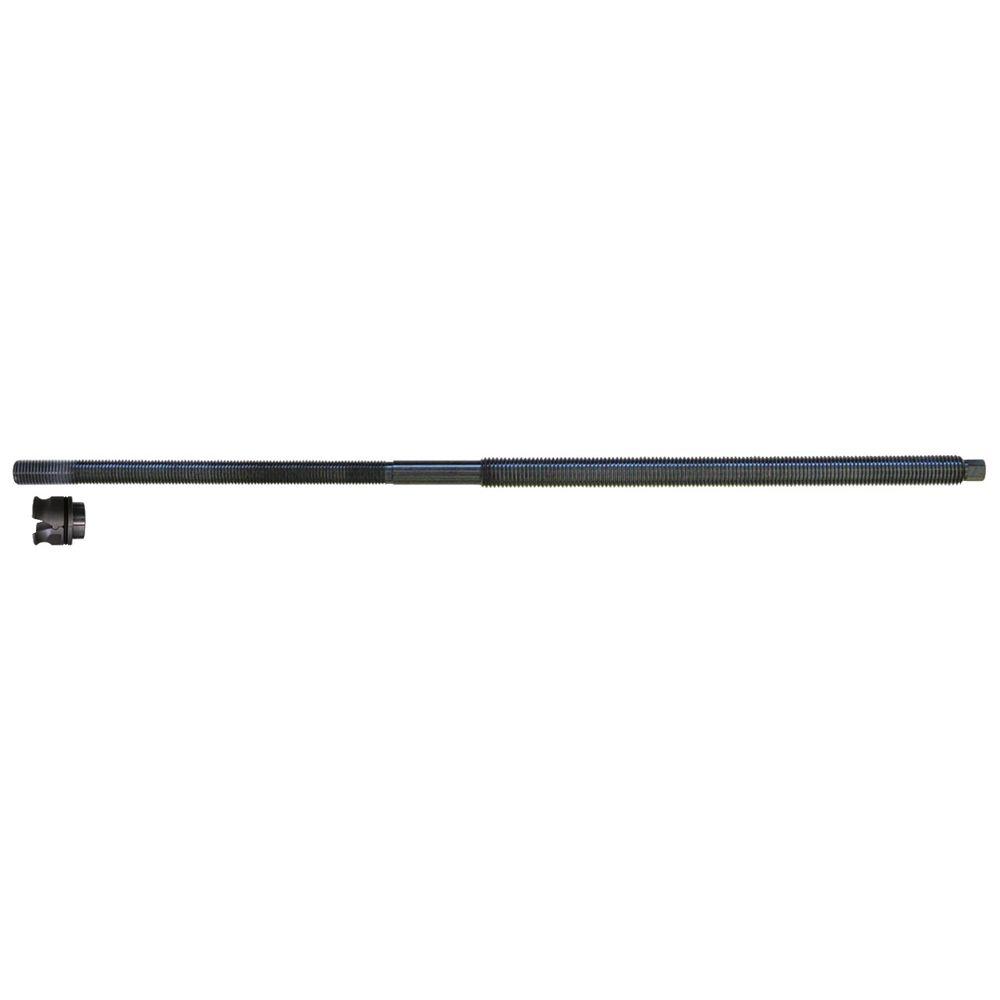

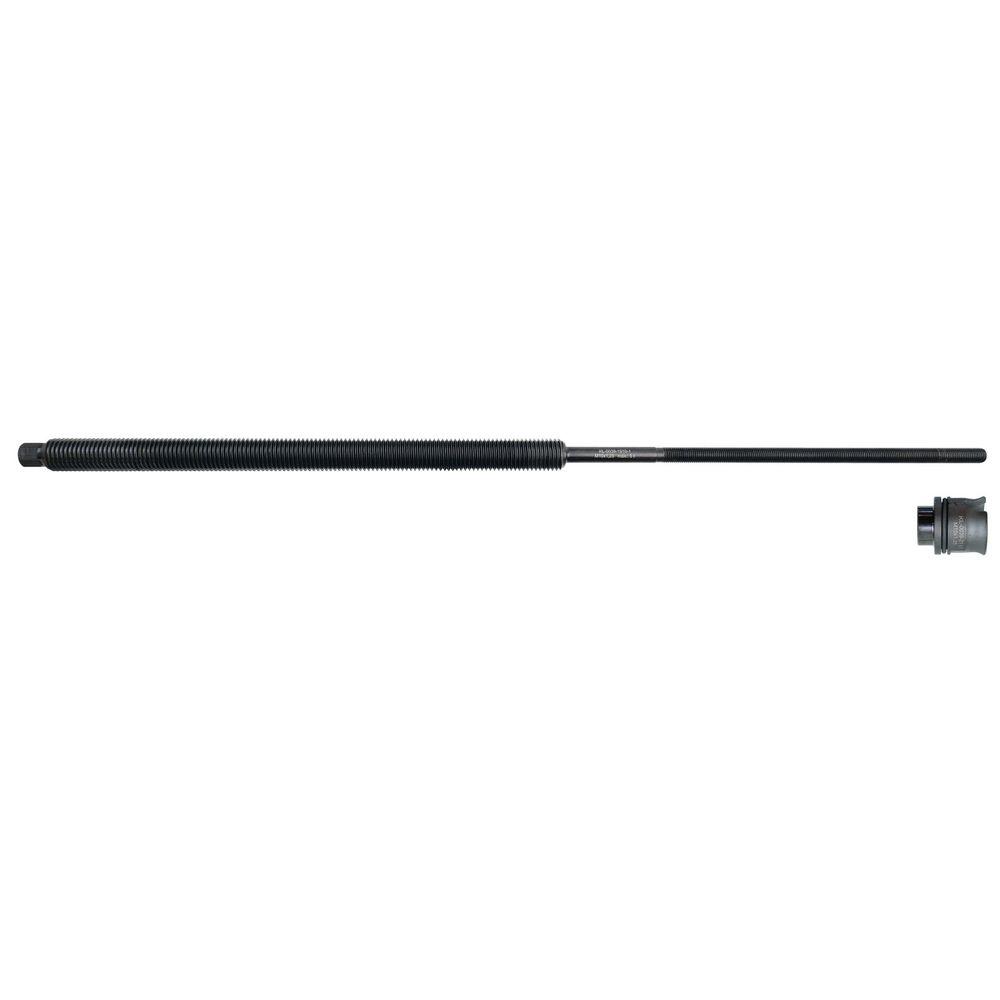

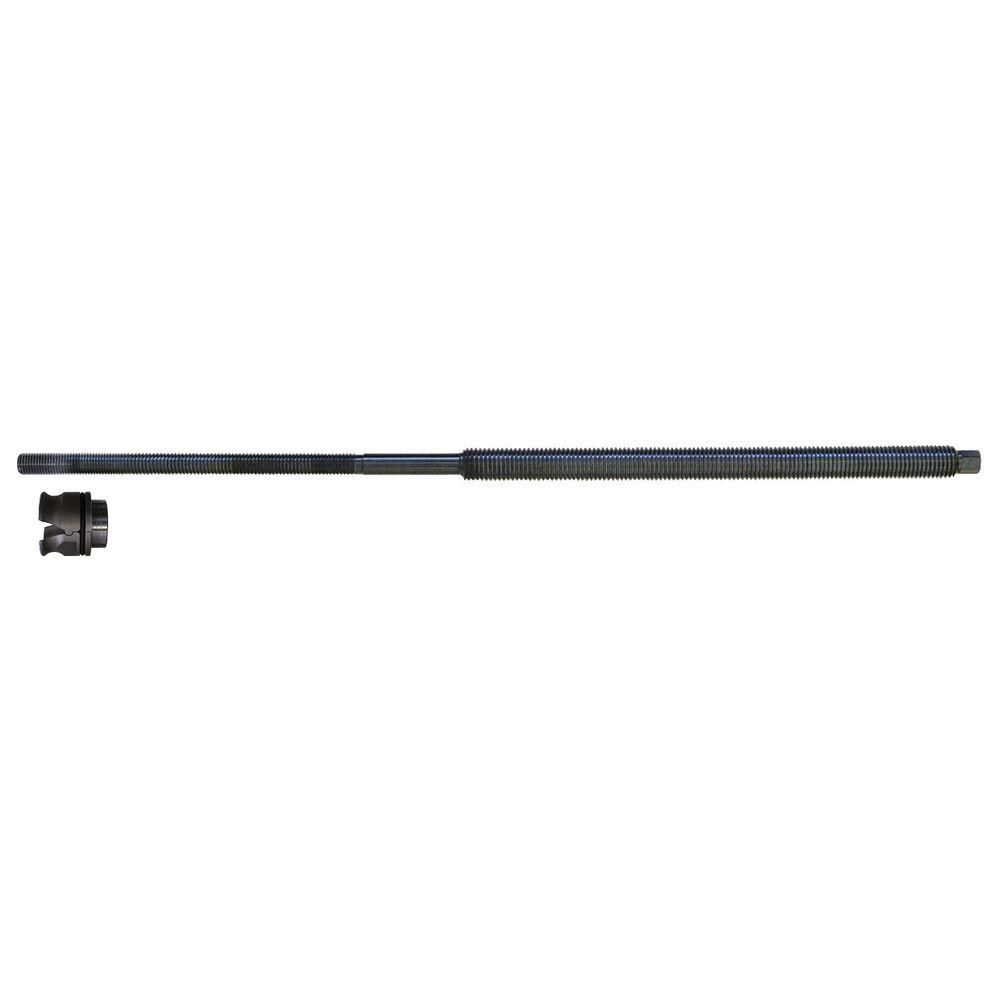

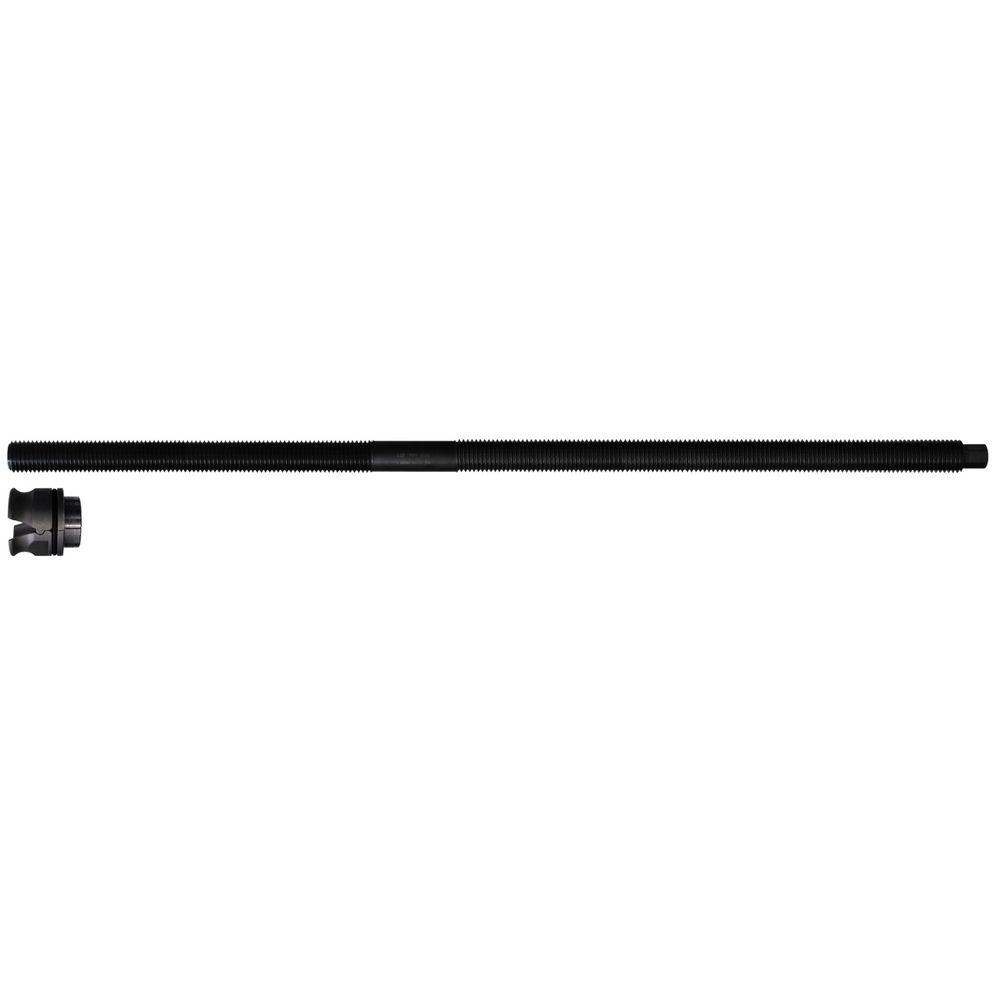

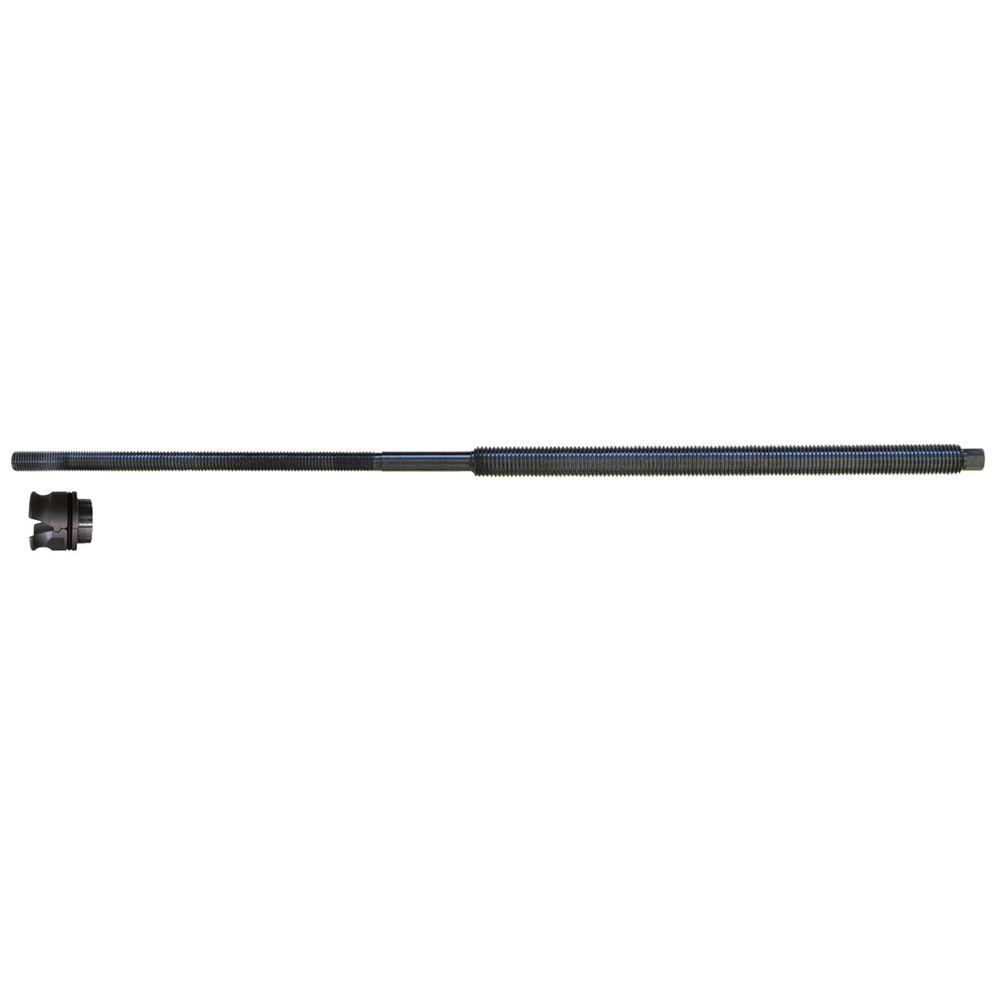

Gedore pull spindle with quick-release nuts - M10 to M20 - Hydraulic - Length 590 mm - Price per piece

From  131,90
Price incl. VAT
plus 29,00 shipping costs

Do you have any questions?
We would like to assist you!

Product Description
  • The pull spindle with quick-release nut is used in combination with the KL-0040-2500 hydraulic cylinder as a hydraulic drive for the KL-0039 series. It is used to install and remove bearings, bushings and similar components.
Application
  • The special design of the quick-release nut enables adjustment on the pull spindle without turning - simply by moving it.
  • This ensures short assembly and clamping times as well as convenient and fast handling.
  • To prevent unintentional loosening of the quick-release nut under load, it must be secured over the collar with a suitable pressure or support sleeve, an adapter or a retaining ring.
Technical Data
  • Drive type - Hydraulic
  • Drive hexagon (metric) - 13 mm
  • Spindle total length - 590 mm
  • Spindle thread length (usable) - 210 to 220 mm
  • Spindle total length (usable) 2 - 300 mm
  • Scope of delivery:
  • 1x pull spindle, 1x quick-release nut
  • Price per piece
Versions: (5)
Narrow down your selection
Thread
Thread 2
Drive hexagon [metric]
Load (max.)
Spindle total length
Spindle total length (usable)
Spindle Thread length (usable) 2
Anzeigen als list Table
Item No.: 943000392110
Type
ThreadM 10 x 1.25
Thread 2M 20
Drive hexagon [metric]13 mm
Load (max.)5 t
Spindle total length590 mm
Spindle total length (usable)210 mm
Spindle Thread length (usable) 2300 mm
131,90
Price incl. VAT
plus 29,00 shipping costs
Delivery time 7-10 working days
Item No.: 943000392112
Type
ThreadM 12
Thread 2M 20
Drive hexagon [metric]13 mm
Load (max.)7 t
Spindle total length590 mm
Spindle total length (usable)210 mm
Spindle Thread length (usable) 2300 mm
107,29
Price incl. VAT
plus 29,00 shipping costs
Delivery time 7-10 working days
Item No.: 943000392114
Type
ThreadM 14
Thread 2M 20
Drive hexagon [metric]13 mm
Load (max.)9 t
Spindle total length590 mm
Spindle total length (usable)210 mm
Spindle Thread length (usable) 2300 mm
105,52
Price incl. VAT
plus 29,00 shipping costs
Delivery time 7-10 working days
Item No.: 943000392116
Type
ThreadM 16
Thread 2M 20
Drive hexagon [metric]13 mm
Load (max.)13 t
Spindle total length590 mm
Spindle total length (usable)210 mm
Spindle Thread length (usable) 2300 mm
131,90
Price incl. VAT
plus 29,00 shipping costs
Delivery time 7-10 working days
Item No.: 943000392120
Type
ThreadM 20
Thread 2M 20
Drive hexagon [metric]13 mm
Load (max.)20 t
Spindle total length590 mm
Spindle total length (usable)220 mm
Spindle Thread length (usable) 2300 mm
137,17
Price incl. VAT
plus 29,00 shipping costs
Delivery time 7-10 working days
