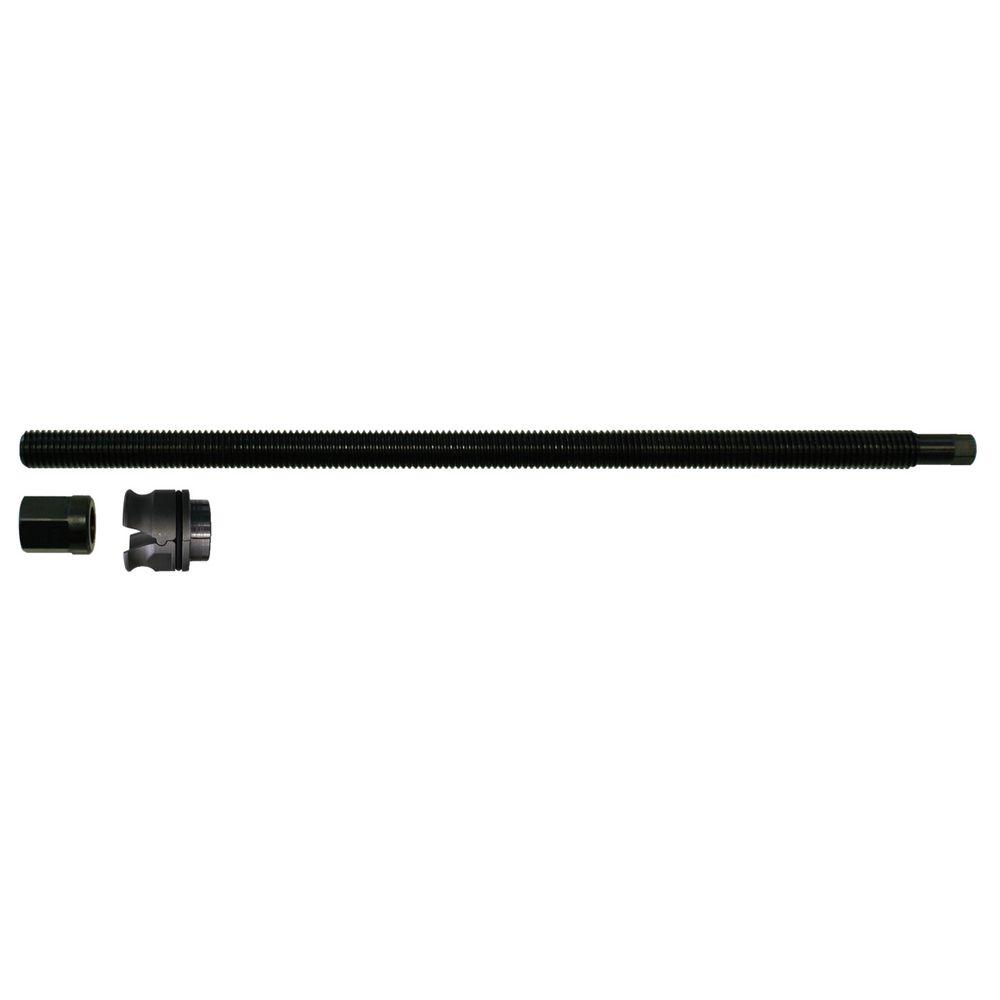

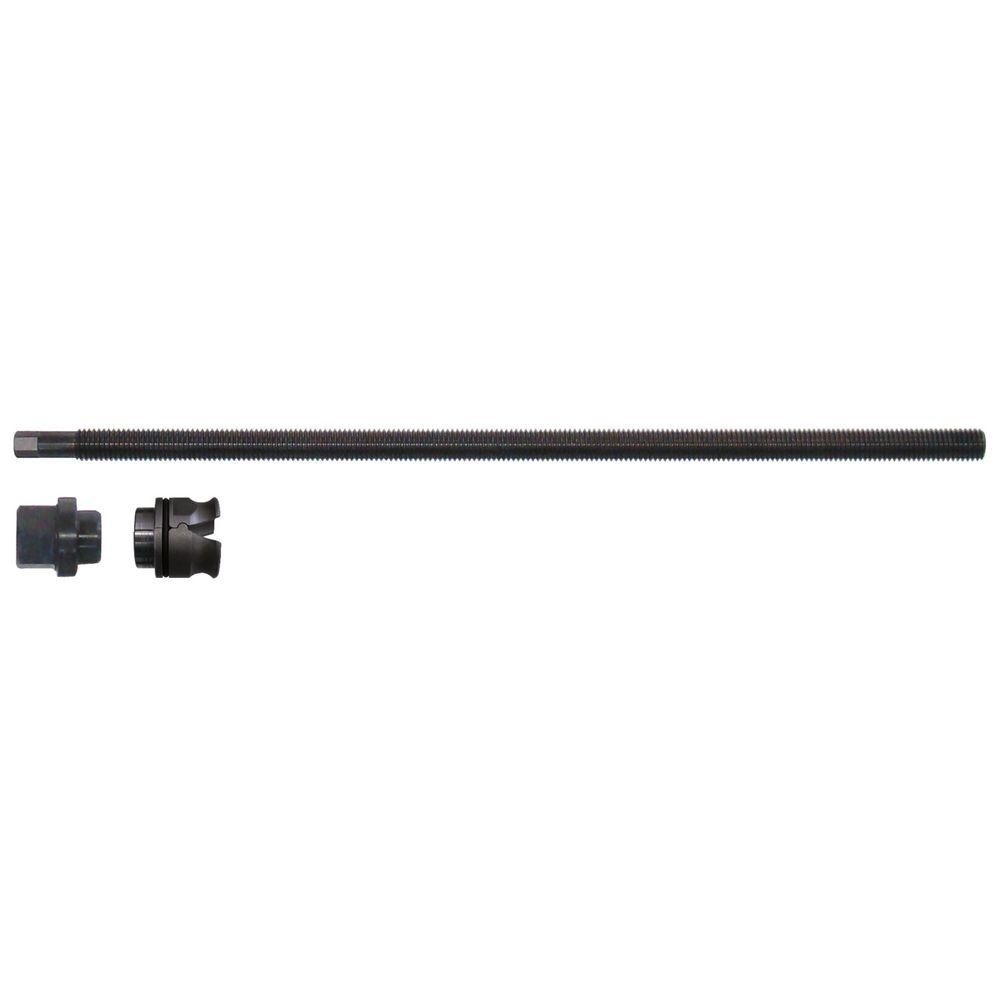

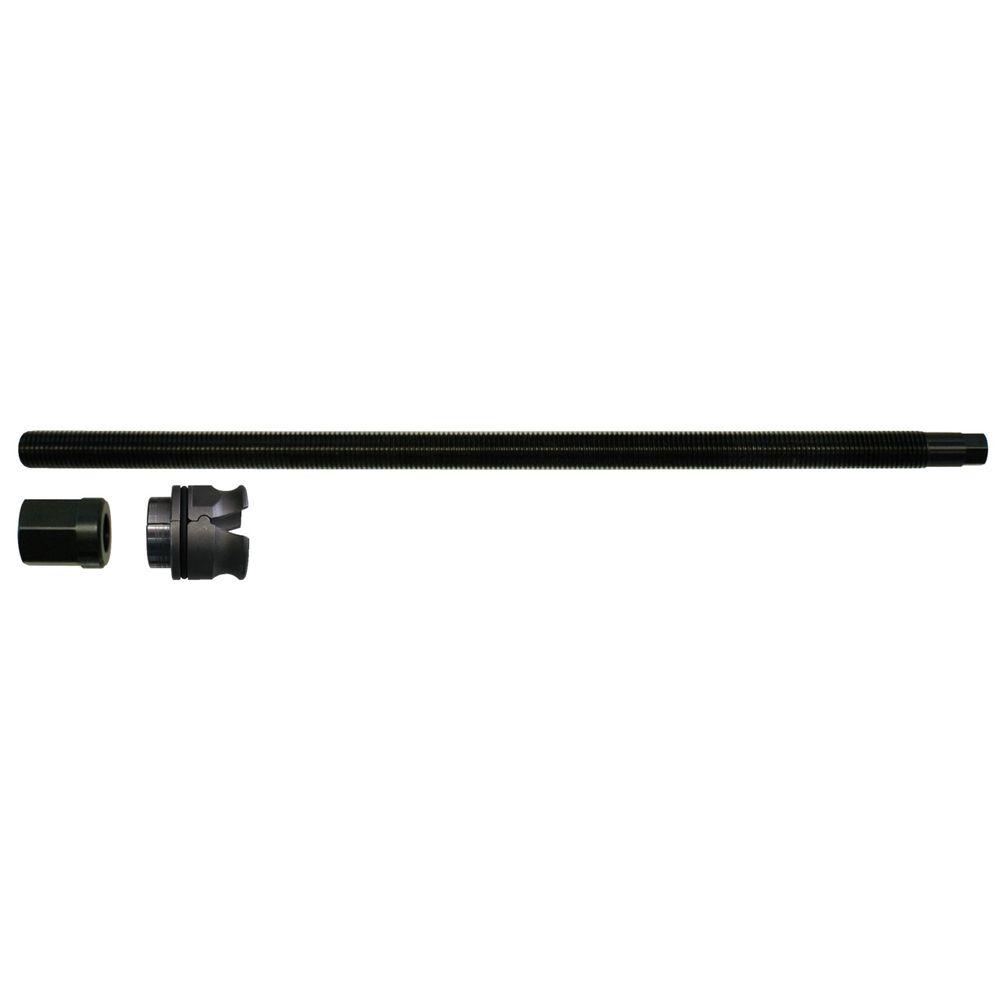

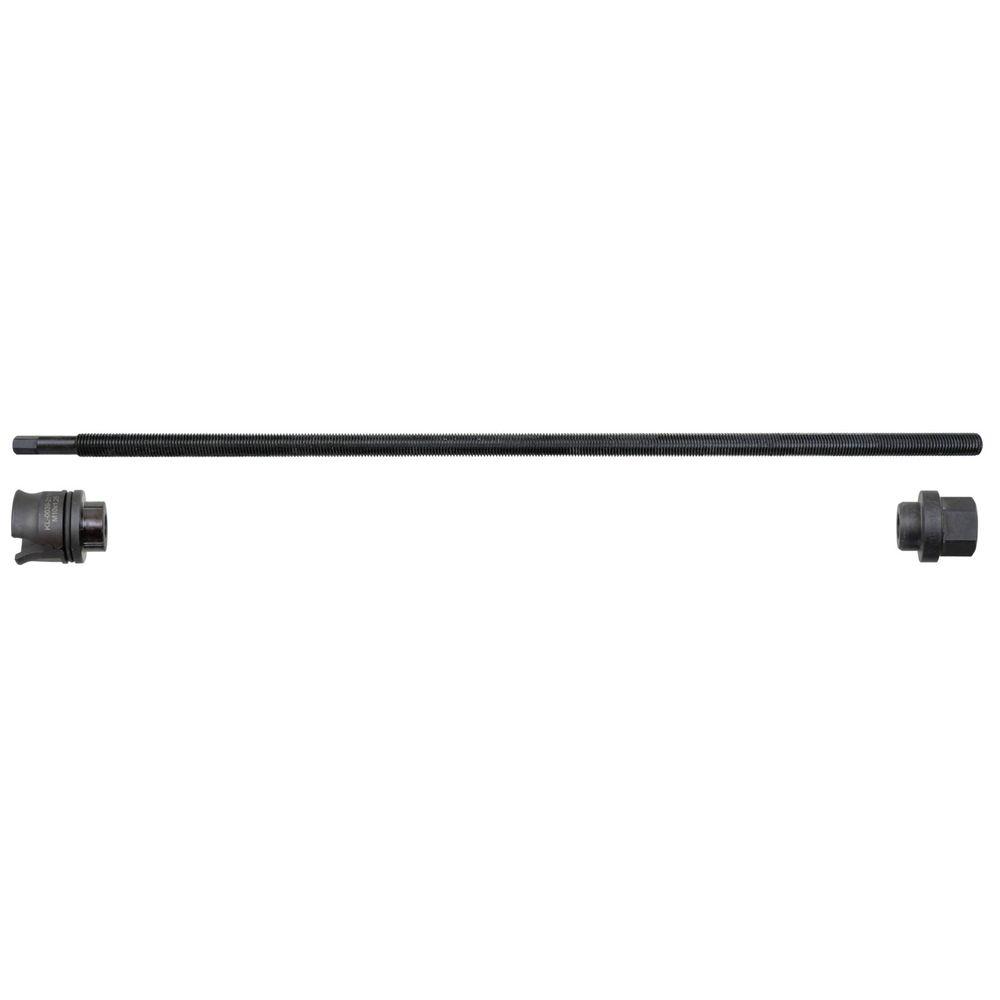

Gedore pull spindle with quick-release nuts - M10 to M20 - Mechanical - Length 395 mm - Price per piece

From  116,08
Price incl. VAT
plus 29,00 shipping costs

Do you have any questions?
We would like to assist you!

Product Description
  • The pull spindle with collar and quick-release nut serves as a mechanical drive for the KL-0039 series and is used to remove and install bearings, bushes, joints and similar components."
Application
  • Thanks to the special design of the quick-action clamping nut, it can be adjusted on the pull spindle simply by moving it without turning. This enables short set-up and clamping times as well as quick and easy handling.
  • To prevent the quick-release nut from opening unintentionally under load, it must be secured via the collar in combination with a suitable compression or support sleeve, an adapter or a retaining ring
Technical Data
  • Drive type - Mechanical
  • Drive hexagon (metric) - 7.0 to 13 mm
  • Drive of the clamping nut - 22 to 30 mm
  • Spindle total length - 395 mm
  • Spindle thread length (usable) - 370 mm
  • Scope of delivery:
  • 1x pull spindle, collar nut, 1x quick-release nut
Versions: (5)
Narrow down your selection
Thread
Drive hexagon [metric]
Drive of the clamping nut
Load (max.)
Anzeigen als list Table
Item No.: 943000392210
Type
ThreadM 10 x 1.25
Drive hexagon [metric]7 mm
Drive of the clamping nut22 mm
Load (max.)5 t
116,08
Price incl. VAT
plus 29,00 shipping costs
Delivery time 7-10 working days
Item No.: 943000392212
Type
ThreadM 12
Drive hexagon [metric]8 mm
Drive of the clamping nut22 mm
Load (max.)7 t
116,08
Price incl. VAT
plus 29,00 shipping costs
Delivery time 7-10 working days
Item No.: 943000392214
Type
ThreadM 14
Drive hexagon [metric]10 mm
Drive of the clamping nut22 mm
Load (max.)9 t
105,52
Price incl. VAT
plus 29,00 shipping costs
Delivery time 7-10 working days
Item No.: 943000392216
Type
ThreadM 16
Drive hexagon [metric]10 mm
Drive of the clamping nut27 mm
Load (max.)13 t
197,56
Price incl. VAT
plus 29,00 shipping costs
Delivery time 7-10 working days
Item No.: 943000392220
Type
ThreadM 20
Drive hexagon [metric]13 mm
Drive of the clamping nut30 mm
Load (max.)20 t
131,90
Price incl. VAT
plus 29,00 shipping costs
Delivery time 7-10 working days
Ratings


No evaluation has been given
