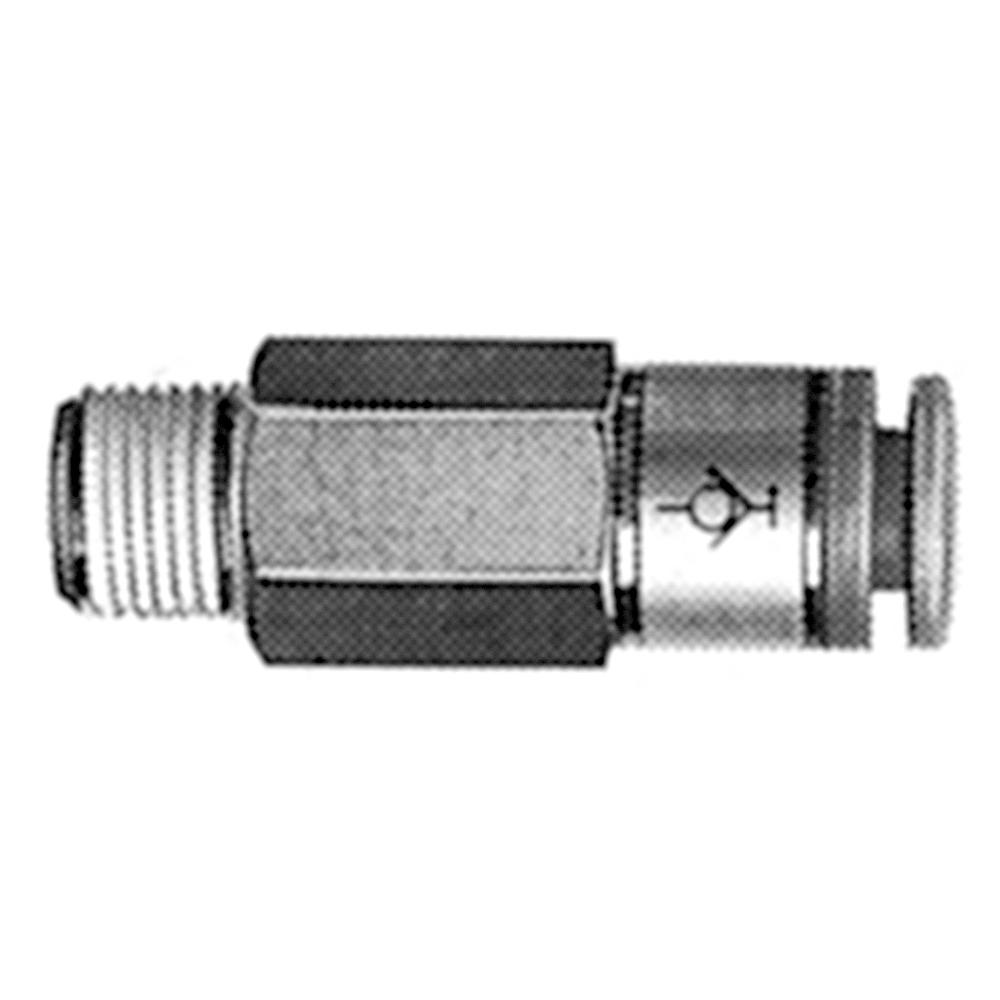

KCH plug-in connection - brass/PBT - straight - with non-return valve - hose outer diameter 4 to 12 mm - M or R thread - pack of 10 - price per piece
| € 11,35 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 113,52)
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
973000050686
Product Description
- The KCH plug-in connection is ideal for pneumatic systems with frequent connection and disconnection of hoses.
- Particularly in industrial automation, mechanical engineering and service applications, it offers a secure, leak-free connection without the need for time-consuming venting.
- It is suitable for compressed air systems where a reliable and compact connection with an integrated shut-off mechanism is required.
- The straight design makes it ideal for connections in the through direction, for example in supply lines, distributors or switch cabinets.
- The KCH plug-in connection is a straight plug-in connection with an integrated shut-off valve.
- It reliably prevents compressed air loss when the hose is disconnected and is therefore ideal for applications involving frequent hose changes.
- The KCH has a straightforward connection design that ensures easy integration into existing systems.
- All threaded parts are Teflon-coated and made of chemically nickel-plated brass, which guarantees a long service life and suitability for copper-free applications.
- The connection body can be rotated to facilitate installation in confined spaces.
- Body material - nickel-plated brass / PBT
- Material of connection body - nickel-plated brass (threaded part)
- Material Collet, spring - Stainless steel
- Material Seal, O-ring - NBR
- Sealing compound (threaded part) - Teflon-coated
- Ambient temperature - -5 to 60 °C
- Media temperature - -5 to 60 °C
- Operating pressure min. - 0 MPa
- Max. operating pressure - 1 MPa
- Test pressure - 3 MPa
- Connection - Plug connection 4 to 12 mm
- Thread - M 5 or R(PT) 1/8" to 1/2"
- Media - compressed air
- Suitable hoses - nylon, soft nylon, PUR
- Length - 25.2 to 53.1 mm
- Weight - 8 to 48 g
- Minimum order quantity - 10 pieces
- Price per piece
Versions: (12)
Item No.: 973000050599
Type
| Hose outer diameter | 4 mm |
| Thread | M5 |
| € 6,78 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 67,78)
Item No.: 973000050607
Type
| Hose outer diameter | 4 mm |
| Thread | R(PT) 1/8" |
| € 6,37 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 63,70)
Item No.: 973000050618
Type
| Hose outer diameter | 6 mm |
| Thread | M5 |
| € 7,02 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 70,19)
Item No.: 973000050626
Type
| Hose outer diameter | 6 mm |
| Thread | R(PT) 1/8" |
| € 7,43 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 74,26)
Item No.: 973000050634
Type
| Hose outer diameter | 6 mm |
| Thread | R(PT) 1/4" |
| € 7,83 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 78,33)
Item No.: 973000050650
Type
| Hose outer diameter | 8 mm |
| Thread | R(PT) 1/8" |
| € 8,07 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 80,74)
Item No.: 973000050654
Type
| Hose outer diameter | 8 mm |
| Thread | R(PT) 1/4" |
| € 8,07 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 80,74)
Item No.: 973000050658
Type
| Hose outer diameter | 8 mm |
| Thread | R(PT) 3/8" |
| € 8,07 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 80,74)
Item No.: 973000050670
Type
| Hose outer diameter | 10 mm |
| Thread | R(PT) 1/4" |
| € 10,54 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 105,37)
Item No.: 973000050674
Type
| Hose outer diameter | 10 mm |
| Thread | R(PT) 3/8" |
| € 10,54 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 105,37)
Item No.: 973000050686
Type
| Hose outer diameter | 12 mm |
| Thread | R(PT) 3/8" |
| € 11,35 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 113,52)
Item No.: 973000050690
Type
| Hose outer diameter | 12 mm |
| Thread | R(PT) 1/2" |
| € 11,35 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 113,52)
