Peristaltic pump Verderflex iDura15 - 6 bar - 0.75 kW - 35-410 l/h - NR-/EPDM-/NBR-/NBRF- or CSM-hose - 230 or 400 V
| From € 5.394,44 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The Verderflex iDura15 is ideal for industrial applications in which aggressive, abrasive or sensitive liquids need to be conveyed or metered precisely - for example in the chemical, water and waste water industry, paper and pulp industry or food processing.
- As only the pump hose comes into contact with the medium, the pump is particularly reliable and hygienic to use.
- Various hose materials are available depending on the requirements: Natural rubber for abrasive slurries, NBR for oily and organic liquids, food-grade NBRF for hygienic processes, EPDM for chemically aggressive media, CSM (Hypalon®) for highly corrosive substances.
- Supplemented by suitable flange inserts made of stainless steel, polypropylene or PVDF, the iDura15 offers a flexible and low-maintenance solution for a wide range of applications with increased delivery volumes.

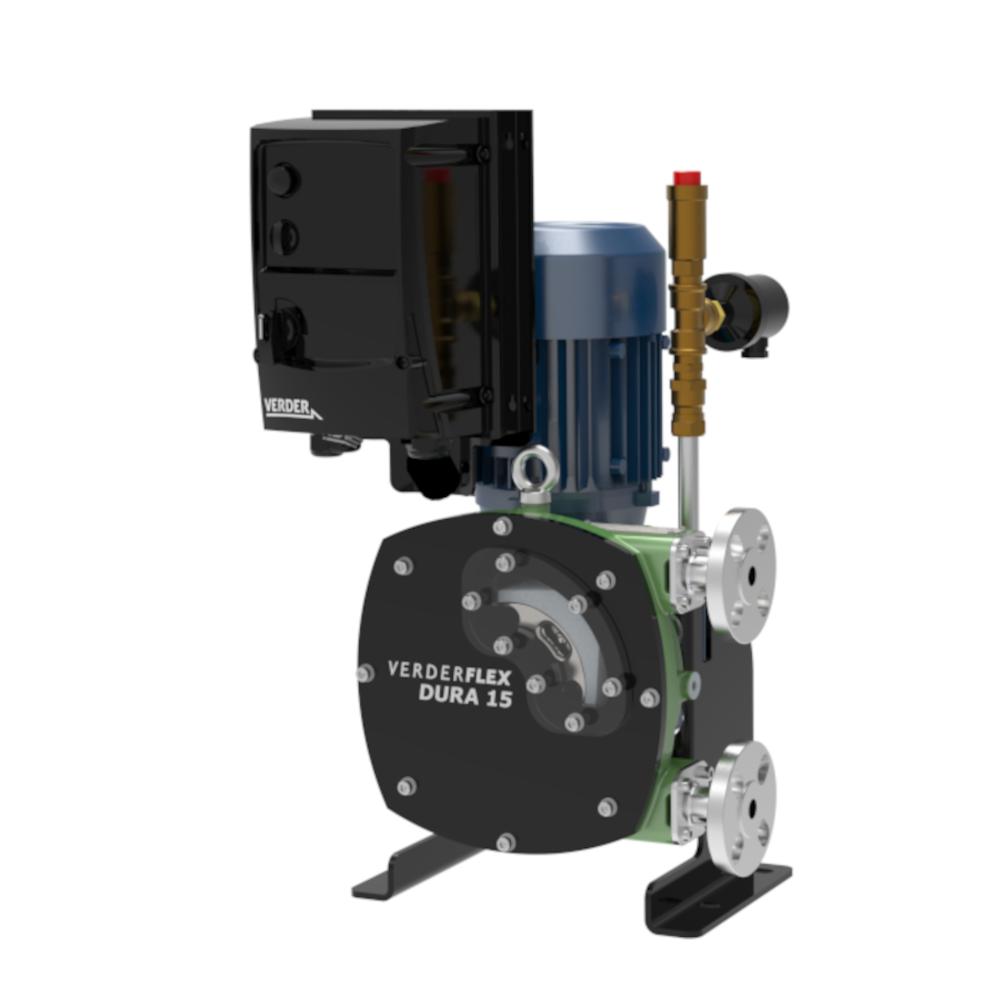

- The Verderflex iDura15 is a compact and powerful industrial peristaltic pump based on the proven Dura15 technology and equipped with a frequency converter and hose rupture monitoring as standard.
- The integrated frequency converter enables infinitely variable speed control, allowing the iDura15's conveying capacity to be flexibly and precisely adapted to the respective process.
- It impresses with its particularly space-saving design combined with a high conveying capacity and long service life.
- The specially developed pump hose is the only component in contact with the medium and can be changed without tools or clamps.
- The integrated motor connection ensures smooth running, low heat generation and a long service life for the hose and gearbox.
- Flange inserts made of stainless steel, PP or PVDF are available for maximum adaptability - depending on the chemical load.
- With a flow rate of up to 410 l/h and an operating pressure of up to 6 bar, the iDura15 is ideal for industrial processes that require reliability, dosing accuracy and compactness.
- It is available in both 1- and 3-phase versions.
- Hose materials - NR, NBR, NBRF, EPDM, CSM
- Available flange inserts - stainless steel, polypropylene (PP), PVDF
- Maximum flow rate - 35 to 410 l/h
- Maximum delivery pressure - 6 bar
- Maximum temperature - 80 °C
- Maximum solids size - 3.75 mm
- Maximum speed - 90 rpm
- Maximum suction height - 9.5 m wc
- Motor power - 0.75 kW
- Inverter power - 0.75 kW
- Voltage - 1 phase (230 V), 3 phases (400 V)
- Certificates - FDA, EN1935
- Inner diameter of hose - 15 mm
- Weight - 40.5 kg
Versions: (30)
Narrow down your selection
Hose
Flange insert
Tension
Item No.: 252014610605
Type
| Hose | NR |
| Flange insert | Stainless steel |
| Tension | 400 V |
Item No.: 252014610608
Type
| Hose | EPDM |
| Flange insert | Stainless steel |
| Tension | 400 V |
Item No.: 252014610606
Type
| Hose | NBR (Buna) |
| Flange insert | Stainless steel |
| Tension | 400 V |
Item No.: 252014610609
Type
| Hose | CSM (Hypalon) |
| Flange insert | Stainless steel |
| Tension | 400 V |
Item No.: 252014610607
Type
| Hose | NBR (Buna Food Grade) |
| Flange insert | Stainless steel |
| Tension | 400 V |
Item No.: 252014610610
Type
| Hose | NR |
| Flange insert | PP |
| Tension | 400 V |
Item No.: 252014610613
Type
| Hose | EPDM |
| Flange insert | PP |
| Tension | 400 V |
Item No.: 252014610611
Type
| Hose | NBR (Buna) |
| Flange insert | PP |
| Tension | 400 V |
Item No.: 252014610614
Type
| Hose | CSM (Hypalon) |
| Flange insert | PP |
| Tension | 400 V |
Item No.: 252014610612
Type
| Hose | NBR (Buna Food Grade) |
| Flange insert | PP |
| Tension | 400 V |
Item No.: 252014610615
Type
| Hose | NR |
| Flange insert | PVDF |
| Tension | 400 V |
Item No.: 252014610618
Type
| Hose | EPDM |
| Flange insert | PVDF |
| Tension | 400 V |
Item No.: 252014610616
Type
| Hose | NBR (Buna) |
| Flange insert | PVDF |
| Tension | 400 V |
Item No.: 252014610619
Type
| Hose | CSM (Hypalon) |
| Flange insert | PVDF |
| Tension | 400 V |
Item No.: 252014610617
Type
| Hose | NBR (Buna Food Grade) |
| Flange insert | PVDF |
| Tension | 400 V |
Item No.: 252014610622
Type
| Hose | NR |
| Flange insert | Stainless steel |
| Tension | 230 V |
Item No.: 252014610625
Type
| Hose | EPDM |
| Flange insert | Stainless steel |
| Tension | 230 V |
Item No.: 252014610623
Type
| Hose | NBR (Buna) |
| Flange insert | Stainless steel |
| Tension | 230 V |
Item No.: 252014610626
Type
| Hose | CSM (Hypalon) |
| Flange insert | Stainless steel |
| Tension | 230 V |
Item No.: 252014610624
Type
| Hose | NBR (Buna Food Grade) |
| Flange insert | Stainless steel |
| Tension | 230 V |
Item No.: 252014610627
Type
| Hose | NR |
| Flange insert | PP |
| Tension | 230 V |
Item No.: 252014610630
Type
| Hose | EPDM |
| Flange insert | PP |
| Tension | 230 V |
Item No.: 252014610628
Type
| Hose | NBR (Buna) |
| Flange insert | PP |
| Tension | 230 V |
Item No.: 252014610631
Type
| Hose | CSM (Hypalon) |
| Flange insert | PP |
| Tension | 230 V |
Item No.: 252014610629
Type
| Hose | NBR (Buna Food Grade) |
| Flange insert | PP |
| Tension | 230 V |
Item No.: 252014610632
Type
| Hose | NR |
| Flange insert | PVDF |
| Tension | 230 V |
Item No.: 252014610635
Type
| Hose | EPDM |
| Flange insert | PVDF |
| Tension | 230 V |
Item No.: 252014610633
Type
| Hose | NBR (Buna) |
| Flange insert | PVDF |
| Tension | 230 V |
Item No.: 252014610636
Type
| Hose | CSM (Hypalon) |
| Flange insert | PVDF |
| Tension | 230 V |
Item No.: 252014610634
Type
| Hose | NBR (Buna Food Grade) |
| Flange insert | PVDF |
| Tension | 230 V |
