Plug-in distributor list KM11 - PBT/POM - Connection A 4 to 8 mm - Connection B 8 to 12 mm - 6 or 10-way - Pack of 5 - Price per piece
| From € 14,76 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The KM11 is used in pneumatic systems where several actuators, valves or consumers need to be supplied with compressed air from a central source.
- It is suitable for applications in automation, mechanical engineering, testing systems or decentralised distribution points.
- It is particularly advantageous for recurring assemblies, test systems or in confined spaces.
- It also ensures neat hose routing in control boxes and distribution boxes.
- The KM11 is suitable for compressed air and water applications (non-frozen).
- The KM11 plug-in distribution strip is a compact, space-saving distribution solution with six or ten outputs.
- All connections are designed as plug-in connections, enabling quick and tool-free installation.
- The strip is made of robust PBT and tension- and pressure-resistant brass and stainless steel components.
- The clear separation of connections A and B and the central arrangement make the KM11 ideal for clear tubing arrangements.
- It ensures leak-free operation and can be flexibly integrated into a wide variety of pneumatic systems.
- Body material – PBT
- Material collet - stainless steel
- Guide material – brass C3604BD, stainless steel
- Material Clamping ring, pressure ring – POM
- Seal material, O-ring – NBR
- Ambient temperature - -5 to 60 °C
- Media temperature - -5 to 40 °C
- Operating pressure min. - -0.1 MPa
- Maximum operating pressure - 1 MPa
- Suitable hoses – nylon, soft nylon, PUR
- Connection A – 4 to 8 mm
- Connection B - 8 to 12 mm
- Number of connections A - 6 or 10 pieces
- Media - Compressed air, water
- Length - 65 to 116 mm
- Depth - 27 to 34.5 mm
- Height - 29.5 to 35.5 mm
- Weight - 19 to 57 mm
- Minimum order quantity - 5 pieces
- Price per item

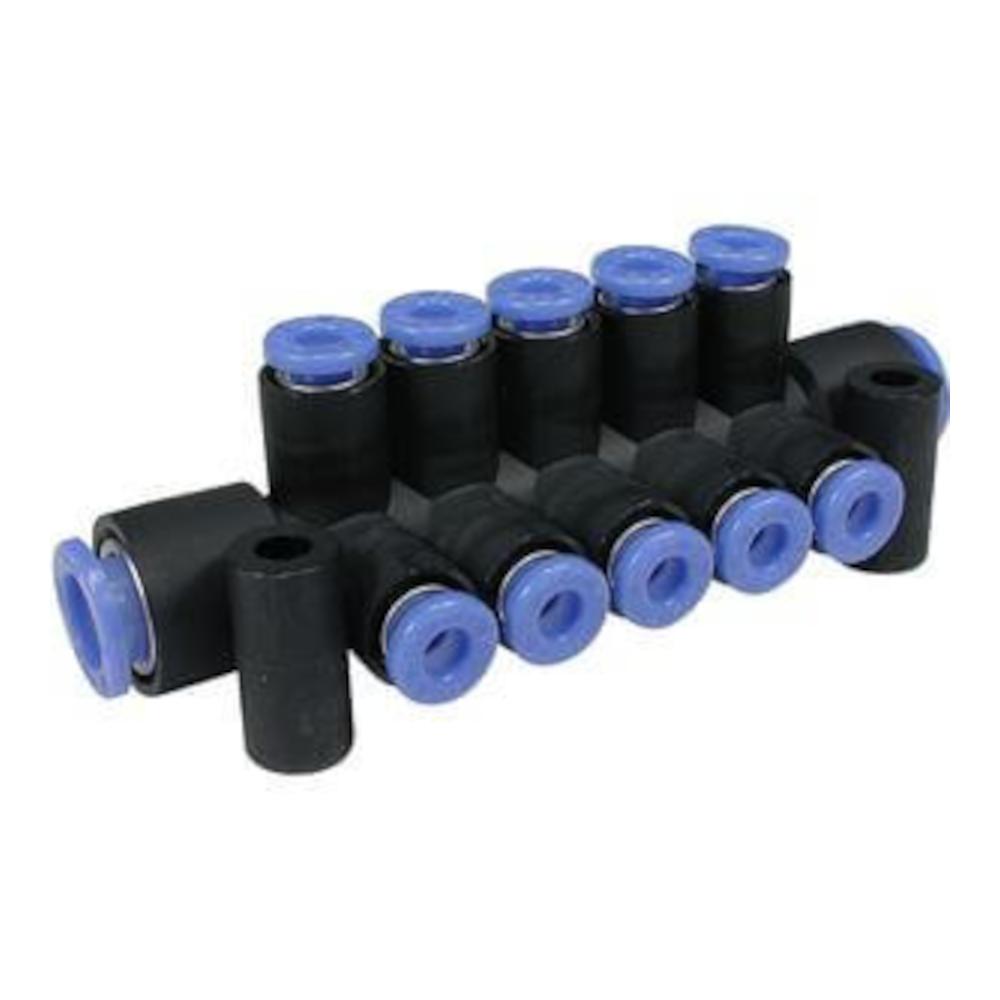

The image shows an example that may differ from the original product.
Versions: (6)
Narrow down your selection
Connection A
Connection B
Number of connections A
Item No.: 973000052226
Type
| Connection A | 4 mm |
| Connection B | 8 mm |
| Number of connections A | 6 pieces |
| € 14,76 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 73,80)
Item No.: 973000052219
Type
| Connection A | 4 mm |
| Connection B | 8 mm |
| Number of connections A | 10 pieces |
| € 19,25 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 96,24)
Item No.: 973000052243
Type
| Connection A | 6 mm |
| Connection B | 10 mm |
| Number of connections A | 6 pieces |
| € 14,76 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 73,80)
Item No.: 973000052235
Type
| Connection A | 6 mm |
| Connection B | 10 mm |
| Number of connections A | 10 pieces |
| € 19,25 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 96,24)
Item No.: 973000052267
Type
| Connection A | 8 mm |
| Connection B | 12 mm |
| Number of connections A | 6 pieces |
| € 17,98 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 89,91)
Item No.: 973000052259
Type
| Connection A | 8 mm |
| Connection B | 12 mm |
| Number of connections A | 10 pieces |
| € 22,75 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 113,76)
