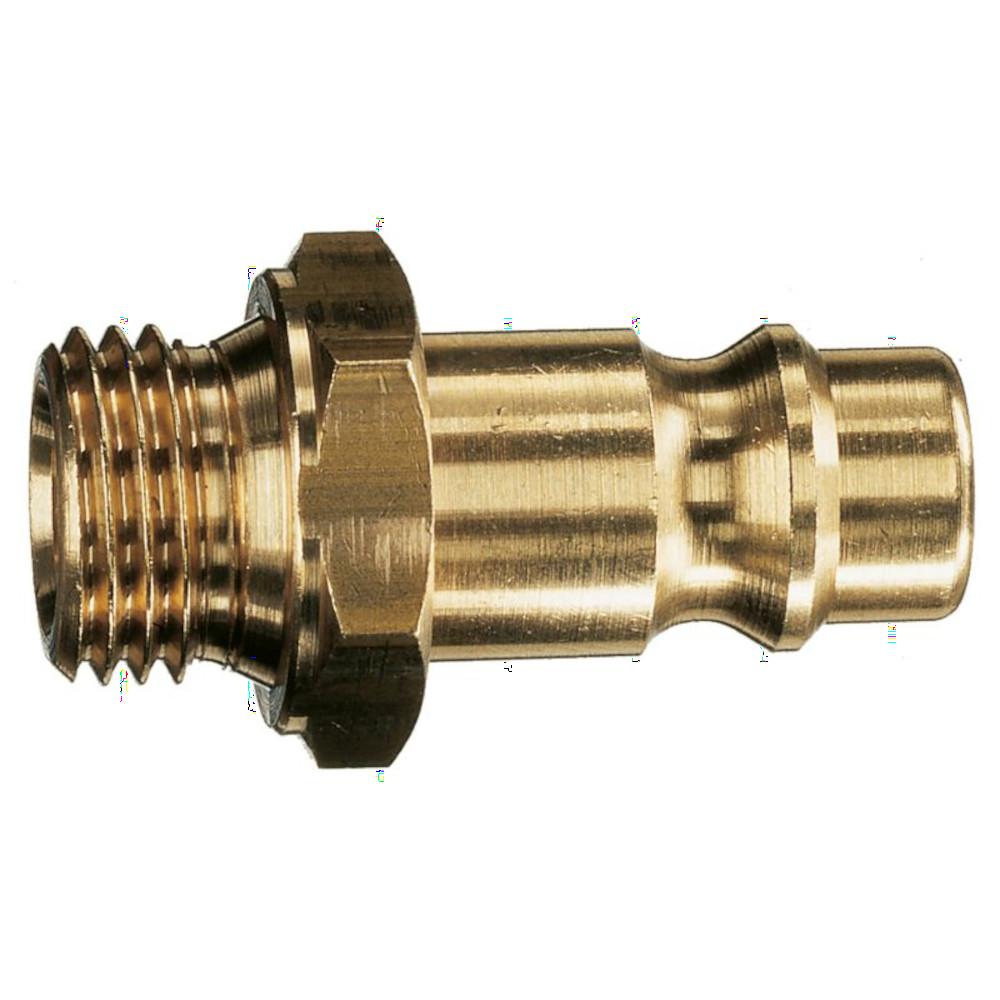

Plug with Euro profile DN 7.2 - QN 1,500 Nl/min - MOP 16 bar - G 1/2 a - Length 35 mm - SW 24 - Price per piece
| € 2,37 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 2 - 4 working days
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
214730805700
Product Description
- The compressed air connector with Euro profile is used for the safe and fast connection of compressed air tools and lines in pneumatic systems at an operating pressure of up to 16 bar.
- The DN 7.2 connector with Euro profile is a robust compressed air connector for connecting couplings and lines in pneumatic systems.
- It is designed for an inlet pressure of 1 bar and a maximum operating pressure of 16 bar, with a flow rate of 1,500 Nl/min.
- Thanks to the G 1/2 a external thread and a length of 35 mm, the plug is ideal for professional use in industry and trade.
- Operating temperature - -20 °C to +100 °C
- Flow medium - compressed air, pre-filtered with 40 µm
- Installation position - preferably coupling in front of plug in the direction of current flow
- Material seals - NBR
- Material springs - spring steel
- Material coupling/plug - brass
- Material pins - stainless steel
- max. operating pressure - 16 bar
- Nominal flow rate according to ISO 6358 - 1,631 l/min
- Connection - G 1/2
- Length - 35 mm
- Width across flats - 24
- Price per piece
