Quick coupling with beech - with cap nut - hose Ø 5x8 to 11x16 mm - size 1/8 to 1/2 - pack of 5 - price per piece
| From € 10,30 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The KKS-N quick coupling is used in pneumatic systems that require a mechanically secured, lockable connection with a hose, e.g. in machine modules, mobile systems or test benches.
- It is ideal for applications with increased mechanical stress due to movement or tension on the hose.
- The quick coupling is also suitable for water applications up to +40 °C (not frozen).
- It is particularly advantageous for frequent connection changes with secure fixation.

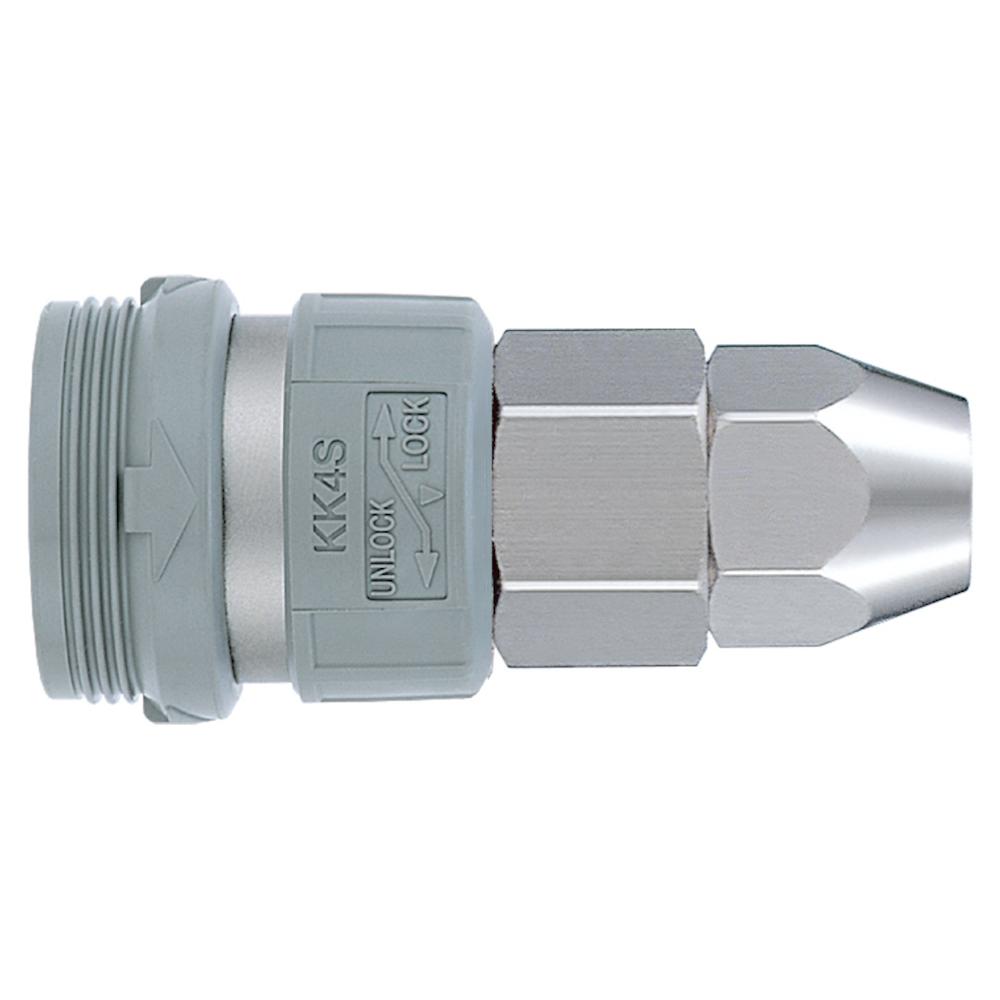

- The KKS-N quick coupling is a straight coupling sleeve with an integrated locking mechanism and mechanical hose retention via a cap nut.
- It ensures a secure, vibration-proof connection with high holding force.
- Installation is carried out by pushing the hose onto the nozzle and securing it with a stainless steel union nut, without the need for any additional tools.
- The chemically nickel-plated brass housing in combination with the NBR seal ensures reliable sealing against compressed air and water.
- The KKS-N is particularly robust and designed for continuous use in dynamic applications.
- Material - Nickel-plated brass
- Ambient temperature - -5 to 60 °C
- Media temperature - -5 to 60 °C
- Operating pressure min. - -0.1 MPa
- Max. operating pressure - 1 MPa
- Suitable hose inner diameter: 5 to 11 mm
- Suitable hose outer diameter: 8 to 16 mm
- Media - Compressed air, water
- Wrench size - 14 to 24 mm
- Diameter - 20.2 to 31.6 mm
- Length - 45.1 to 71.3 mm
- Weight - 32.1 to 119.8 g
- Minimum order quantity - 5 pieces
- Price per piece
Versions: (11)
| Article No. | Size | Hose Ø inside x outside | Price incl. VAT | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
973000003573 | 1/8 | 5 x 8 mm |
|
|||||||||
|
|||||||||||||
|
973000003578 | 1/8 | 6 x 9 mm |
|
|||||||||
|
|||||||||||||
|
973000003582 | 1/8 | 6.5 x 10 mm |
|
|||||||||
|
|||||||||||||
|
973000003785 | 1/4 | 5 x 8 mm |
|
|||||||||
|
|||||||||||||
|
973000003789 | 1/4 | 6 x 9 mm |
|
|||||||||
|
|||||||||||||
|
973000003793 | 1/4 | 6.5 x 10 mm |
|
|||||||||
|
|||||||||||||
|
973000003797 | 1/4 | 8 x 12 mm |
|
|||||||||
|
|||||||||||||
|
973000003806 | 1/4 | 8.5 x 12.5 mm |
|
|||||||||
|
|||||||||||||
|
973000003920 | 1/2 | 8 x 12 mm |
|
|||||||||
|
|||||||||||||
|
973000003924 | 1/2 | 8.5 x 12.5 mm |
|
|||||||||
|
|||||||||||||
|
973000003891 | 1/2 | 11 x 16 mm |
|
|||||||||
|
|||||||||||||
