Quick coupling with plug - Hose outer diameter 3.2 to 16 mm - Size M5 to 1/2 - Pack of 5 - Price per piece
| € 11,65 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 58,24)
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
973000003853
Product Description
- The KKP-H quick coupling is used in pneumatic systems that require frequent hose changes and high flow rates, e.g. in test systems, production lines or mobile machines.
- It is particularly suitable for applications with medium hose diameters where a quick connection without tools is required.
- It can also be used in water applications up to +40 °C (not frozen).
- It is ideal for flexible and temporary installations with polyurethane or nylon hoses.

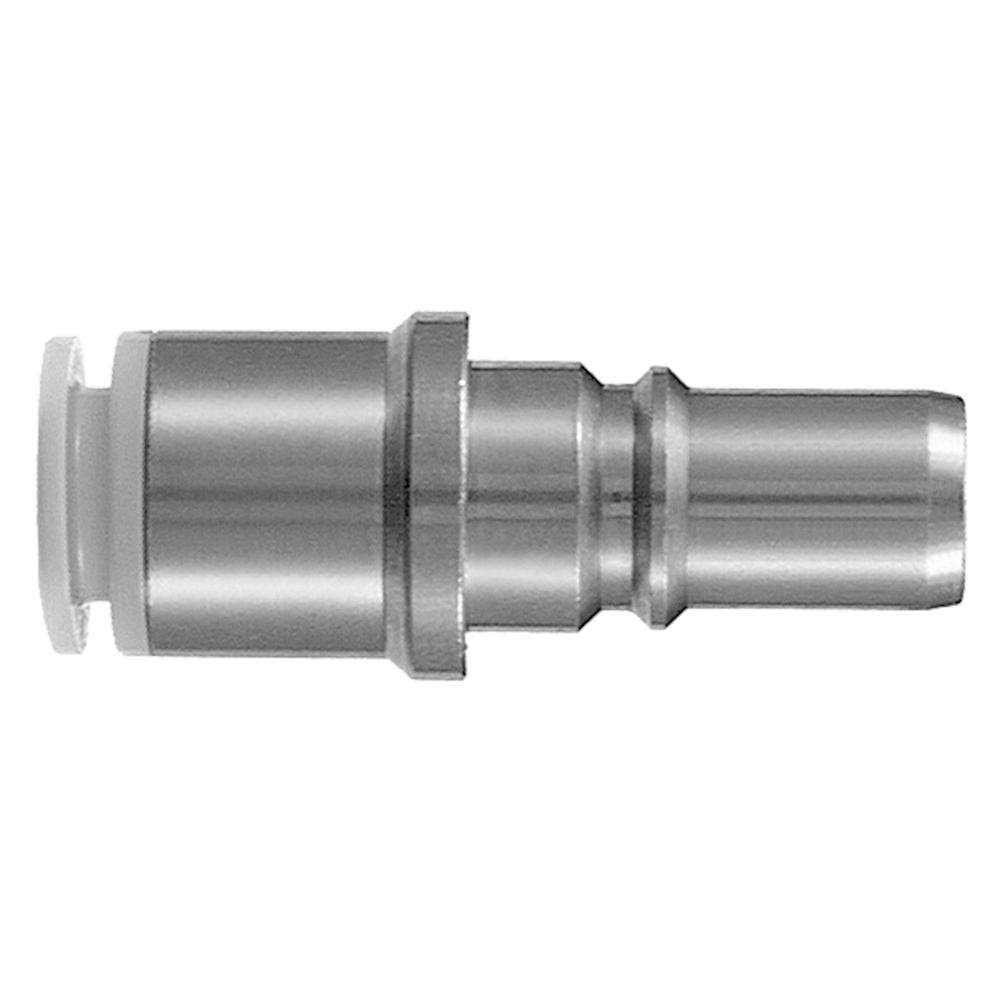

- The KKP-H quick coupling with plug is a straight plug connection with integrated hose connection.
- It is characterised by its ease of use without a locking mechanism; the plug can be connected or disconnected with one hand.
- The coupling is made of chemically nickel-plated brass and is equipped with an NBR seal, which ensures high resistance to compressed air and water.
- Their flow-optimised internal geometry minimises pressure losses and enables a consistent flow rate.
- The robust and low-vibration design is ideal for industrial applications with limited installation space.
- Material - nickel-plated brass
- Ambient temperature - -5 to 60 °C
- Media temperature - -5 to 60 °C
- Operating pressure min. - -0.09 MPa
- Max. operating pressure - 1 MPa
- Size - M5 to 1/2
- Suitable hose outer diameter - 3.2 to 16 mm
- Media - compressed air, water
- Length - 23.7 to 56.1 mm
- Diameter - 10 to 26 mm
- Weight - 3.3 to 50.7 g
- Minimum order quantity - 5 pieces
- Price per piece
Versions: (13)
Item No.: 973000092860
Type
| Size | M5 |
| Hose outer diameter | 3.2 mm |
| € 4,72 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 23,61)
Item No.: 973000084870
Type
| Size | M5 |
| Hose outer diameter | 4 mm |
| € 4,72 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 23,61)
Item No.: 973000084681
Type
| Size | M5 |
| Hose outer diameter | 6 mm |
| € 4,72 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 23,61)
Item No.: 973000003445
Type
| Size | 1/8 |
| Hose outer diameter | 4 mm |
| € 4,72 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 23,61)
Item No.: 973000003458
Type
| Size | 1/8 |
| Hose outer diameter | 6 mm |
| € 4,72 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 23,61)
Item No.: 973000003471
Type
| Size | 1/8 |
| Hose outer diameter | 8 mm |
| € 4,72 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 23,61)
Item No.: 973000003484
Type
| Size | 1/8 |
| Hose outer diameter | 10 mm |
| € 5,31 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 26,57)
Item No.: 973000003620
Type
| Size | 1/4 |
| Hose outer diameter | 6 mm |
| € 5,02 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 25,09)
Item No.: 973000003633
Type
| Size | 1/4 |
| Hose outer diameter | 8 mm |
| € 5,31 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 26,57)
Item No.: 973000003646
Type
| Size | 1/4 |
| Hose outer diameter | 10 mm |
| € 6,02 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 30,09)
Item No.: 973000003659
Type
| Size | 1/4 |
| Hose outer diameter | 12 mm |
| € 6,74 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 33,70)
Item No.: 973000003839
Type
| Size | 1/2 |
| Hose outer diameter | 12 mm |
| € 8,31 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 41,57)
Item No.: 973000003853
Type
| Size | 1/2 |
| Hose outer diameter | 16 mm |
| € 11,65 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 58,24)
