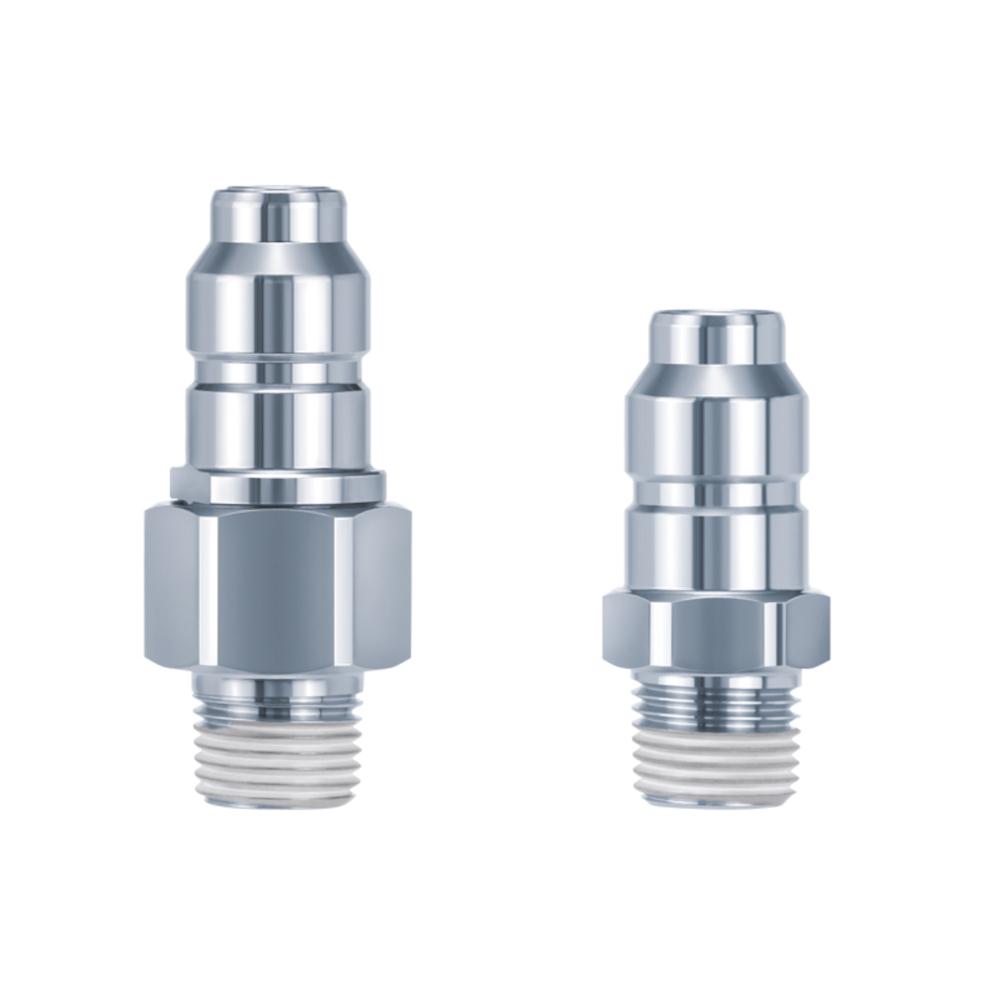

Quick coupling with plug KKA – with non-return valve – AG R 1/8" to 1 1/2" – size 1/8 to 1 1/4 – price per piece
| From € 31,08 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The KKAP-M quick coupling is used wherever backflow of the medium must be prevented when disconnecting the connection, e.g. in compressed air distributors, mobile devices or decentralised control circuits.
- It is ideal for safety-related applications with constant pressure levels.
- The quick coupling can also be used for water applications up to +40 °C (not frozen).
- It is particularly advantageous in systems with frequent line changes and limited installation space.
- The KKAP-M quick coupling is a compact, straight connection with external thread and integrated non-return function.
- The built-in non-return valve ensures a secure one-way flow direction.
- When disconnected, media backflow is automatically prevented, ideal for systems with permanent pressure build-up.
- The chemically nickel-plated brass housing, in combination with the NBR seal, provides a reliable seal for compressed air and water.
- The coupling is durable, robust and designed for frequent connection.
- Material - Stainless steel
- Ambient temperature - -5 to 150 °C
- Media temperature: -5 to 150 °C
- Operating pressure min. - -0.1 MPa
- Maximum operating pressure - 1 MPa
- Size - 1/8 to 1 1/4
- Male thread - R 1/8" to 1 1/2"
- Media - Compressed air, water
- Spanner size - 14 to 55 mm
- Length – 35.4 to 109.5 mm
- Weight - 15.4 to 936.3 g
- Price per item
Versions: (18)
Narrow down your selection
Size
External thread
Item No.: 973500060013
Type
| Size | 1/8 |
| External thread | R 1/8" |
Item No.: 973500060018
Type
| Size | 1/8 |
| External thread | R 1/4" |
Item No.: 973500060026
Type
| Size | 1/8 |
| External thread | R 3/8" |
Item No.: 973500060055
Type
| Size | 1/4 |
| External thread | R 1/4" |
Item No.: 973500060062
Type
| Size | 1/4 |
| External thread | R 3/8" |
Item No.: 973500060070
Type
| Size | 1/4 |
| External thread | R 1/2" |
Item No.: 973500060101
Type
| Size | 1/2 |
| External thread | R 3/8" |
Item No.: 973500060109
Type
| Size | 1/2 |
| External thread | R 1/2" |
Item No.: 973500060116
Type
| Size | 1/2 |
| External thread | R 3/4" |
Item No.: 973500444368
Type
| Size | 3/4 |
| External thread | R 1/2" |
Item No.: 973500444369
Type
| Size | 3/4 |
| External thread | R 3/4" |
Item No.: 973500444370
Type
| Size | 3/4 |
| External thread | R 1" |
Item No.: 973500444371
Type
| Size | 1 |
| External thread | R 3/4" |
Item No.: 973500444372
Type
| Size | 1 |
| External thread | R 1" |
Item No.: 973500444373
Type
| Size | 1 |
| External thread | R 1 1/4" |
Item No.: 973500444374
Type
| Size | 1 1/4 |
| External thread | R 1" |
Item No.: 973500444375
Type
| Size | 1 1/4 |
| External thread | R 1 1/4" |
Item No.: 973500444376
Type
| Size | 1 1/4 |
| External thread | R 1 1/2" |
