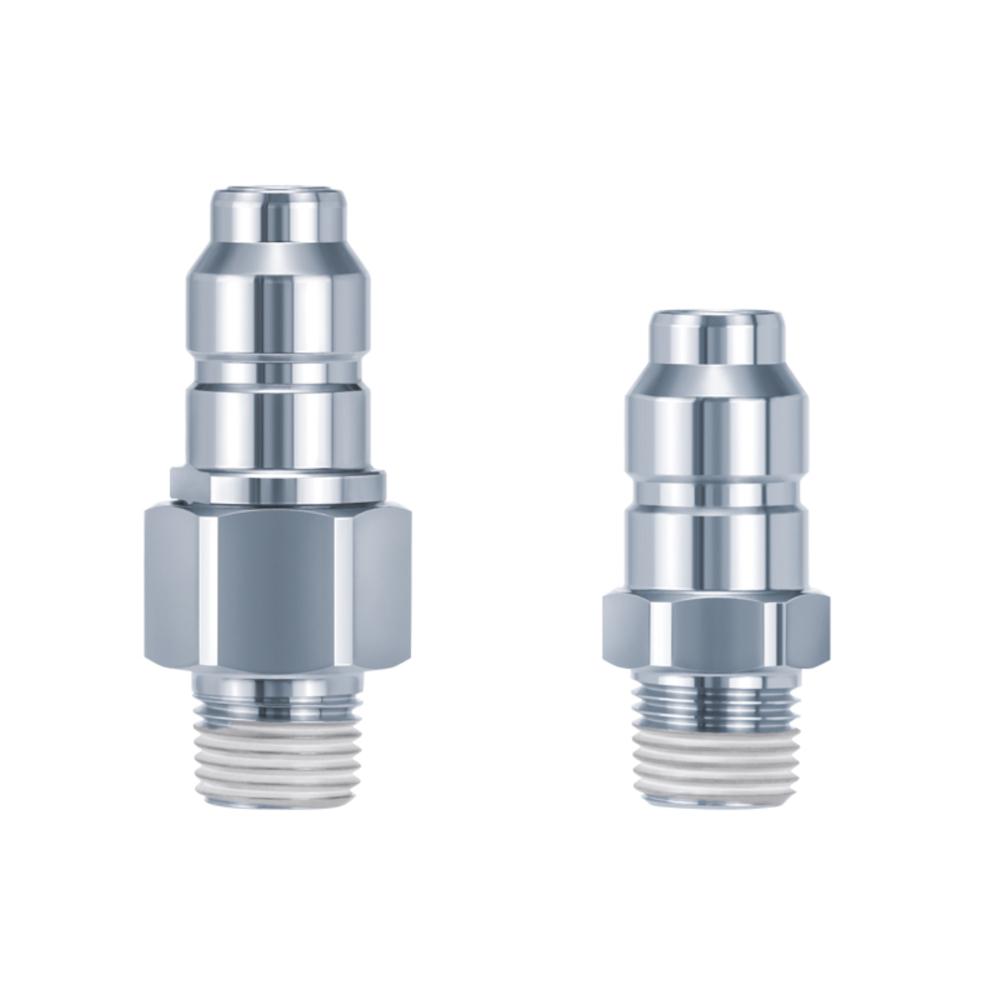

Quick coupling with plug KKA – without non-return valve – AG R 1/8" to 3/4" – size 1/8 to 1/2 – price per piece
| From € 17,61 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The KKAP-M-1 quick coupling is used in pneumatic systems where no check valve is required and flow in both directions should be unimpeded, such as in open air supply lines, vacuum applications or temporary test setups.
- It is ideal for applications where pressure must be quickly released or evenly distributed.
- The coupling is also suitable for use in water supply systems with temperatures up to 40 °C, provided that no backflow preventer is required.
- Thanks to its compact design, it can be easily integrated into confined installation spaces.
- The tool-free plug connection enables quick and easy maintenance work in industrial plants.
- The KKAP-M-1 quick coupling is a straight, lockable connection with external thread for pneumatic systems that require free flow in both directions.
- The plug enables a reliable, tool-free connection with the matching socket.
- By dispensing with a non-return valve, flow resistance is minimised and media circulation is not restricted.
- The chemically nickel-plated brass housing in combination with an NBR seal ensures high resistance to compressed air and water.
- The robust design is designed for frequent coupling and uncoupling.
- Material - Stainless steel
- Ambient temperature - -5 to 150 °C
- Media temperature: -5 to 150 °C
- Operating pressure min. - -0.1 MPa
- Maximum operating pressure - 1 MPa
- Size - 1/8 to 1/2
- External thread - R 1/8" to 3/4"
- Media - Compressed air, water
- Spanner size - 12 to 30 mm
- Length - 28.5 to 42.9 mm
- Weight - 9.8 to 98.7 g
- Price per item
Versions: (9)
Narrow down your selection
Size
External thread
Item No.: 973000223483
Type
| Size | 1/8 |
| External thread | R 1/8" |
Item No.: 973000060020
Type
| Size | 1/8 |
| External thread | R 1/4" |
Item No.: 973000060027
Type
| Size | 1/8 |
| External thread | R 3/8" |
Item No.: 973000060057
Type
| Size | 1/4 |
| External thread | R 1/4" |
Item No.: 973000060064
Type
| Size | 1/4 |
| External thread | R 3/8" |
Item No.: 973000060072
Type
| Size | 1/4 |
| External thread | R 1/2" |
Item No.: 973000060103
Type
| Size | 1/2 |
| External thread | R 3/8" |
Item No.: 973000060111
Type
| Size | 1/2 |
| External thread | R 1/2" |
Item No.: 973000060118
Type
| Size | 1/2 |
| External thread | R 3/4" |
